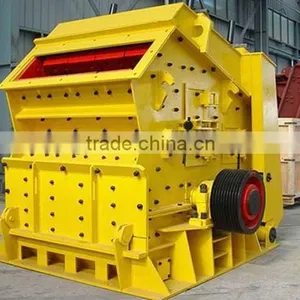

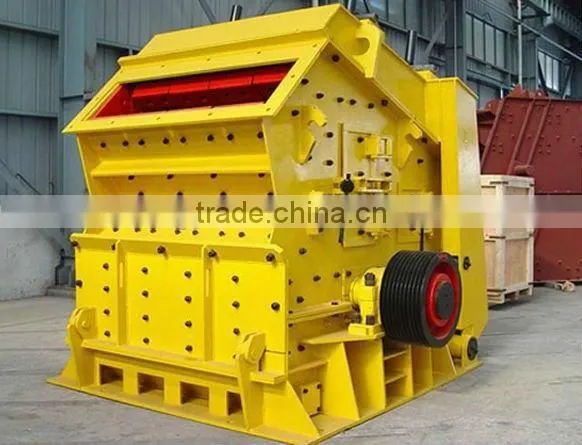

Top Quality Road Construction Impact Crusher

Specifications

multiple crushing cavity for even crushing; Low & big feed opening is good for large stone feeding; Long life blow bar and liner

 With absorbing advanced technology abroad, PF series impact crusher is newly designed and developed by our company. This type crusher can crush material like limestone, concrete and granite with compressive strength lower than 320Mpa. It is broadly used in aggregate production for highway, hydropower project, mine site, railway and construction industry due to its excellent behavior and performance.



The blow bar and liner are made by high chrome which make them have longer servie life. Sizing plate can make the outputs small size and cubic shape without inner stripe. The outputs are adjustable according to actual demands.



Model	Rotor Spec(mm)	Feed Opening Size(mm)	Max Feed Edge(mm)	Capacity  (t/h)	Motor Power(kw)	Weight  (t)	Dimensions  (L×W×H) (mm
PF-1007	1000×700	400×730	300	30-70	45	12	2330×1660×2300
PF-1010	1000×1050	400×1080	350	50-90	55	15	2370×1700×2390
PF-1210	1250×1050	400×1080	350	70-130	110	17.7	2680×2160×2800
PF-1214	1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF-1315	1320×1500	860×1520	500	130-250	220	27	3180×2720×2620
