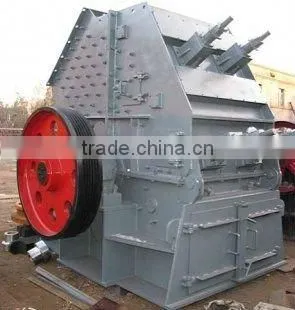

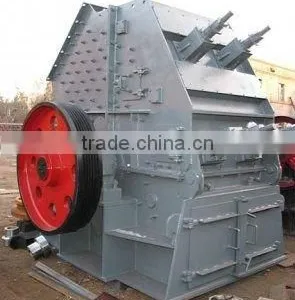

Help CenterDPX Hammer Crusher for Soft Material Crushing
Related Products
-
Top Quality Road Construction Impact CrusherNegotiableMOQ: 1 Set -
PC400x300 Hammer Crusher for Concrete Lump CrushingUS$ 1,700 - 1,800MOQ: 1 Set
-
Hot Arc Crushing Chamber PFC Series Engergy-Saving Composite Fine CrusherUS$ 12,500 - 13,000MOQ: 1 Set
-
Hot Engergy-Saving Composite Fine Crusher PFC50NegotiableMOQ: 1 Set
-
Hot Slag Breaking Double Roller Crusher From China FactoryUS$ 13,350 - 13,500MOQ: 1 Set
Specifications
Three camber type crushing cavity to hit material moe frequently; Easily to adjust the gap between impact plate & hammer headDPX series single stage hammer crusher is one of our leading products. It is mainly used for crushing raw materials with compressive strength less than 150MPa such as limestone, marl, sandstone, gypsum, coal & etc.
Features & Benefits:
1.Tri-cavity curved designed, which increases the breaking times of materials. The “rock-on-rock” principle reduce the friction, wear of hammers and also consumption of energy.
2. High crushing ratio , small granularity (≤8mm)
3. Energy saving is over 40% than multi-stage crushers.
4. Long service life, lower cost of operation, maintenance .
5. Easy adjusting of discharging grid plate.
Parameters
Model |
Feed Size |
Discharge Size |
Capacity |
Hammer Life(million tons/set) |
Match Power(kw) |
DPX-15 |
≤500 |
apply to stone production line: d=5-40 adjustable |
15-35 |
1-2 |
30-45 |
DPX-35 |
≤700 |
35-60 |
3-5 |
55-75 |
|
DPX-65 |
≤800 |
60-90 |
5-8 |
90-132 |
|
DPX-90 |
≤900 |
90-125 |
8-12 |
160-200 |
|
DPX-125 |
≤1100 |
apply to stone production line: d=5-40 adjustable |
120-150 |
13-15 |
200-240 |
DPX-150 |
150-180 |
15-18 |
280-315 |
||
DPX-180 |
180-250 |
18-22 |
355-380 |
||
DPX-250 |
≤1300 |
250-400 |
22-28 |
560-630 |
|
DPX-300 |
450-650 |
30-40 |
710-800 |
