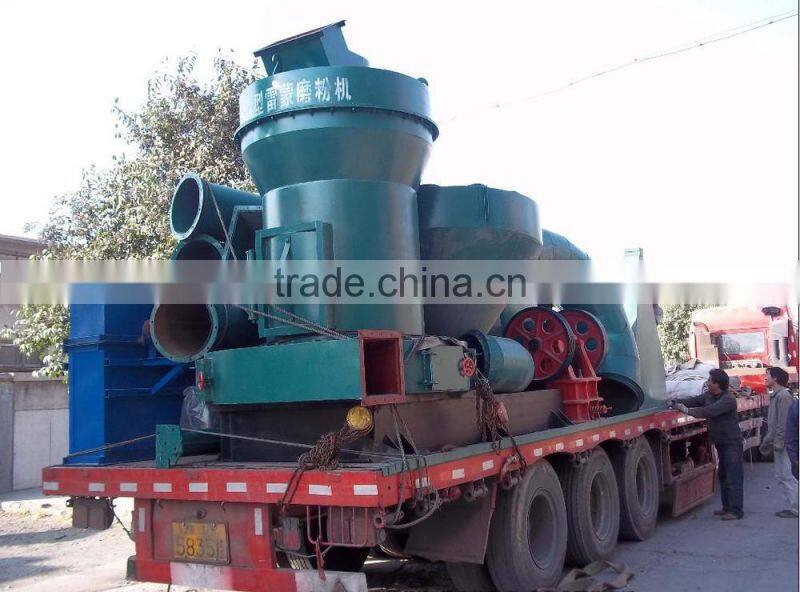

Help CenterChina Cost-effective Ore Raymond Mill Grinder for Selling
Related Products
Specifications
Mill for Very Fine PowderVertical grinding
wide application for many kinds ore
low maintenance
smooth drive, reliable work
Based on sound quality products and good sales service, Unique company supplies Raymond mill which is suitable for grinding barite, calcite, potash feldspar, talcum, marble, limestone, ceramics, etc.
Raymond mill is a calssic type mill, which can be used to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with raw material hardness less than 7.3 in Moh’s scale and humidity less than 6%.
Features
Three-dimensional structure
Land-saving
The screen-passing rate can reach to 99%
The transmission is steady and reliable
The transmission device of mainframe adopts airtight gear case and zonal wheel
Centralized control for the electric system, convenient to operate.
Model with spec
| Model | No. of Roller (Pcs) | Roller Diameter ×Height (mm) | Ring Inn Diameter ×Height (mm) | Max. Feeding Size (mm) | Fineness of finished product (mm) | Mainframe Power (KW) | Overall Dimension (L×W×H) (MM) | ||
| 0.125 | 0.075 | 0.044 | |||||||
| Capacity(t/h) | |||||||||
| 3R2115 | 3 | 210×150 | 630×150 | <15 | 1.2-1.8 | 0.6-1.2 | 0.6-1.0 | 15 | 4500×2800×5800 |
| 3R2615 | 3 | 260×150 | 780×150 | 15-20 | 1.8-2.5 | 1.2-1.8 | 0.8-1.2 | 18.5 | 5650×3305×5950 |
| 3R2715 | 3 | 270×150 | 830×150 | 15-20 | 2.3-2.8 | 1.8-2.8 | 0.9-1.7 | 22 | 8000×3500×4900 |
| 3R3016 | 3 | 300×160 | 880×160 | 15-20 | 2.6-4 | 1.9-2.6 | 1.0-1.9 | 30 | 6500×4100×5200 |
| 4R3216 | 4 | 320×160 | 970×160 | 20-25 | 3.2-4.5 | 2.4-3.1 | 1.8-2.5 | 37 | 9900×5800×10580 |
Send Inquiry to This Supplier
