High Capacity Low Power Impact Crusher with Even Product Size for Sale
- 68 Set / Sets per Month
- Qingdao Shanghai etc.
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Impact Crusher | Application: | Mining |
Motor Type: | AC Motor | Power(W): | 55kw | Capacity(t/h): | 30-50tph |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | PF |
Dimension(L*W*H): | 2400X1558X2660 | Certification: | ISO CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

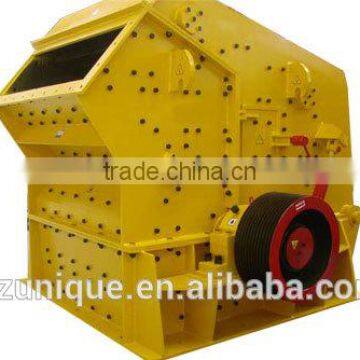

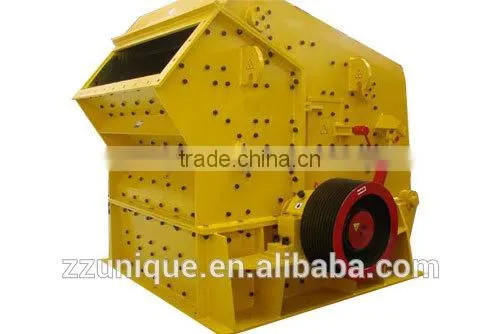

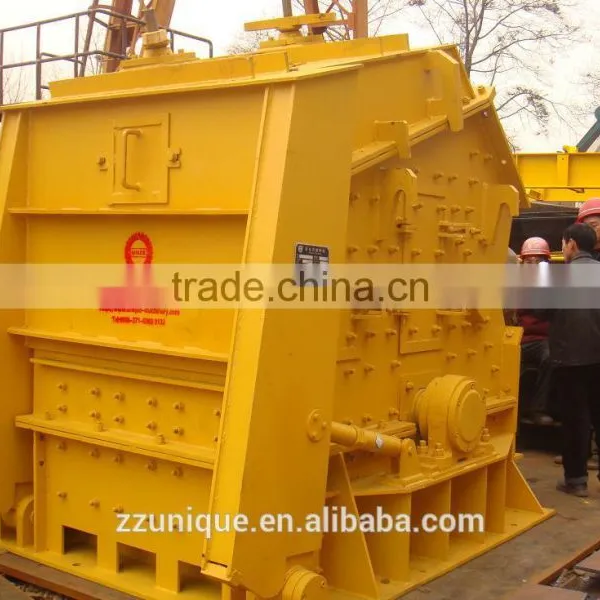

High Capacity Low Power Impact Crusher with Even Product Size for Sale
Features of Impact Crusher:
Impact crusher is mainly used in secondary crushing. It can crush various rocks, high efficiency, easy maintenance, and cubic shape of the products. Impact crusher is widely used in mining, highway, and construction.
Working Principle of Impact Crusher:
The electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
Technical Specification of Impact Crusher:
Model
| Max Feed Edge(mm)
| Capacity(t/h)
| Motor Power(kw)
| Weight(t)
| Dimensions(L×W×H) (mm)
|
PF-1007 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
PF-1010 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
PF-1210 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
PF-1214 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
PF-1315 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
Features
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Working Principle
The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.
Zhengzhou Unique Industrial Equipment Co., Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.
Q1.Can I visit your factory?
Yes, Many domestic and international customers visit our factory every year
Q2.Do you supply spare parts and after-sale service?
Yes, we supply and we havea professional after-sale service team to promptly and thoroughly solve your problems.
Q3.Do you provide beneficiation flow chart?
Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4.Can you test our samples?
Yes. You can send your samples to us for test and analysis.
Q5. Have you made the whole ore dressing lines?
Yes. We have made several large ore dressing lines at home and abroad.
Our Advantages---
A.We have over 20 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
