2015 hot sold in Africa crawler type tracked drilling rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao or other China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Model Number	KY100
Usage	Other, drilling borehole for quarry, mining and construction	Dimension(LWH)	4100x2030x2020mm
Weight	3.2t	Certification	ISO
Warranty	15 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

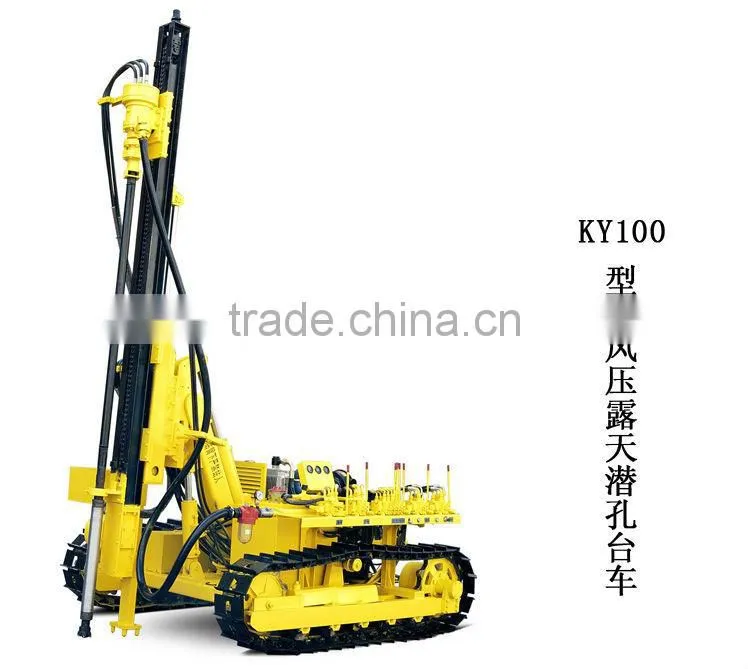

Specifications of Crawler Drill KY100

Rock Rigidity: f=6-20

Dia. of hole: 80-105 mm

Optimum Drilling Depth: 20 m

Working Pressure: 0.5-0.7 Mpa

Air Consumption: ≥10m³/min.

Rotation Speed: 0-65 rpm

Torque: 983 N•m

Lift power: 15KN

Rod specification: 60x2000 mm

Gradeability: 30°

Ground Clearance: 254 mm

Walking Speed: 2.0 Km/h

Dimensions: 4100x2030x2020mm

Weight: 3200 kg

Drive System: YC2108 Engine (33Kw, 2200r/min)

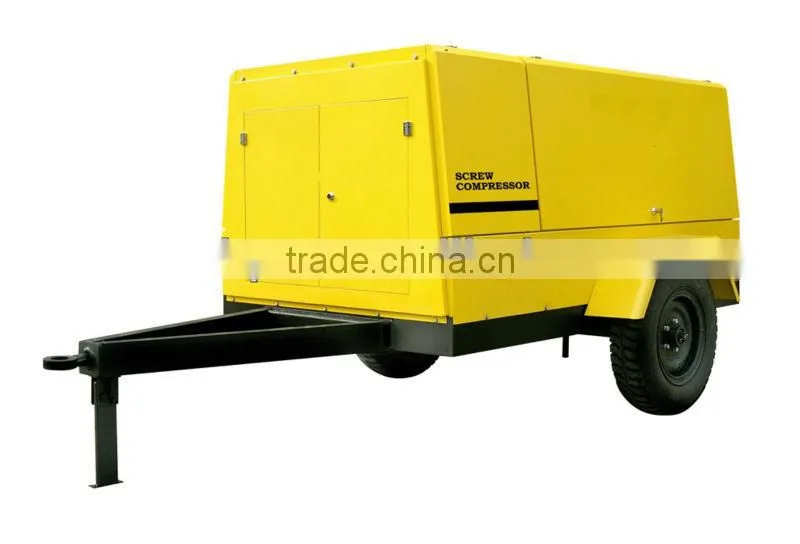

Recommended Compressor: LGCY12/10

Model: LGCY12/10

Capacity: 12 m³/min.(424cfm)

Working Pressure: 1.0 Mpa (145psig)

Fluid capacity: 35L

Compression stage: single

Diesel Engine: YC6B150Z-K20,110KW(150HP)

Dimensions: 3970x1940x2350 mm

Total Weight: 2380 kg
