Low Cost Small Electrical Rock Drill KQD70

Zhengzhou Unique Industrial Equipment Co., Ltd.
Low Cost Small Electrical Rock Drill KQD70 thumbnail-1
Low Cost Small Electrical Rock Drill KQD70 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Model Number KQD70
Usage Ore
Voltage 380V
Power(W) 3kw
Certification ISO
Warranty 15 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

electrical rock drill KQD70
Borehole drilling machine
Small size, easy to transport
Energy-efficient
low cost

Low cost small electrical rock drill KQD70



Electric Down-the-hole drilling rig KQD70 has the following features



· Using the electrical motor as rotating force, economy, efficiency, energy saving.



· Using cycloid reducer, big rotary torque, high drilling efficiency.



· Novel overload protection, so that rig can have stable and reliable operation.





Specifications of drilling machine



Hole dia.(mm)

60-80

Hole depth(m)

≥15

Rotation speed(rpm)

0-125

Working pressure(MPa)

0.5~0.7

Drill rod spec.(mm)

40x1000

Air consumption(m^3/min)

≥3.5

Lift power(N)

4000

Electrical motor

(3KW)





 Specification of screw compressor

Working pressure(MPa)

0.6

Air delivery (m3/min.)

4.5

Electrical motor power (kw)

22

Dimensions (L*W*H) (mm)

1600*820*1200

Weight (kg)

630

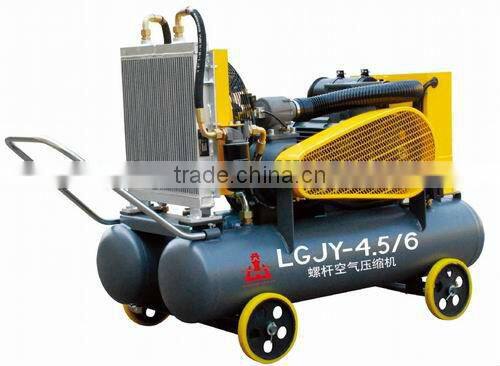

It is powered by LGJY4.5/6 mobile screw compressor. Here are the photos for reference.

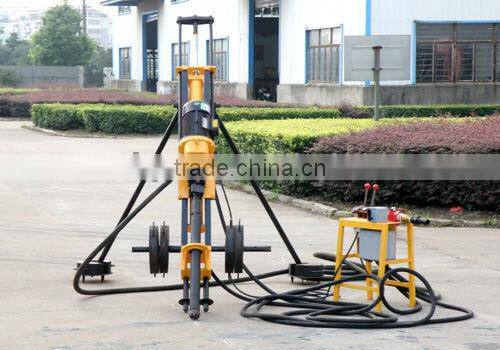

Low cost small electrical rock drill KQD70



Low cost small electrical rock drill KQD70
