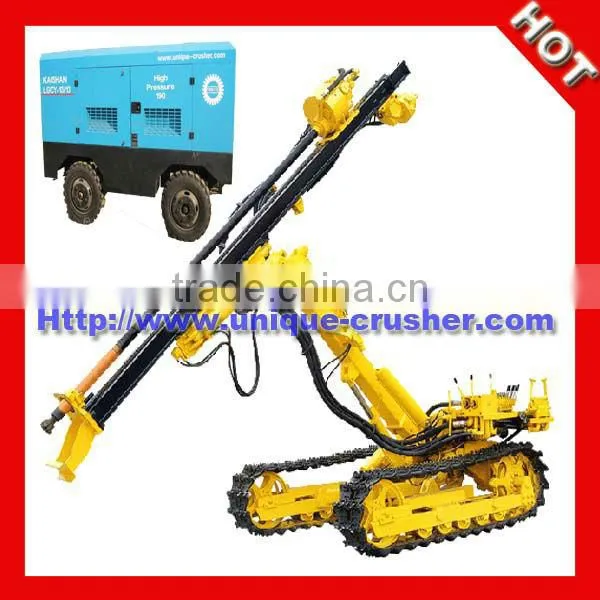

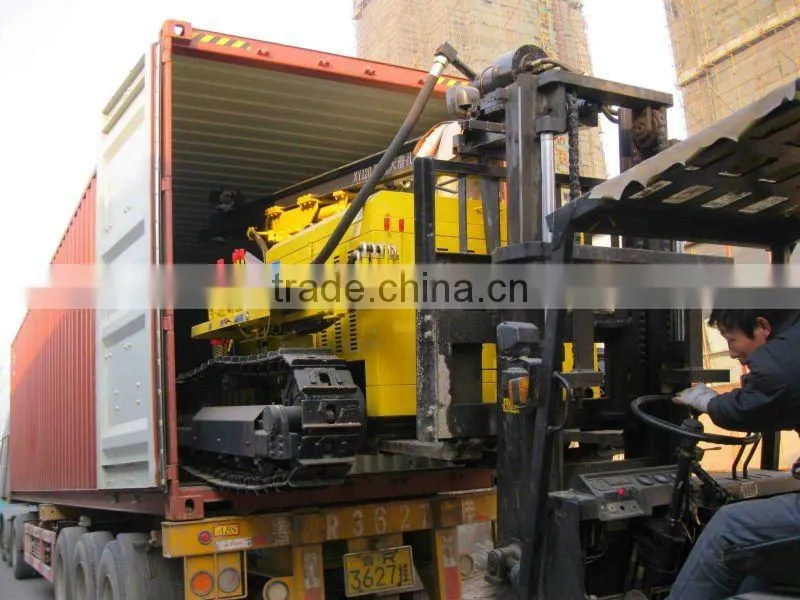

KG920A blasthole drilling rig

Specifications

KG920A blasthole drilling rig:
1. Safe and stable travelling system
2. New drilling boom

KG920A blasthole drilling rig

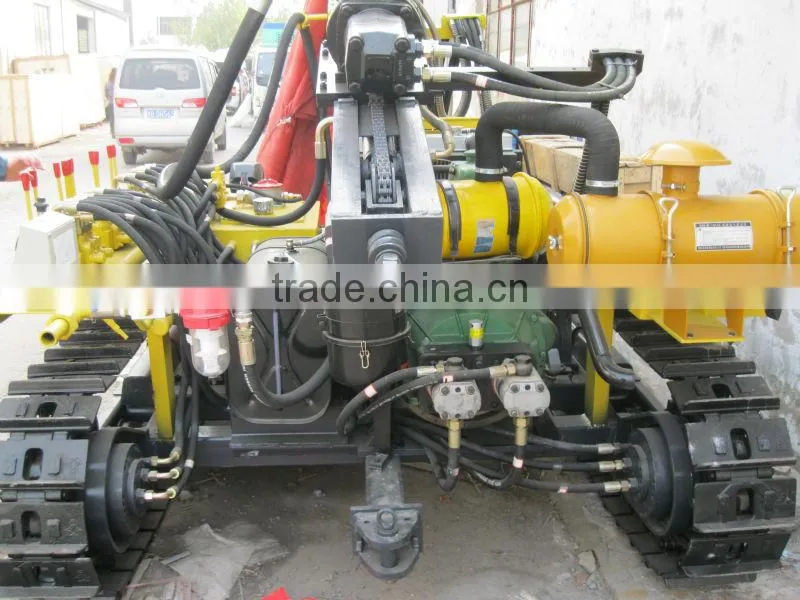

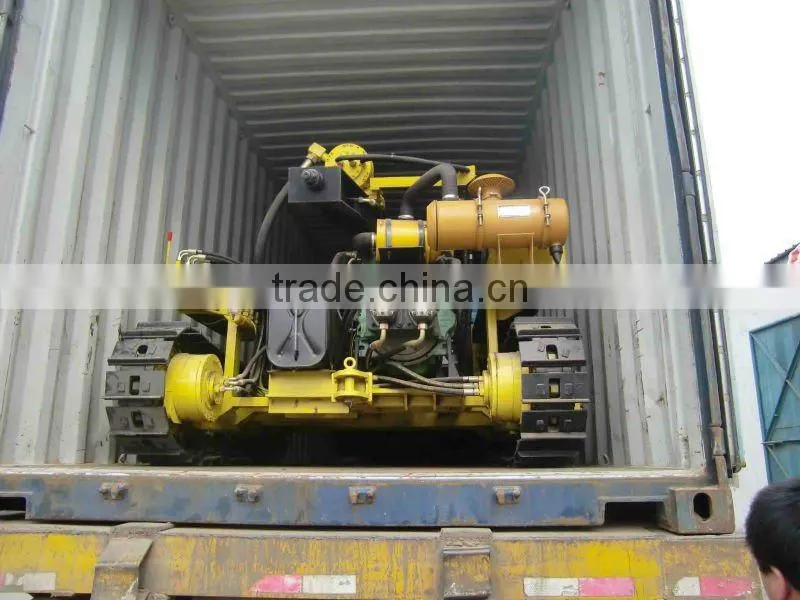

Powerful and Reliable Engine of KG920A blasthole drilling rig
1. Adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter two-stage filter. That strengthens the crawler drilling rig’s adaptability to severe environment and lengthened the diesel engine’s service life.

Adjustable Boom of KG920A blasthole drilling rig
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder. That enlarges the drilling hole’s range and improve the machine’s adaptability.

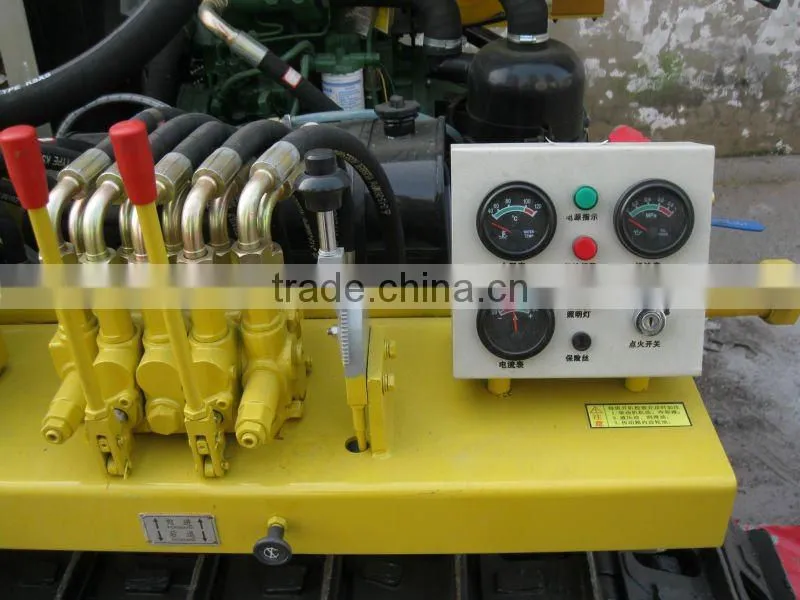

Reliable hydraulic system of KG920A blasthole drilling rig
1. Adopt special hydraulic components. That improves the system’s stability and reliability.
2. Install oil liquid cooling device, to eliminate the exothermic hydraulic oil’s influence to the system
3. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.
4. Adopt gear transmission and soft connection, possessing compact structure and stable operation.

Humanized Design of KG920A blasthole drilling rig
1. Adapt swing-beam type travelling control mechanism. It can be operated at the side or back position, adapt to travelling on the mountain road.
2. Equipped with thoughtfully designed canopy, easy to maintain.

Specification of KG920A   blasthole drilling rig

Specification	KY120
Rock hardness	F=6-20
Hole diameter (mm)	105-120
Drill depth (m)	25
Pressure (Mpa)	1.0-1.4
Air consumption (M3/min)	≥13
Rotating speed (Km/h)	0-65
Lifting capacity (KN)	17
Drill rod specification (mm)	64×3000 /76×3000
Gradeability	30°
Ground clearance (mm)	254
Walking speed (km/h)	2.0
Drill arm rising angles (°)	-35~+60
Drill arm swing angle (°)	-
Carriage swing angle(°)	-11.5~+36.5
Carriage pitch angle (°)	-118.5~+23.5
Carriage Compensation (mm)	900
Overall Dimension (L*W*H)(mm)	5100×2030×2020
Total Weight (Kg)	3300
Note:	Pneumatic-hydraulic



Comparison between KY120 and KG920A air track drill for limestone



	KY120	KG 920A	Advantages
Travel parts	QJM Motor (Direct connection)	Mortar+Reducer structure	Reduce pressure of motor, improve the service life of the motor
Travel pressure	14-16 Mpa	11 Mpa
Drill boom		New type drills boom	Simultaneously drill horizontal hole and vertical hole
Hydraulic system	19.2 pump	30 pump,big diameters, new type valve groups, new type joint.	Flow is increased, resistance is reduced.
Air control system	Ball valve	side valve typec oncussion relief valve	Easy operation
Rotation speed	55 r/min(1700)	83 r/min (diesel engine 1700r/min) 107 r/min(diesel engine 2200 r/min)	Improved by 50%
Advance speed	336mm/s	450mm/s	Improved by 33%



Corresponding Mobile Screw Air Compressor



Model	Work pressure (Mpa)	Capacity (m3/min)	Diesel engine (hp)	Weight (kg)	Dimension (mm)
LGCY-13/13	1.3	13	Cummins 6BTA5.9-C180 (132kw)	3500	3600*1900*2200
LGCY-15/13	1.5	15	YuChai YC6A-240-20 or steyr  WD415.23	3500	3600*1900*2200



OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill

More information about our  blasthole drilling rig, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
