China Hydraulic & Pneumatic Cheap Crawler Drill With Lower Budget

China Hydraulic & Pneumatic Cheap Crawler Drill With Lower Budget thumbnail-1
China Hydraulic & Pneumatic Cheap Crawler Drill With Lower Budget photo-1
US$ 9,999 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Unique Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Model Number KY100J
Usage Other, drilling borehole for quarry, mining and construction
Dimension(L*W*H) 4100x2030x2020
Weight 3.1t
Certification ISO
Warranty 15 months
After-sales Service Provided Engineers available to service machinery overseas

China Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget



China Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget



It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

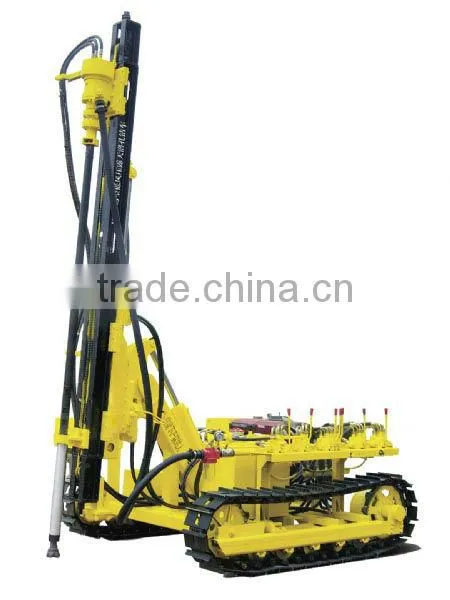

Specifications of Crawler Drill KY100J

Rock Rigidity: f=6-20

Dia. of hole: 80-105 mm

Optimum Drilling Depth: 20 m

Working Pressure: 0.5-0.7 Mpa

Air Consumption: ≥10m3/min.

Rotation Speed: 0-65 rpm

Torque: 983 N•m

Lift power: 15KN

Rod specification: 60x2000 mm

Gradeability: 30°

Ground Clearance: 254 mm

Walking Speed: 2.0 Km/h

Dimensions: 4100x2030x2020mm

Weight: 3100 kg

Drive System: ZS1125GM(20.2Kw 2200r/min)



China Hydraulic & Pneumatic Cheap Crawler Drill with Lower BudgetChina Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget

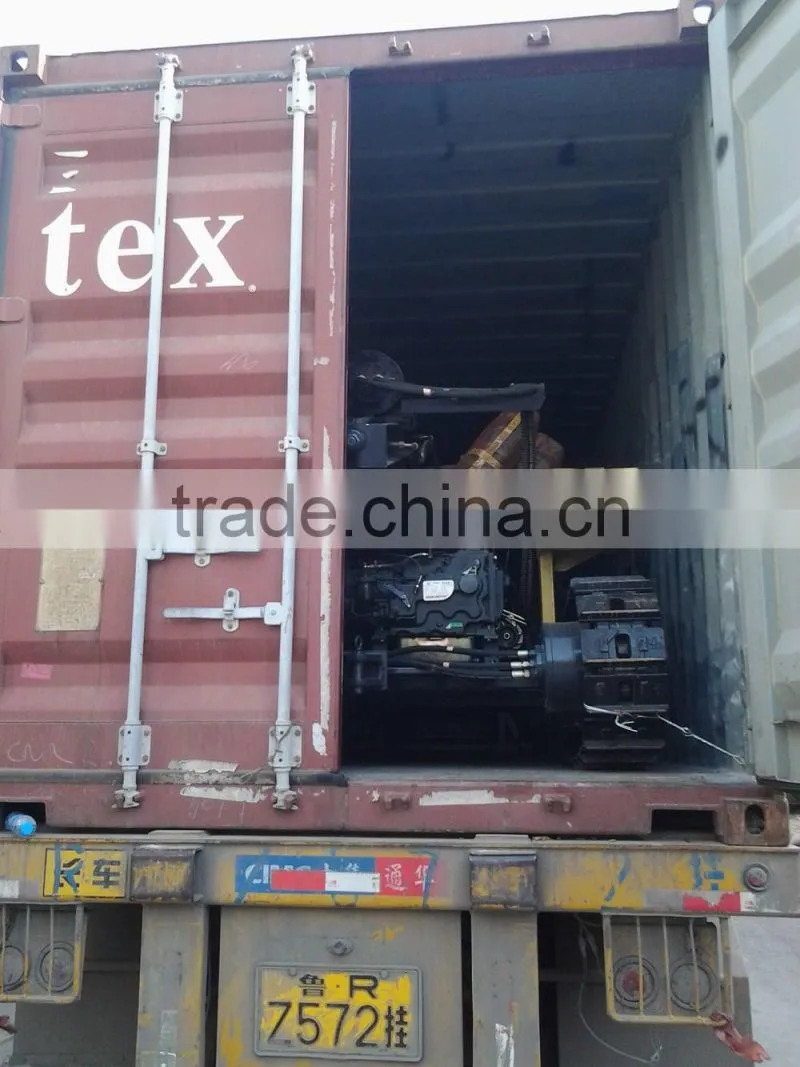

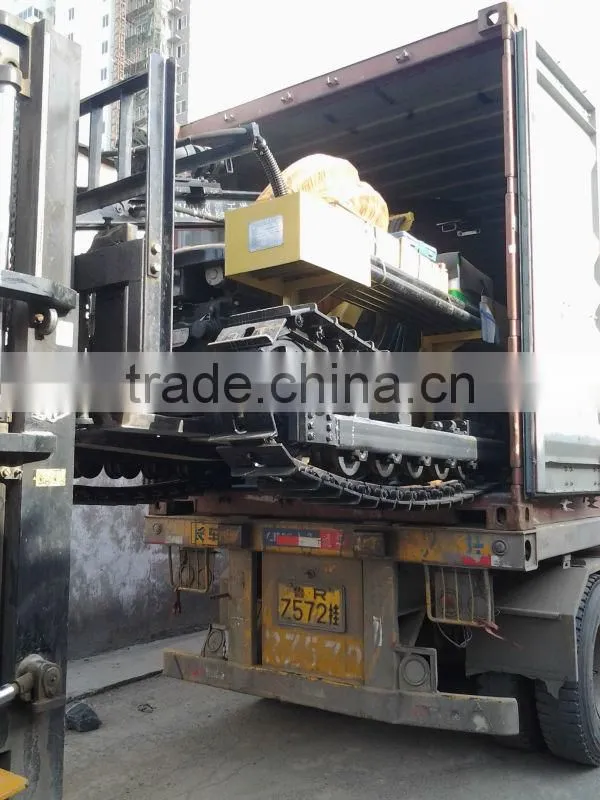

 Loading drilling machine for Nigeria



China Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget



China Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget



China Hydraulic & Pneumatic Cheap Crawler Drill with Lower Budget
