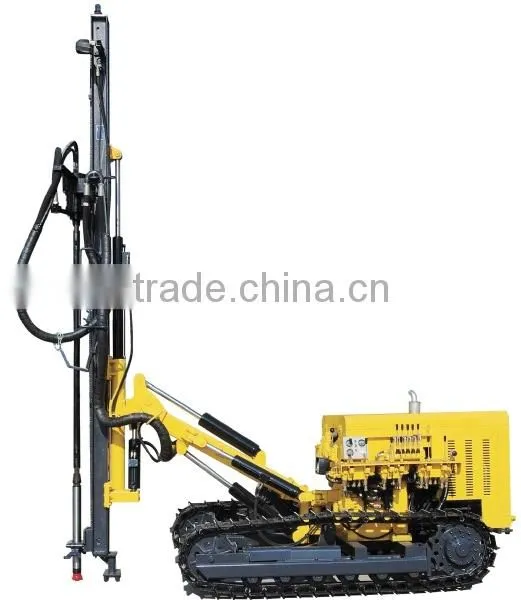

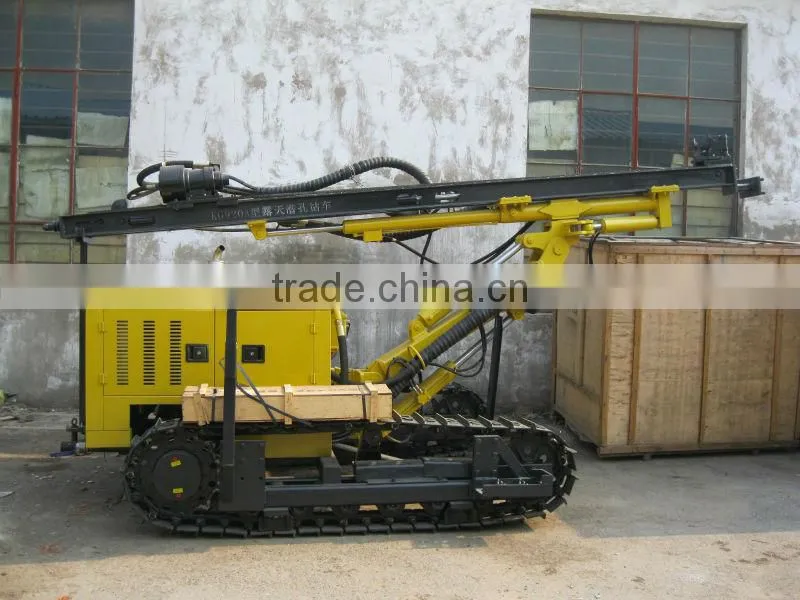

China Top Quality New Version Granite Stone Drilling Rig for Blast

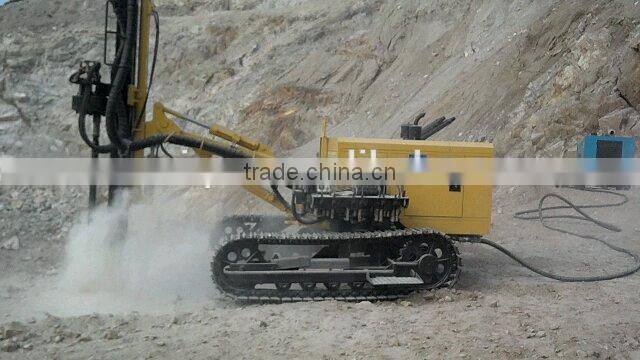

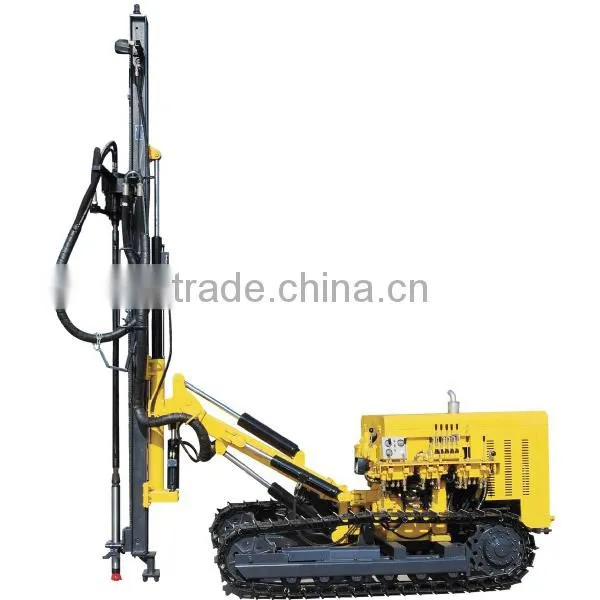

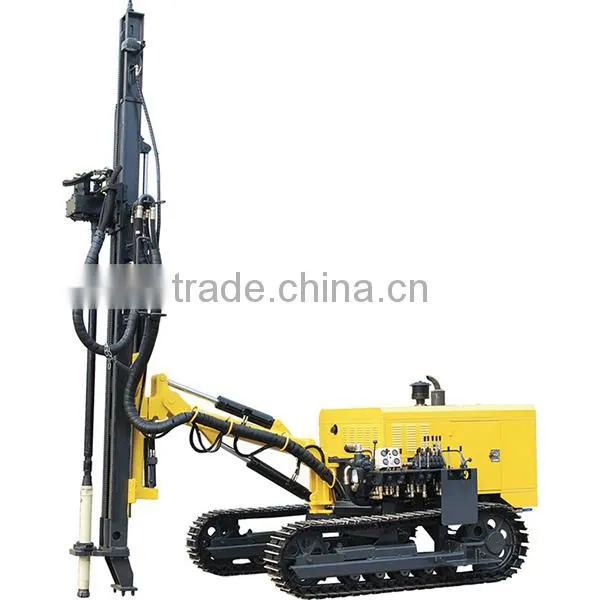

Crawler Drill, also known as Blast Hole Drill Rig or Crawler Drilling Rig (in some regions it may be called Wagon Drill or Drill Wagon), is broadly used in the industries of mining, quarry & construction.

It is primarily used to drill holes on surface or do “drill & blast” tunneling tasks through solid rocks. Under the guidance of a geologist, the drill rig operator can drill blast holes up to 100 feet deep or more at exact coordinates to accept explosive charges.

Usually speaking, the blast holes’ diameter is ranging from 80-140mm and 20m deep hole is workable for blasting. While operating, the crawler drill works with a separated air compressor or built-in one.

Spec. info of drilling machine

Rock Rigidity: f=6-20

Dia. of hole: 80-115 mm

Optimum Drilling Depth: 25 m

Working Pressure: 1.0-1.7 Mpa

Air Consumption: 9-16m³/min.

Rotation Speed: 0-107rpm

Rotation Torque: 1400 N•m

Lift power: 15000N

Method of propulsion: hydrocylinder-chain

Propulsion stroke: 3000mm

Walking speed: 0-1.8km/h

Grade ability: 30°

Ground clearance: 290mm

Weight: 4000kg

Dimensions: 4400x2200x2050mm

Drive System: YC 2108 Engine (33kw, 2200rpm)

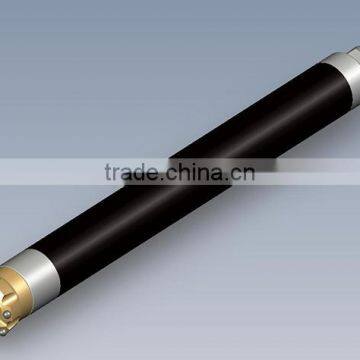

Drill rod: φ64x3000mm

Sliding carriage pitch angle: Blow 135°, elevation5°, total 145°

Sliding carriage swing angle: Left100°, righ45°, total 145°

Drill boom pitch angle: Blow 50°, elevation25°, total 75°

Drill boom swing angle: Left44°, right45°, total 89°

Sliding carriage compensation length:900mm

Recommended Compressor LGCY-13/13

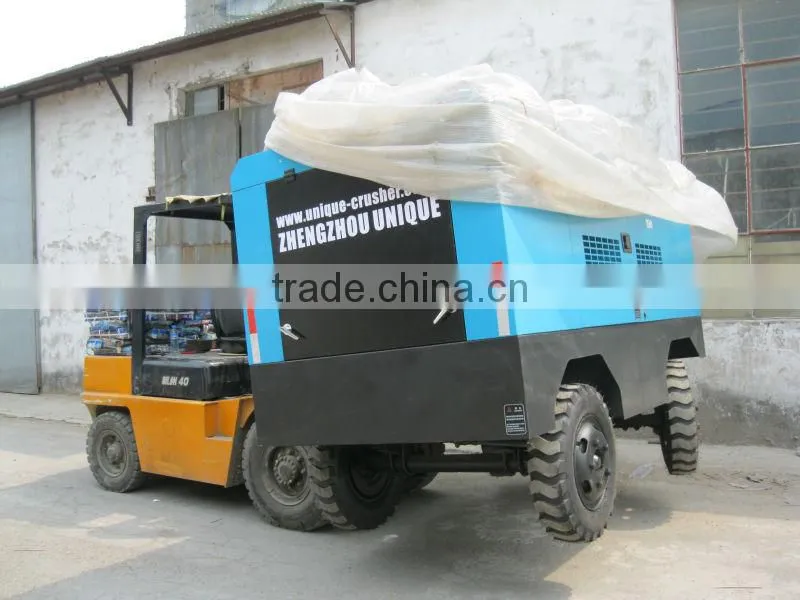

Spec. info of screw compressor

Capacity: 13m³/min.

Working pressure: 1.3Mpa (13bar)

Diesel engine: Cummins 6BTA5.9-C180

Dimensions: 3600x1900x2200 mm

Weight: 3500 kg
