Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Brand Name	Kaishan
Model Number	KY100	Usage	Ore
Power(W)	33Kw	Dimension(LWH)	4100x2030x2020mm
Weight	3200kg	Certification	ISO
Warranty	15 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

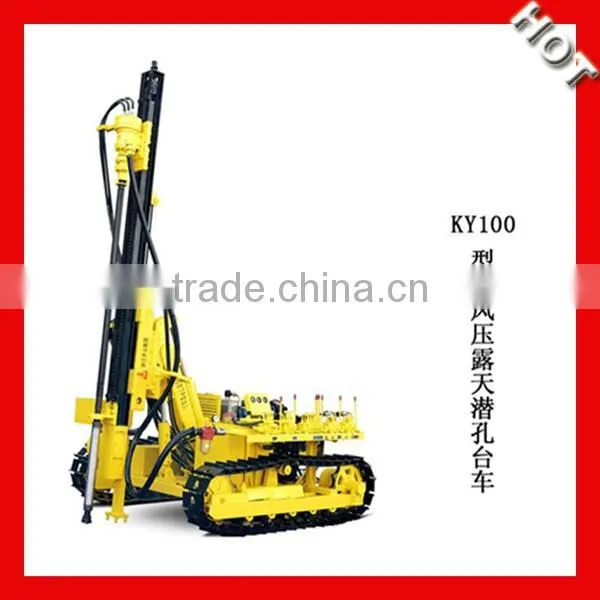

Always Hot Sold in Africa Granite Crawler Drill Rig KY100 for Blast Hole Boring

Crawler Drill KY100 Matched Screw Compressor LGCY-12/10

Crawler Drill, also known as Blast Hole Drill Rig or Crawler Drilling Rig (in some regions it may be called Wagon Drill or Drill Wagon), is broadly used in the industries of mining, quarry & construction.

It is primarily used to drill holes on surface or do “drill & blast” tunneling tasks through solid rocks. Under the guidance of a geologist, the drill rig operator can drill blast holes up to 100 feet deep or more at exact coordinates to accept explosive charges.

Usually speaking, the blast holes’ diameter is ranging from 80-140mm and 20m deep hole is workable for blasting. While operating, the crawler drill works with a separated air compressor or built-in one.

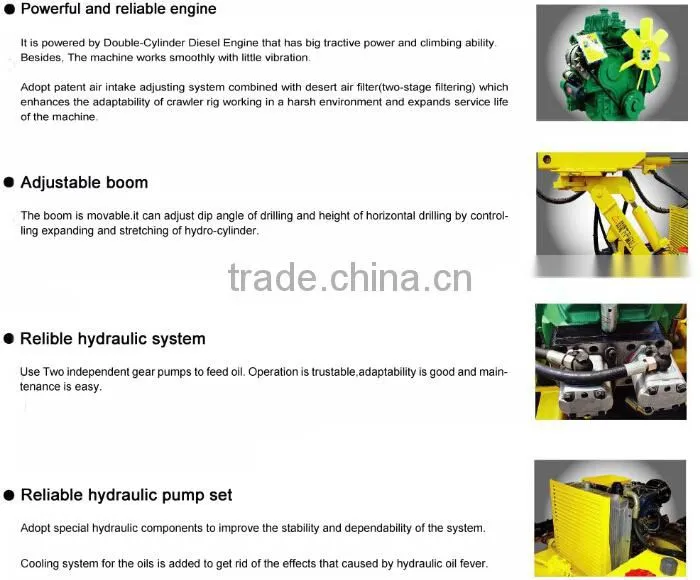

Features

Specification

Model	KY100
Rock hardness	F=6-20
Hole diameter (mm)	80-105
Drill depth (m)	20
Pressure (Mpa)	0.5-0.7
Air consumption (M3/min)	≥12
Rotating speed (Km/h)	0-65
Lifting capacity (KN)	15
Drill rod specification (mm)	60×2000
Gradeability	30°
Ground clearance (mm)	254
Walking speed (km/h)	2.0
Drill arm rising angles (°)	-35~+60
Drill arm swing angle (°)	-
Carriage swing angle(°)	-11.5~36.5
Carriage pitch angle (°)	-118.5~+23.5
Carriage Compensation (mm)	900
Overall Dimension (LWH)(mm)	4100×2030×2020
Total Weight (Kg)	3200
Note:	Pneumatic-hydraulic

Loading crawler drill & screw compressor for Nigeria

The below crawler drill is for Benin customer

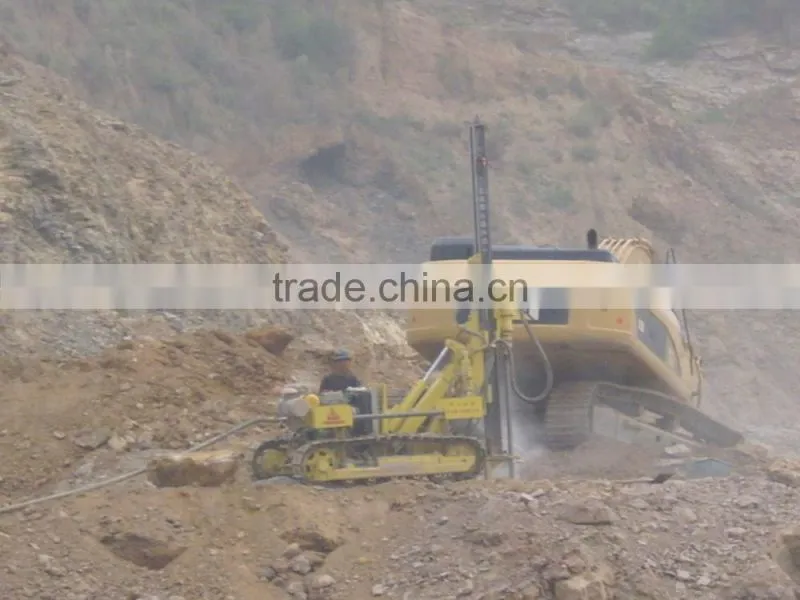

Working in the Job Site
