Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > KG910B Stone Drilling Machine for Blast Hole

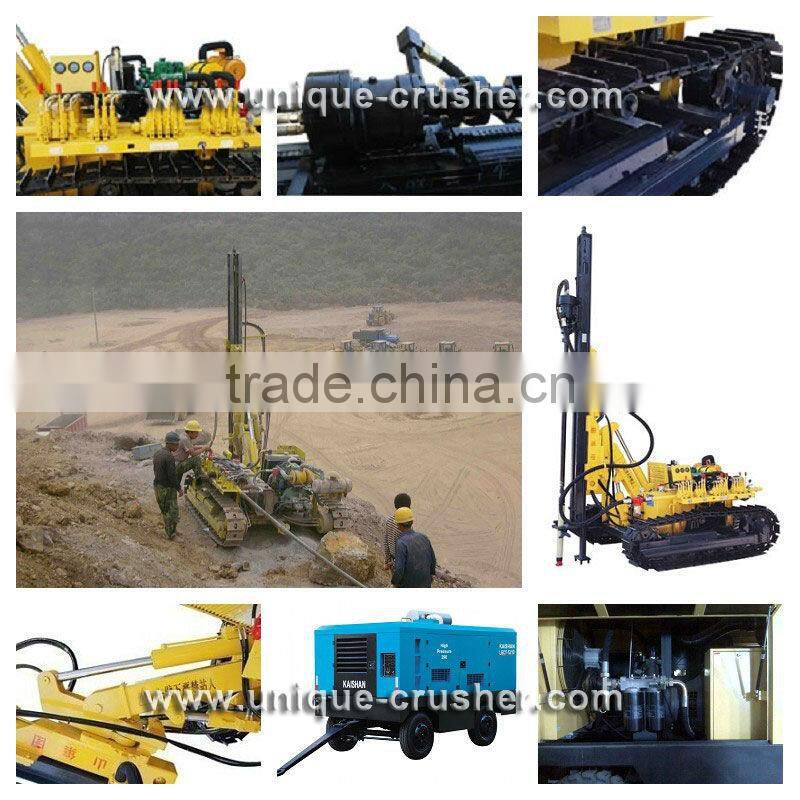

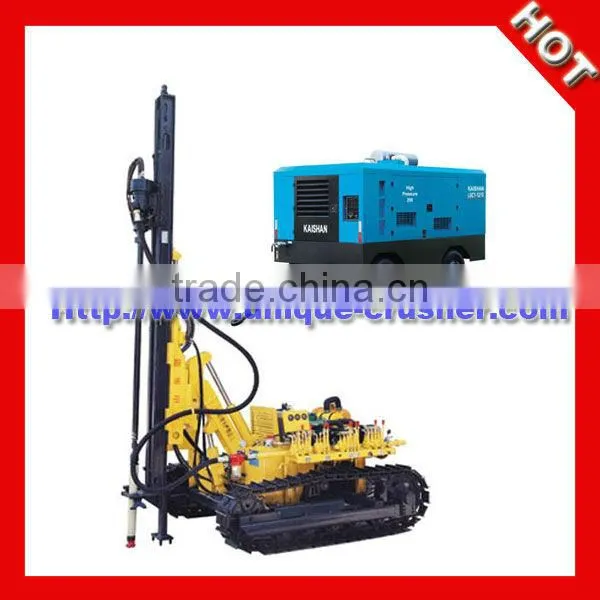

KG910B Stone Drilling Machine for Blast Hole

Name: KG910B Stone Drilling Machine for Blast Hole
Brand: UNIQUE
SKU: 143744030
Availability: InStock

KG910B Stone Drilling Machine for Blast Hole thumbnail-1

KG910B Stone Drilling Machine for Blast Hole photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Zhengzhou Unique Industrial Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin Shanghai Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Brand Name UNIQUE

Usage Other, blast hole drill

Certification TUVRheinland CE, ISO9001:2008

Warranty More than 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

KG910B Stone Drilling Machine for Blast Hole:
1.Quick lifting valve group
2.Gerotor motor
3.Rotation speed:105r/min

KG910B Stone Drilling Machine for Blast Hole

Low wind pressure open-air Drill Wagon for Blast Hole .

It is mainly used for drilling blast hole.

Advantages of KG910B Stone Drilling Machine for Blast Hole
1. Adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2. Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder. That enlarges the drilling hole’s range and improve the machine’s adaptability.
3. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.

4. Adopt gear transmission and soft connection, possessing compact structure and stable operation.

Specification of KG910B Stone Drilling Machine for Blast Hole

Model Specification	KG910B
Improved by:	KY100
Rock hardness	F=6-20
Hole diameter(mm)	80-105
Drill depth(m)	25
Pressure (Mpa)	0.7-1.0
Air consumption (M³/min)	9-13
Rotating speed (Km/h)	0-65
Lifting capacity (KN)	15
Drill rod specification(mm)	60×2000
Gradeability	30°
Ground clearance(mm)	254
Walking speed (km/h)	2.0
Drill arm rising angles (°)	-35~+60
Drill arm swing angle (°)	-
Carriage swing angle(°)	-11.5~36.5
Carriage pitch angle (°)	-118.5~+23.5
Carriage Compensation(mm)	900
Overall Dimension (LWH)(mm)	4100×2030 ×2020
Total Weight (Kg)	3300
Note:	Pneumatic -hydraulic

Advantages of KG910B Stone Drilling Machine for Blast Hole

	KY100	KG 910B	Advantages
Driving force	YC2100	YC2108
Travel parts	QJM Motor (Direct connection)	Mortar+Reducer structure	Reduce pressure of motor, improve the service life of the motor
Travel pressure	14-16 Mpa	11 Mpa
Hydraulic system	16 Pump	25 Pump ,quick rotating/quick lifting valve group, new type flow dividing valve	Increase the flow
Rotation motor	Steel ball motor	Gerotor motor	Prolong motor’s service life
Rotation speed	70 r/min(1700)	105r/min (diesel engine 1700r/min) 120r/min (diesel engine 2200 r/min)	Increased by 50%
Advance speed	280mm/s	390mm/s	Increased by 40%

Mobile Screw Air Compressor

Model	Work pressure (Mpa)	Capacity (m³/min)	Diesel engine (hp)	Weight (kg)	Dimension (mm)
LGCY-12/10	1.0	12	YuChai YC6108ZG (110KW) or Cummins 4BTA3.9-C125 (93kw)	3500	360019002200
LGCY-13/13	1.3	13	Cummins 6BTA5.9-C180 (132kw)
LGCY-15/13	1.5	15	YuChai YC6A-240-20 or steyr WD415.23
LGCY-18/17	1.7	17	Cummins 6CTA8.3-C260

OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill

More information about Stone Drilling Machine for Blast Hole , please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
