Specifications

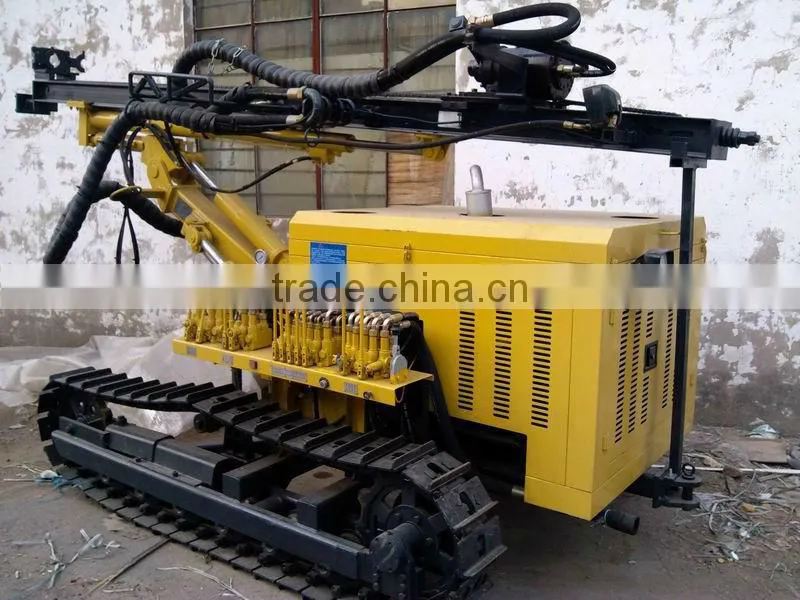

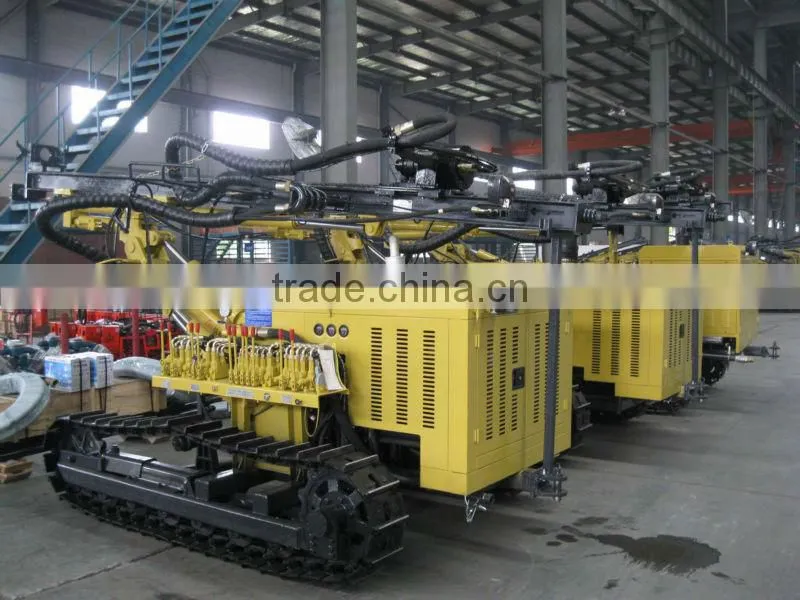

Wagon Drill Machinepowerful & reliable engine
adjustable boom
reliable hydraulic system & pump sets
long life
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

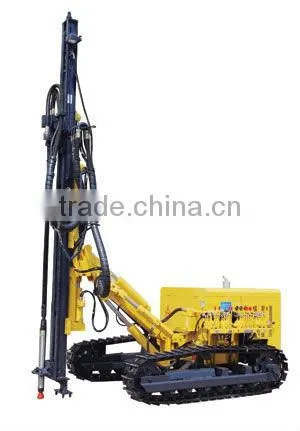

Specifications of Crawler Drill KY125
Rock Rigidity: f=6-20
Dia. of hole: 80-115 mm
Optimum Drilling Depth: 25 m
Working Pressure: 7-17 bar
Air Consumption: ≥13m3/min.
Rotation Speed: 0-67 rpm
Torque: 1400 N•m
Lift power: 17 KN
Dimensions: 4400x2200x2050mm
Weight: 3660 kg
Drive System: YC 2108 Engine
Recommended Compressor: LGCY15/13

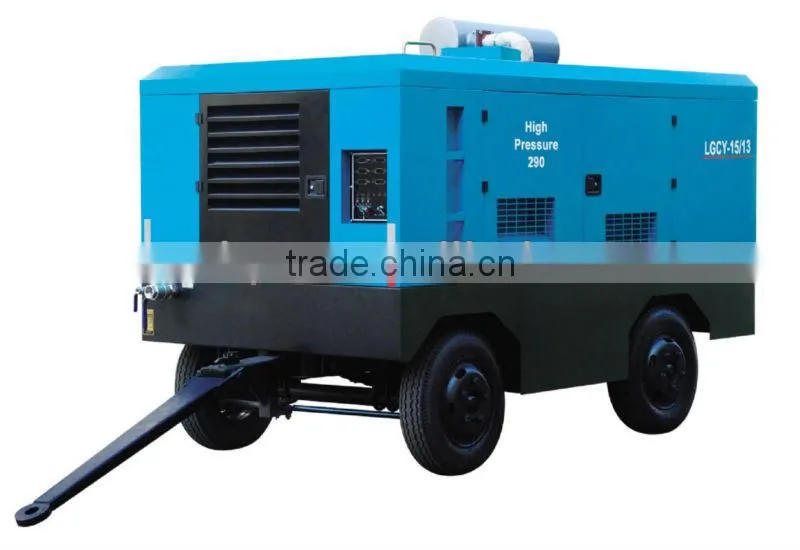

Specification of Matched Mobile Screw Air Compressor LGCY-15/13
Capacity: 15m3/min.
Working pressure: 1.3 Mpa
Diesel engine: WD415.23, 166kw
Weight: 3350 kg
Dimension: 3350x1650x2500mm
