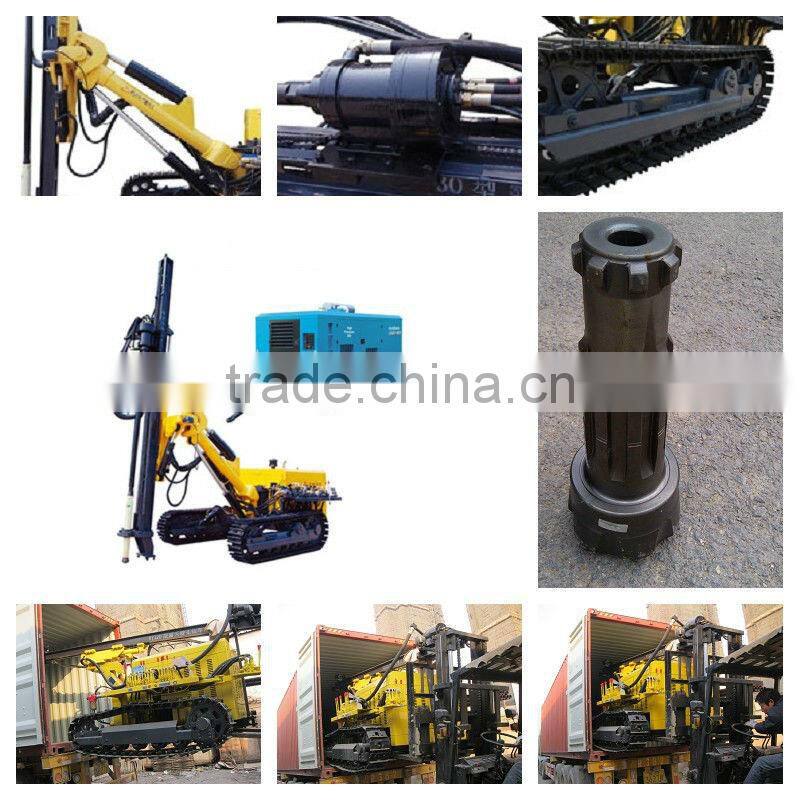

KG935 Pneumatic Wagon Drill for Sale

Zhengzhou Unique Industrial Equipment Co., Ltd.
KG935 Pneumatic Wagon Drill for Sale thumbnail-1
KG935 Pneumatic Wagon Drill for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Brand Name UNIQUE
Usage Ore
Dimension(L*W*H) 5400*2330*2020
Weight 6500
Certification ISO9000:2001
Warranty more than 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Pneumatic Wagon Drill for Sale:
1. Adopts wheel motor
2. Advanced hydraulic system
3. Adopts roller skate parts

KG935  Pneumatic Wagon Drill for Sale



Introduction of KG935 Pneumatic Wagon Drill for Sale

KG935 high pressure crawler type down the hole drill is improved by KG930B crawler drill. It has some new innovative design in the following parts: walking parts, carriage parts, drill arm.

Features of KG935 Pneumatic Wagon Drill for Sale
1.    It is equipped with China national famous YuChai YC4D80 Diesel engine with advantages of strong power and reliable performance;
2.    Adopts wheel motor and walking mechanism with automatic leveling function, more suitable for rugged mountain road.
3.    Advanced hydraulic system with low failure rate
4.    Large angel luffing mechanism which can meet requirements of different work position and greatly improve the working efficiency.
5.    Equipped with
6.    Adopts roller skate parts which can reduce the wear of rail.
KG935 Pneumatic Wagon Drill for Sale

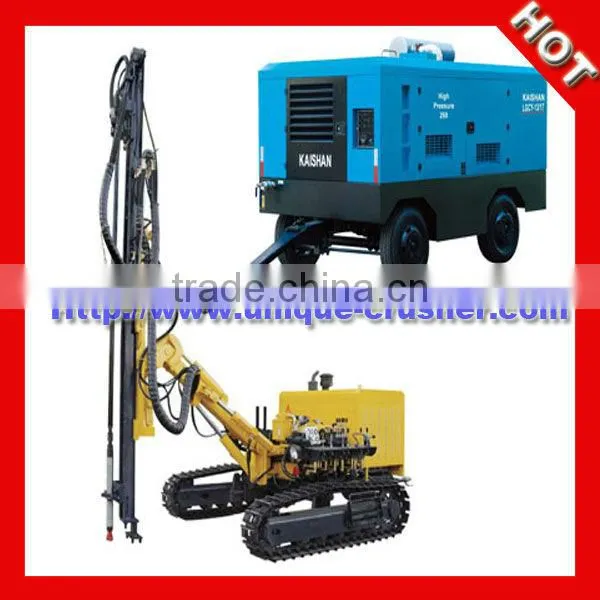

Main specification of matched Diesel mobile screw compressor
Model: LGCY-18/17
Discharge pressure: 1.7MPa
Air displacement: 18m³/min
Power: 194kW



KG935 Pneumatic Wagon Drill for Sale

Rock hardness

f=6-20

Hole diameter(mm)

φ105-140

Drill depth(m)

25

Walking speed (km/h)

0~2.5

Grade-ability( °)

30

Min. Ground clearance(mm)

320

Diesel Engine(Yuchai)

YC4D80(58Kw/2400rpm)

Overall Dimension (L*W*H)(mm)

5400×2330×2020

Total Weight (Kg)

6500

Pressure (Mpa)

1.05-2.46

Carriage stroke(mm)

3000

Max. Carriage pitch angle (°)

180

Max. Carriage swing angle(°)

Right: 50º(15º)   Left: 50º(95º)

Max. Drill arm swing angle

Right: 45º   Left: 45º

Compensation Stroke(mm)

1200

Rotating speed(rpm)

0-100

Rotary torque(N.m)

2800

elevating power(KN)

25

Drill rod diameter(mm)

φ76(Standard Configuration)/ φ89(optional)

Drill rod length(mm)

The first one 2000/ the other six 3000



OUR PRODUCT SCOPE:

Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant

Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.

Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
