2015 Hard Stone Quarry Rig With Low Price
- Shanghai Qingdao etc
- T/T Credit Card
You May Like
-
China Top Quality New Model Hydraulic Drilling Rig for Quarry Plant
-
Low Cost Economical Type Crawler Rig for Africa Mining
-
Low Investment Crawler Wagon Drill for Blast Hole Drilling
-
Cost-Effective KY-100 DTH Borehole Rock Drilling Rig
-
KG920A Air Track Drill for Limestone
-
KG930 Portable Pneumatic Rock Drill
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Brand Name | Kaishan | |
| Model Number | KY100J | Usage | Other, drilling borehole for quarry, mining and construction | |
| Voltage | N/A | Power(W) | 20.2KW | |
| Dimension(L*W*H) | 4100x2030x2020 | Weight | 3.1t | |
| Certification | ISO | Warranty | 15 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

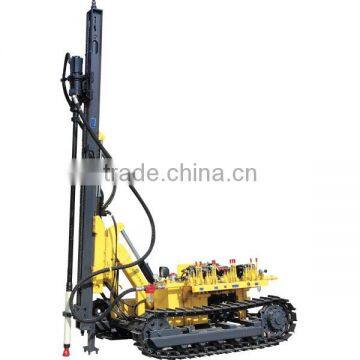

2015 Hard Stone Quarry Rig with Low Price
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.
Specifications of Crawler Drill KY100J
Rock Rigidity: f=6-20
Dia. of hole: 80-105 mm
Optimum Drilling Depth: 20 m
Working Pressure: 0.5-0.7 Mpa
Air Consumption: ≥10m3/min.
Rotation Speed: 0-65 rpm
Torque: 983 N•m
Lift power: 15KN
Rod specification: 60x2000 mm
Gradeability: 30°
Ground Clearance: 254 mm
Walking Speed: 2.0 Km/h
Dimensions: 4100x2030x2020mm
Weight: 3100 kg
Drive System: ZS1125GM(20.2Kw 2200r/min)
Specification of screw compressor
Capacity: 10 m3/min.(353cfm)
Working Pressure: 1.0 Mpa (10bar)
Fluid capacity: 25L
Compression stage: single
Diesel Engine: Cummins 4BTA3.9-C125
Dimensions: 3750x1920x1900 mm
Total Weight: 1900 kg
