Specifications
granite drilling rigpowerful & reliable engine
adjustable boom
reliable hydraulic system & pump sets
long service life

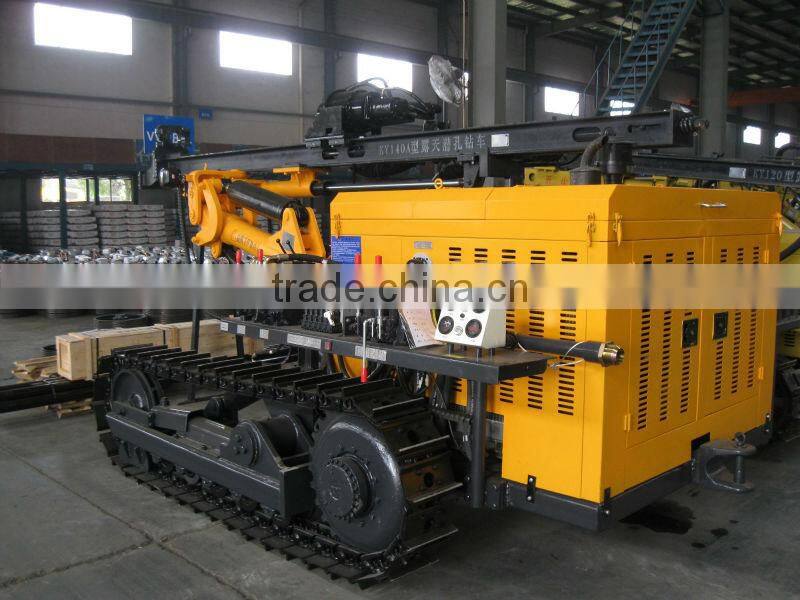

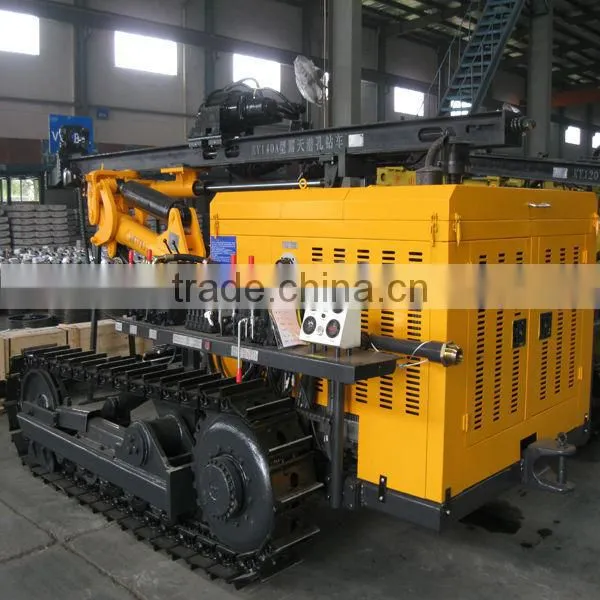

granite drilling rig KY140A in factory
Brief Introduction
Crawler Drill is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the screw air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.

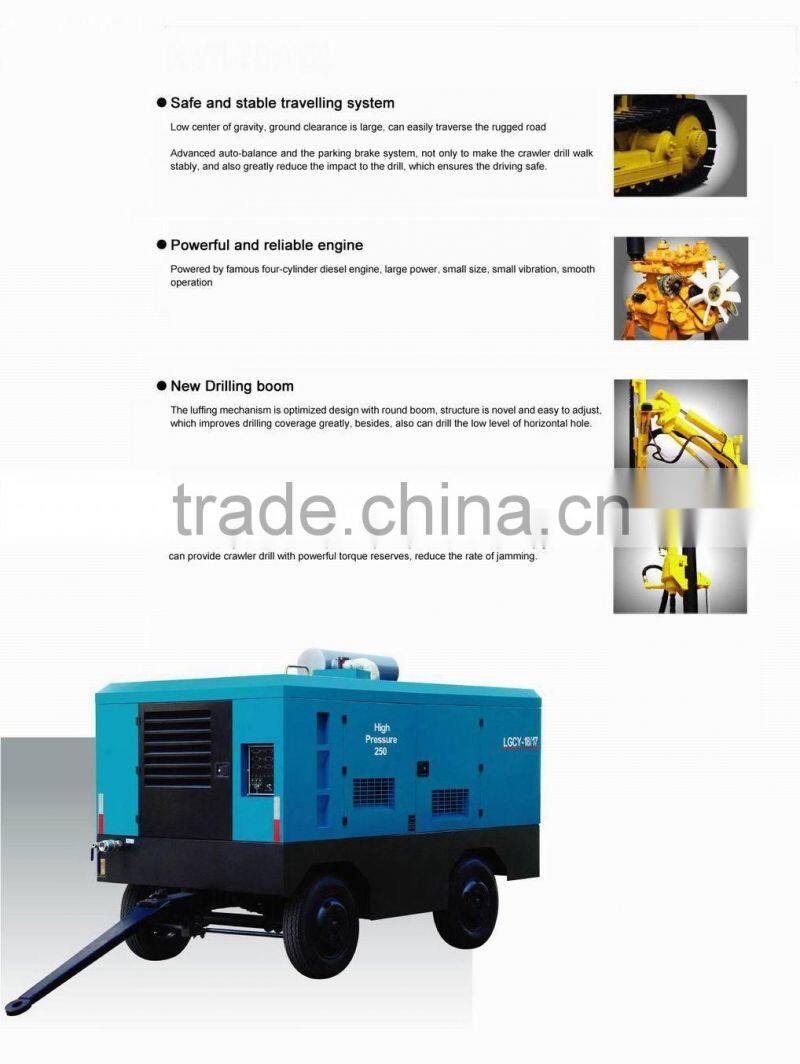

Features
Specifications of Crawler Drill KY140A
Rock rigidity: f=6-20
Dia. of hole: 105-140 mm
Optimum drilling depth: 25 m
Working pressure: 10-24 bar
Air consumption: ≥16m3/min.
Rotation speed: 0-63 rpm
Torque: 3200 N•m
Lift power: 20 KN
Dimension: 5400x2330x2020 mm
Weight: 5500 kg
Drive system: YC 4D80-T10

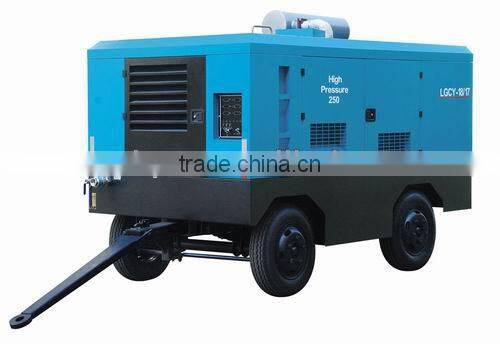

Specification of Matched Mobile Screw Air Compressor LGCY-18/17
Air capacity: 18m3/min.
Work pressure: 17bar
Fluid capacity: 48L
Compression stage: double
Diesel engine: Cummins 6CTA8.3-C260 (194kw/260HP)
Dimensions: 3650x1800x2500 mm
Total weight: 3700 kg

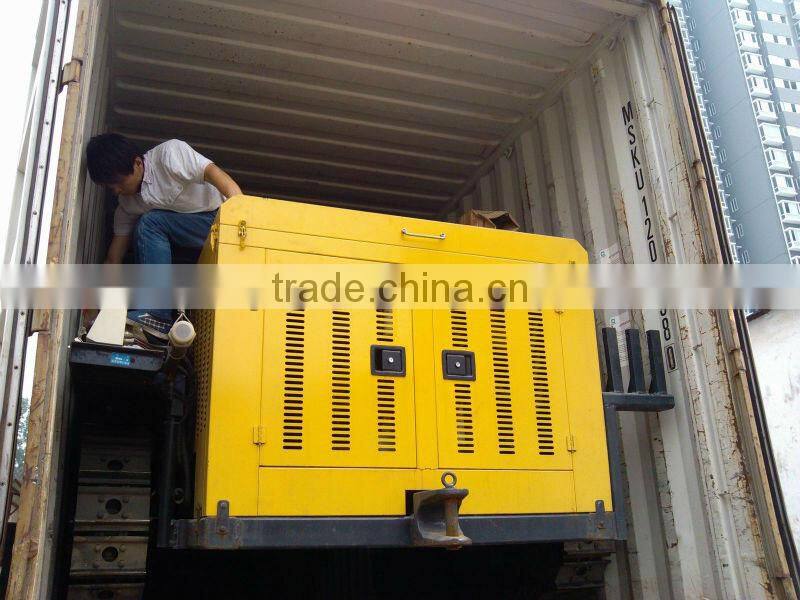

Loading
