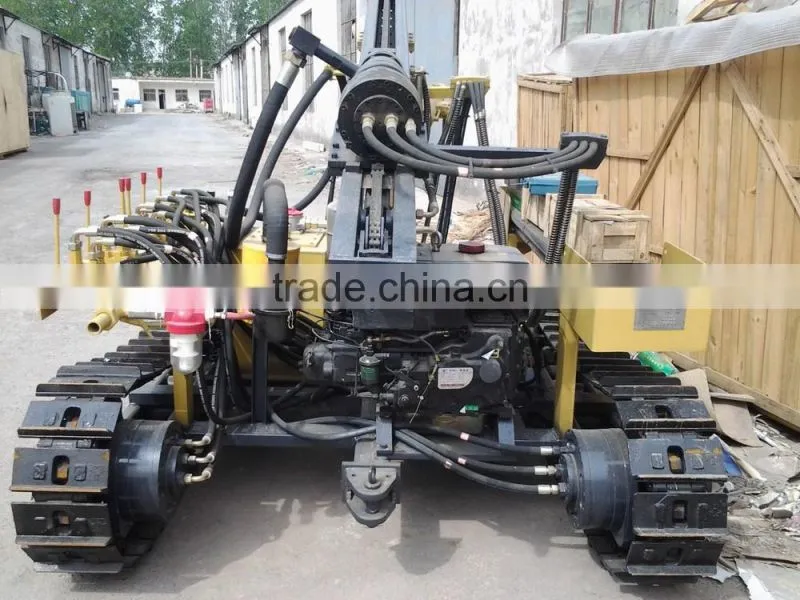

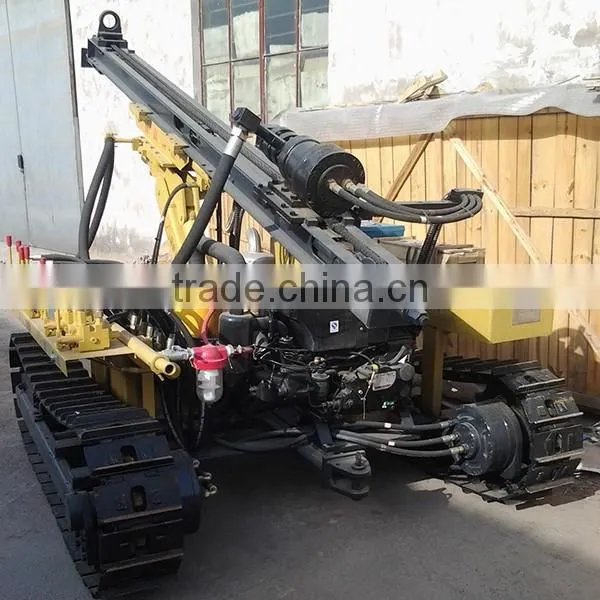

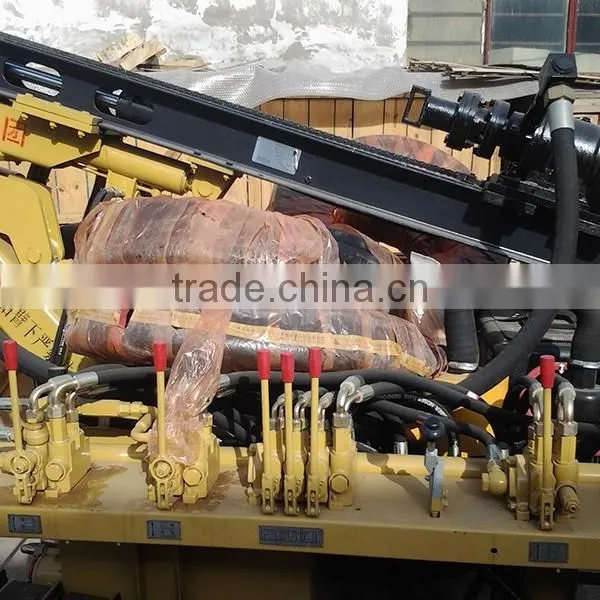

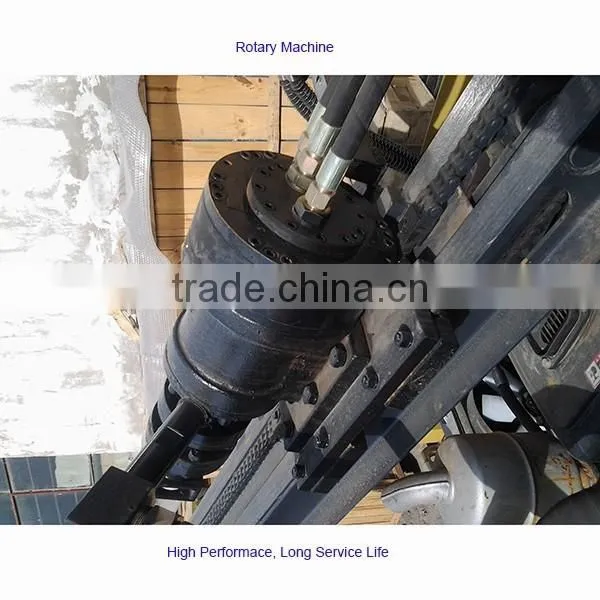

2015 China Famouns Low Cost Crawler Drill for Rock Borehole
The below crawler drill is for Nigeria customer
It is widely used in quarry, railway, road, water and electricity, open-pit mines and construction work site to do deep or medium-deep rock hole drilling operations. Woring with the air compressor and the impactor(DTH hammer), it can drill horizontal, vertical, inclined blast hole, pre-hole and anchor bolt holes.
Specifications of Crawler Drill KY100J
Rock Rigidity: f=6-20
Dia. of hole: 80-105 mm
Optimum Drilling Depth: 20 m
Working Pressure: 0.5-0.7 Mpa
Air Consumption: ≥10m3/min.
Rotation Speed: 0-65 rpm
Torque: 983 N•m
Lift power: 15KN
Rod specification: 60x2000 mm
Gradeability: 30°
Ground Clearance: 254 mm
Walking Speed: 2.0 Km/h
Dimensions: 4100x2030x2020mm
Weight: 3100 kg
Drive System: ZS1125GM(20.2Kw 2200r/min)
