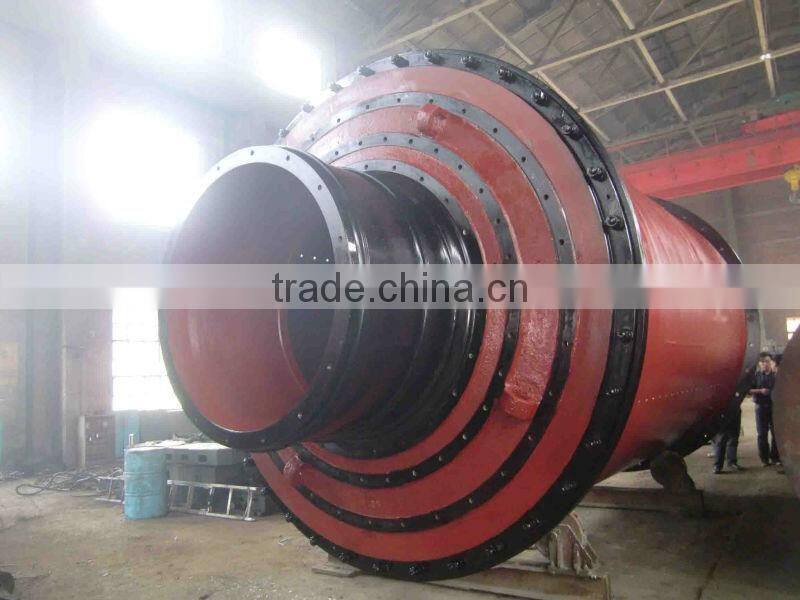

2013 Ball Mill for Ore Tailing Powder Making

Specifications

Ball Mill for Ore Tailing Powder Making:
1. High efficiency
2. Reliable working condition
3. Fine power product

2013 Ball Mill for Ore Tailing Powder Making

  Application of Ball Mill for Ore Tailing Powder Making
Ball mill is the key equipment for grinding materials into fine powder. It is widely applied in industry fields, such as cement making plant, silicate product, new type construction material, fireproofing, chemical fertilizer making plant, ore dressing plant, glass and ceramics making plant etc. It can grind various materials in dry or wet grinding method.

Working principle of Ball Mill for Ore Tailing Powder Making
ball mill is a horizontal type cylinder rotating equipment which adopts outer gear transmission. It is a type of grate ball mill which has two chambers.

Materials were feed into the first chamber through the hollow shaft screw. There are stair-stepping liner or corrugated liner and grinding balls of various sizes in the first chamber. Grinding balls will be taken to a certain height by the centrifugal force generated by the rotating cylinder and then fall down. In this way, materials are thumped and grinded.

After the coarse grinding in the first chamber, materials will be brought to the second chamber through the single-layer partition board. There are flat liner and grinding ball which can further grind the material. Finally, powder will be discharged through the discharge grate.

Structure of Ball Mill for Ore Tailing Powder Making
This machine mainly consists of feeding device, discharge device, rotating device, transmission devices (gear box, pinion gear, motor and electric control device). The hollow shaft is made of cast steel. The liner is replaceable. The gear wheel adopts casting gear hobbing. The wear-resisting liner is inlayed in the cylinder of ball mill.



 Specification of Ball Mill for Ore Tailing Powder Making

Type	Model	Drum (mm)	Volume  (m3)	Revolution (r/min)	Motor (KW)	Discharging size (mm)	Output (t/h)
Wet-Grate Ball Mills	MQ1530	1500×3000	4.5	26.5-29.8	95	0.3-0.074	6.1-3.1
	MQ2130	2100×3000	9.2	22.2-25.2	210	0.3-0.074	14-6.4
	MQ2430	2400×3000	12.2	20.8-23.5	240	0.3-0.074	18.5-8.7
	MQ2736	2700×3600	18.4	19.6-22.2	400	0.3-0.074	28-13
	MQ3245	3200×4500	32.8	18-20.4	800	0.3-0.074	49-24
	MQ3660	3600×6000	54.4	17-19.2	1600	0.3-0.074	82-38
Dry-Grate Ball Mills	MQG1515	1500×1500	2.2	26.5-29.8	60	0.4-0.074	5.2-1.9
	MQG1522	1500×2250	3.4	26.5-29.8	75	0.4-0.074	10.2-2.7
	MQG1530	1500×3000	4.5	26.5-29.8	95	0.4-0.074	14-3.6
	MQG2122	2100×2200	6.7	22.2-25.2	155	0.4-0.074	25-5
	MQG2424	2400×2400	9.8	20.8-23.5	210	0.4-0.074	29-7.5
	MQG2430	2400×3000	12.2	20.8-23.5	240	0.4-0.074	38-9.5
Over-flow Ball Mills	MQY1530	1500×3000	4.5	26.5-29.8	95	0.3-0.074	6-2.8
	MQY2136	2100×3600	11	19-25.2	210	0.3-0.074	12.8-6
	MQY2430	2400×3000	12.2	17.8-23.5	240	0.3-0.074	16.6-7.8
	MQY2740	2700×4000	20.4	16.8-22.2	400	0.3-0.074	27.7-13
	MQY3254	3200×5400	39.4	15.5-20.4	1000	0.3-0.074	52.8-25.9
	MQY3660	3600×6000	54.4	14.5-19.2	1250	0.3-0.074	74.1-32.4
