Specifications
Dry Ball Mill for Stone Powder Making:1. High efficiency
2. Reliable working condition
3. Fine power product

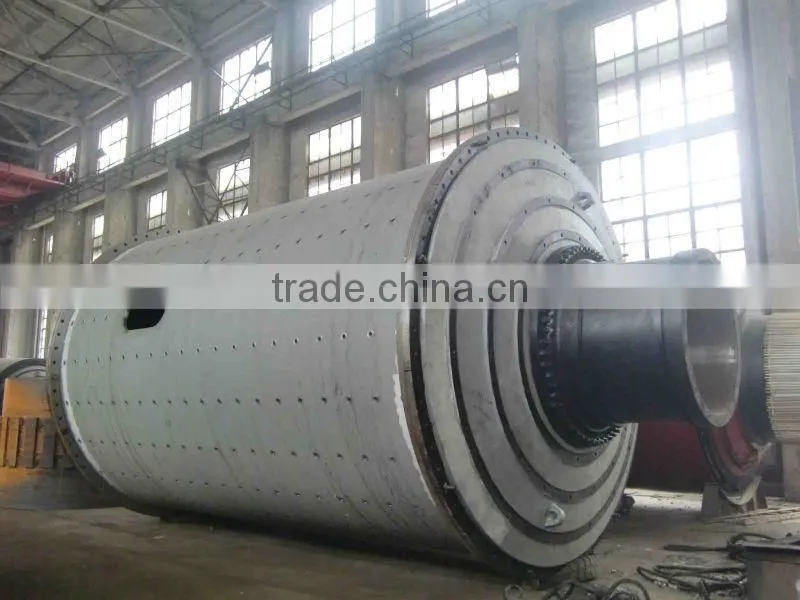

2013 Dry Ball Mill for Stone Powder Making
|
Application of Dry Ball Mill for Stone Powder Making
Ball mill is the key equipment for grinding materials into fine powder. It is widely applied in industry fields, such as cement making plant, silicate product, new type construction material, fireproofing, chemical fertilizer making plant, ore dressing plant, glass and ceramics making plant etc. It can grind various materials in dry or wet grinding method.
Working principle of Dry Ball Mill for Stone Powder Making

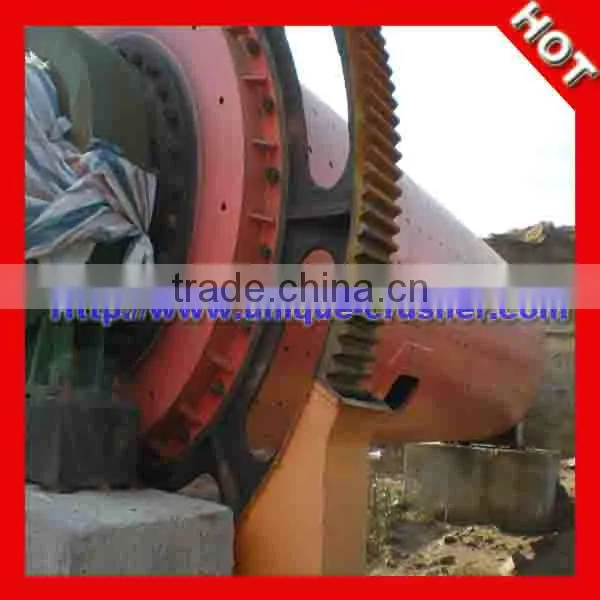

ball mill is a horizontal type cylinder rotating equipment which adopts outer gear transmission. It is a type of grate ball mill which has two chambers.
Materials were feed into the first chamber through the hollow shaft screw. There are stair-stepping liner or corrugated liner and grinding balls of various sizes in the first chamber. Grinding balls will be taken to a certain height by the centrifugal force generated by the rotating cylinder and then fall down. In this way, materials are thumped and grinded.
Structure of Dry Ball Mill for Stone Powder Making
This machine mainly consists of feeding device, discharge device, rotating device, transmission devices (gear box, pinion gear, motor and electric control device). The hollow shaft is made of cast steel. The liner is replaceable. The gear wheel adopts casting gear hobbing. The wear-resisting liner is inlayed in the cylinder of ball mill.
Specification of Dry Ball Mill for Stone Powder Making
Type |
Model |
Drum (mm) |
Volume (m3) |
Revolution (r/min) |
Motor (KW) |
Discharging size (mm) |
Output (t/h) |
|
Wet-Grate Ball Mills |
MQ1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.3-0.074 |
6.1-3.1 |
MQ2130 |
2100×3000 |
9.2 |
22.2-25.2 |
210 |
0.3-0.074 |
14-6.4 |
|
MQ2430 |
2400×3000 |
12.2 |
20.8-23.5 |
240 |
0.3-0.074 |
18.5-8.7 |
|
MQ2736 |
2700×3600 |
18.4 |
19.6-22.2 |
400 |
0.3-0.074 |
28-13 |
|
MQ3245 |
3200×4500 |
32.8 |
18-20.4 |
800 |
0.3-0.074 |
49-24 |
|
MQ3660 |
3600×6000 |
54.4 |
17-19.2 |
1600 |
0.3-0.074 |
82-38 |
|
|
Dry-Grate Ball Mills |
MQG1515 |
1500×1500 |
2.2 |
26.5-29.8 |
60 |
0.4-0.074 |
5.2-1.9 |
MQG1522 |
1500×2250 |
3.4 |
26.5-29.8 |
75 |
0.4-0.074 |
10.2-2.7 |
|
MQG1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.4-0.074 |
14-3.6 |
|
MQG2122 |
2100×2200 |
6.7 |
22.2-25.2 |
155 |
0.4-0.074 |
25-5 |
|
MQG2424 |
2400×2400 |
9.8 |
20.8-23.5 |
210 |
0.4-0.074 |
29-7.5 |
|
MQG2430 |
2400×3000 |
12.2 |
20.8-23.5 |
240 |
0.4-0.074 |
38-9.5 |
|
|
Over-flow Ball Mills |
MQY1530 |
1500×3000 |
4.5 |
26.5-29.8 |
95 |
0.3-0.074 |
6-2.8 |
MQY2136 |
2100×3600 |
11 |
19-25.2 |
210 |
0.3-0.074 |
12.8-6 |
|
MQY2430 |
2400×3000 |
12.2 |
17.8-23.5 |
240 |
0.3-0.074 |
16.6-7.8 |
|
MQY2740 |
2700×4000 |
20.4 |
16.8-22.2 |
400 |
0.3-0.074 |
27.7-13 |
|
MQY3254 |
3200×5400 |
39.4 |
15.5-20.4 |
1000 |
0.3-0.074 |
52.8-25.9 |
|
MQY3660 |
3600×6000 |
54.4 |
14.5-19.2 |
1250 |
0.3-0.074 |
74.1-32.4 |
OUR PRODUCT SCOPE: |
Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant |
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc. |
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill |
