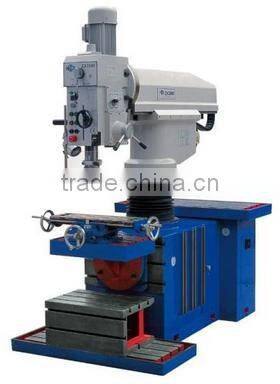

Radial Drilling Machine Model ZX3840 With Dia. 40mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Model Number:
ZX3840
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Radial Arm Drilling Machine With Dia. 62mm, Frequency Conversion, Hydraulic Drilling MachineUS$ 10,000 - 10,000MOQ: 1 Set -
Radial Drilling Machine Z3032x7 Dia 31.5mmNegotiableMOQ: 1
-
Radial Drilling Machine for Full Range, Dia 25 32 40 50 63 80 100mmNegotiableMOQ: 1
-
Radial Drilling Machine, Dia 40 50 63 80mmNegotiableMOQ: 1
-
Radial Drilling Machine, Dia 32 40mmNegotiableMOQ: 1
Condition
New
CNC or Not
Normal
Model Number
ZX3840
Certification
CE ISO
Radial Drilling Machine ZX3840
|
ZX3840 |
Max. Drilling dia.(steel) and tapping dia.(mm) |
φ40/M30 |
Max.Travel of spindle(mm) |
240 |
Distance between column center line to the T slot in the middle of worktable(mm) |
640 |
Max.Distance between spindle end to the worktable surface.(mm) |
760 |
Max.travel of ram (mm) |
590 |
Max Travel of to the spindle box in up and down position (mm) |
400 |
Turning angle of spindle box to the ram |
±90° |
Spindle taper bore |
MT4 |
Spindle feed steps |
6 |
Spindle feed range(mm/r) |
0.08~0.50 |
Dimension of worktable (L×W) |
1200×505 |
Diameter of column |
Φ220 |
Power of motor(kw) |
2.2 |
Machine dimension/weight |
1910×1200×2400 |
2800kg |
