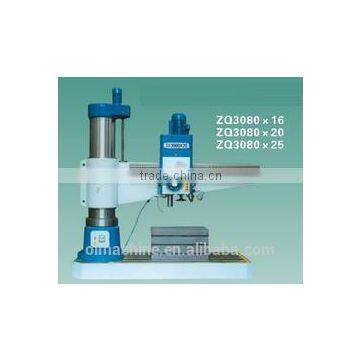

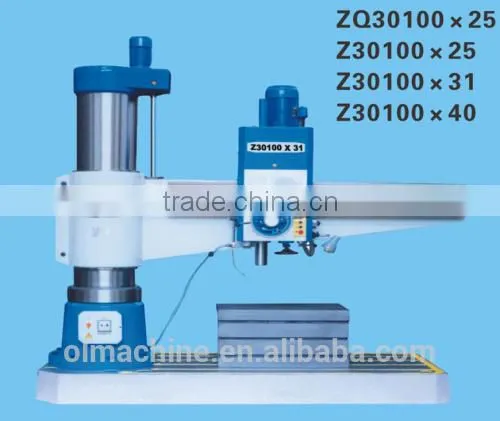

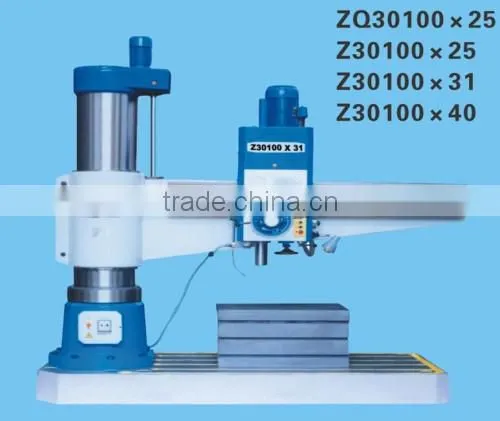

Radial Drilling Machine for Full Range, Dia 25 32 40 50 63 80 100mm

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Model Number:

Z3025 3032 3040 3050 3060 3080 30100

Shaanxi Olong Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Model Number Z3025 3032 3040 3050 3060 3080 30100

Certification CE ISO

Radial Drilling Machine for full range

			Z3032×8	Z3032×10		Z3032×13
Max drilling diameter		mm	32
Distance from the center line of spindle to column	Max	mm	800	1000		1100
	Min	mm	200
Horizontal traverse of spindle head on arm		mm	800
Distance from spindle nose to working surface of base plate	Max	mm	1064
	Min	mm	264
Vertical travel of arm on column		mm	550
Elevating speed of arm		m/min	1.13
Swivel angle of arm		degree	±180°
Taper in spindle		morse	4
Range of spindle speeds		r/min	71~1800
Number of spindle speeds		steps	8
Range of spindle feeds		mm/r	0.13~0.54
Number of spindle feeds		steps	4
Spindle travel		mm	250
Feed depth per revolution of graduated dial		mm	102
Max permissible torque of spindle		N·m	250
Max permissible feed pressure of spindle		kN	10
Power of the main drive motor		kw	2.2
Power of arm elevating motor		kw	0.75
Power of coolant pump motor		kw	0.06
Weight of the machine(approx.)		kg	1460		1500		1570

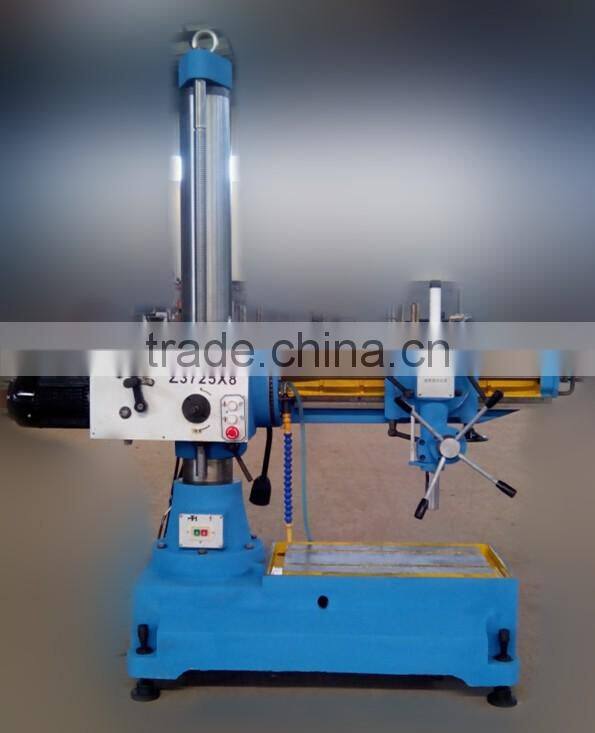

	Z3725×8
Maximum drilling diameter iron cast/ steel	31.5/25 mm
Distance from the center line of spindle to column	max. 815mm min. 315mm
Horizontal traverse of spindle head on arm	500 mm
Distance from spindle nose to working surface of base plate	max.870mm min. 25mm
Swivel angle of arm	360°
Elevating speed of arm	1.51 m/min
Vertical travel of arm on column	845mm
Taper in spindle	NO.3
Spindle travel	130mm
Range of spindle speeds	173 425 686 960 r/min
work table dimension	710×500 mm
Power of the main drive motor	1.5kw
Weight of the machine(approx.)	870kg
Overall dimensions(L×W×H)	1800×700×2044 mm
