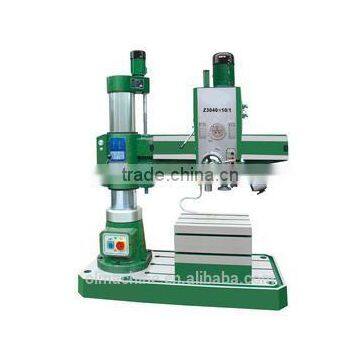

Radial Drilling Machine, Dia 32 40mm

Z3032×10/1,Z3040×10/1,Z3040×13-1

Max drilling dia (mm)

32/40,32/40,40

Spindle axis to column (mm)

300~1000,300~1000,   300~1300

Column dia (mm)

240,240,280

 Spindle taper (mm)

MT4

Spindle travel (mm)

280

Spindle speed range (r/min)

32~2500

Spindle speed steps

16

Spindle feed range (mm/r)

0.10~1.25

 Feed steps

8

 Spindle nose to base (mm)

220~1000,220~1000,300~1320

Work table (mm)

600×450×450

base (mm)

1710×800×160,1710×800×160,2050×900×200

Machine dimension (mm)

1760×800×2050,1760×800×2050,2100×900×2300

Motor power (kW)

2.2,2.2,3

G.w./n.w. (kg)

2100/1600,2100/1600,3800/2500

Packing size (cm)

187×97×220,187×97×220,236×117×260

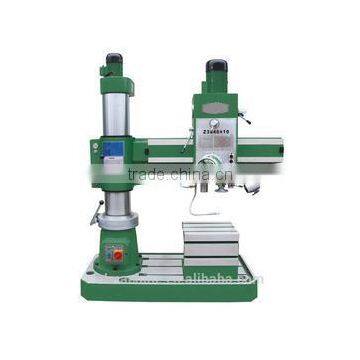

Z3032×10 / Z3040×10

Max drilling dia (mm)

32,40

Spindle axis to column (mm)

200~1000

Column dia (mm)

240

 Spindle taper (mm)

MT4

Spindle travel (mm)

250

Spindle speed range (r/min)

71~1800

Spindle speed steps

8

Spindle feed range (mm/r)

0.13~0.54

 Feed steps

4

 Spindle nose to base (mm)

264~1064

Work table (mm)

400X450X400

base (mm)

1500X740X160

Machine dimension (mm)

1730X750X2360

Motor power (kW)

2.2,3

G.w./n.w. (kg)

1700/1400

Packing size (cm)

187×97×220

Z3032×8/1,Z3040×8/1,ZQ3040×10/1

Max drilling dia (mm)

32/40,40

Spindle axis to column (mm)

320~820,320~1020

Column dia (mm)

200

 Spindle taper (mm)

MT4

Spindle travel (mm)

240

Spindle speed range (r/min)

75~1220

Spindle speed steps

6

Spindle feed range (mm/r)

0.1~0.25

 Feed steps

3

 Spindle nose to base (mm)

120~860

Work table (mm)

400×400×350

base (mm)

1370×700×160

Machine dimension (mm)

1407×720×1885

Motor power (kW)

1.5

G.w./n.w. (kg)

1425/1200,1450/1230

Packing size (cm)

155×77×210,175×77×210
