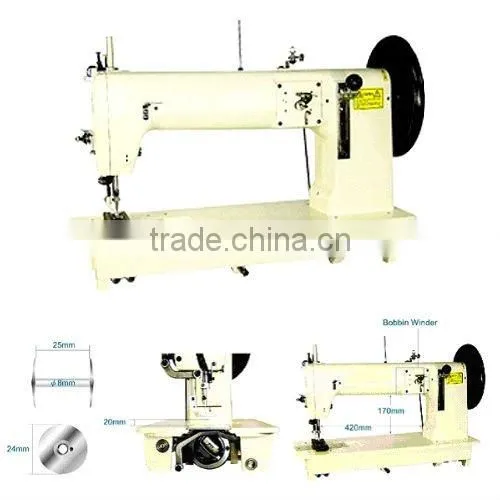

Long Arm, Flat Bed, Upper & Lower Feed, Extra Heavy Duty, Lockstitch Sewing MachineItem No. EM-273 Long arm 420mm(16.5") flatbed upper & lower feed extra heavy duty
This machine is equipped with semi-rotary large
capacity shuttle hook,suitable for sewing heavy
weight materials such as safety belts,luggage,
tarpaulins, tents, book bindings, buffing wheels,
orthopedic appliances, holsters, knife sheath,
purses, etc.
FEATURES:
*With upper & lower feed, the machine can sew accurately and easily several sheets of heavy
weight materials piled up together.
*The upper feed amount can be adjusted within the range of ±20% with respect to the lower feed
amount.
*The lifting amount of presser foot is as high as 20mm, suitable for stitching the extra heavy-weight
materials.
*The machine is provided with a free space measuring 420mm wide. It allows the operator to handle a
large sewing product with ease.
*Applied the semi-rotary large shuttle hook & bobbin, could reduce the frequency of changing the bobbin
thread and increase the sewing efficiency.
*The machine incorporates a built in bobbin winder, which can be reached with ease during sewing.
SPECIFICATIONS:
Max. Sewing Speed |
800 s.p.m. |
Needle |
Schmetz 794 (DYx3) #27 |
Max. Stitch Length |
15mm |
Needle System |
#21 ~ #28 |
Lift of the Presser Foot |
12mm by Hand 20mm |
Thread |
#0 ~ #8 |
Needle Bar |
56mm |
Motor |
Clutch Motor, 3/4HP, 4P |
Working Space |
420mm |
N.W. / G.W. |
63 / 76 KGS |
Bed Size |
253x656mm |
Meas. |
0.19 CBM |
