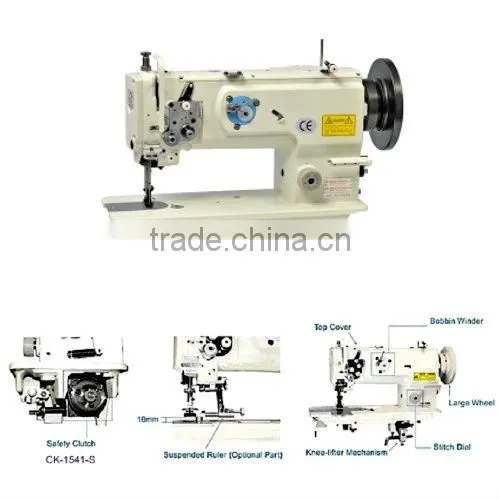

Single-needle, Unison-feed, Lockstitch Machine with Horizontal-axis Large Hook

Specifications

Single-needle, Unison-feed, Lockstitch Machine with Horizontal-axis Large Hook

♦EM- 1541 SERIES



*EM-1541             without safety mechanism

*EM-1541-S         with safety mechanism

*EM-1541-FL      with pneumatic auto-lifter

*EM-1541-BT     with automatic backtack and auto-lifter



FEATURES:

*With its large needle bar stroke, higher presser foot lift, and newly adopted double-tension

  mechanism, the machine offers excellent sewing capabilities and responsiveness.



*With the adoption of a new rectangular feed mechanism, an alternating vertical movement

  mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully and

  smoothly. Well tensed seams are consistently produced without pitch errors.



*The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate feed of

  heavy materials while preventing stitch gathering.



*With its sufficient needle bar stroke of 36mm and long 190R needle, the machine supports the

  sewing of heavy materials.



*The machine comes with an extra large steel hand-wheel with a diameter as large as 175mm.





SPECIFICATIONS:

Max. Sewing Speed	2,500 s.p.m.	Needle	Organ DPx17 #23
Max. Stitch Length	9mm	Needle System	#20 ~ #25
Lift of the Presser Foot	9mm by Hand, 16mm by Pedal	Thread	#30 ~ #5
Alternating Vertical Movement	2.5 ~ 6.5mm	Motor	Clutch Motor, 1/2HP, 4P
Needle Bar Stroke	36mm	N.W. / G.W.	42 / 51 KGS
Working Space	264mm	Meas.	0.19 CBM
