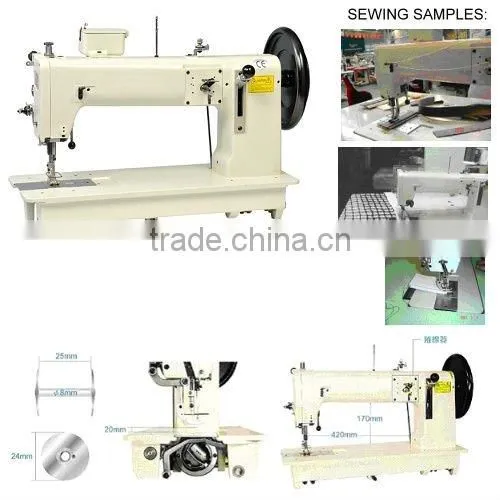

Long Arm, Flat Bed, Unison-Feed, Extra Heavy Duty, Lockstitch Sewing MachineItem No. EM-273 Long arm 420mm(16.5") flatbed unison feed extra heavy duty lockstitch sew.
This machine is equipped with unison feed mechanism
and semi-rotary large capacity shuttle hook, suitable for
sewing heavy weight materials such as safety belts,
luggage, tarpaulins, tents, book bindings, orthopedic
appliances, holsters, knife sheath, purses, etc.
FEATURES:
*powerful unison feed, the machine can sew accurately and easily several sheets of heavy
weight materials piled up together.
*lifting amount of presser foot is as high as 20mm, suitable for stitching the extra heavy-weight materials.
*The machine is provided with a free space measuring 420mm wide. It allows the operator to
handle a large sewing product with ease.
*Applied the semi-rotary large shuttle hook & bobbin, could reduce the frequency of changing
the bobbin thread and increase the sewing efficiency.
*The machine incorporates a built in bobbin winder, which can be reached with ease during sewing.
SPECIFICATIONS:
Max. Sewing Speed | 800 s.p.m. | Needle | Schmetz 794 (DYx3) #27 |
Max. Stitch Length | 15mm | Needle System | #21 ~ #28 |
Lift of the Presser Foot | 12mm by Hand 20mm | Thread | #0 ~ #8 |
Needle Bar | 56mm | Motor | Clutch Motor, 3/4HP, 4P |
Working Space | 420mm | N.W. / G.W. | 63 / 76 KGS |
Bed Size | 253x656mm | Meas. | 0.19 CBM |
