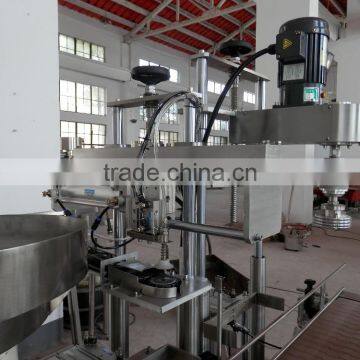

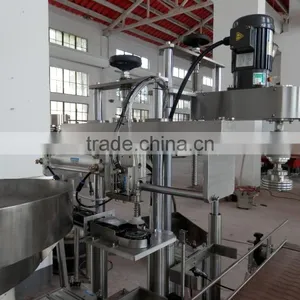

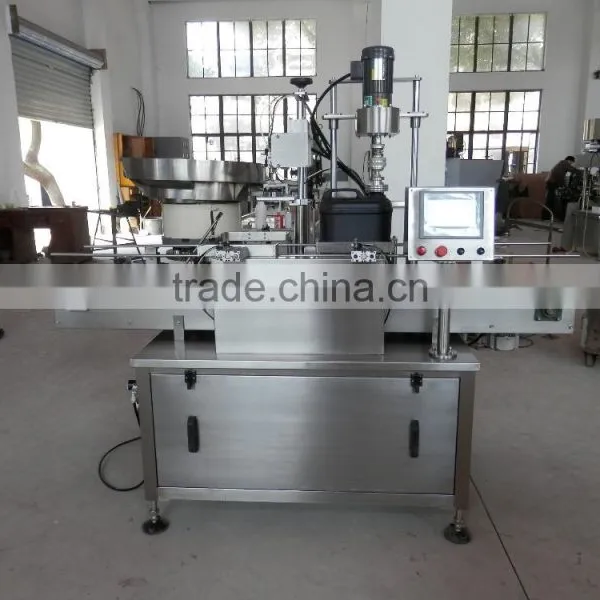

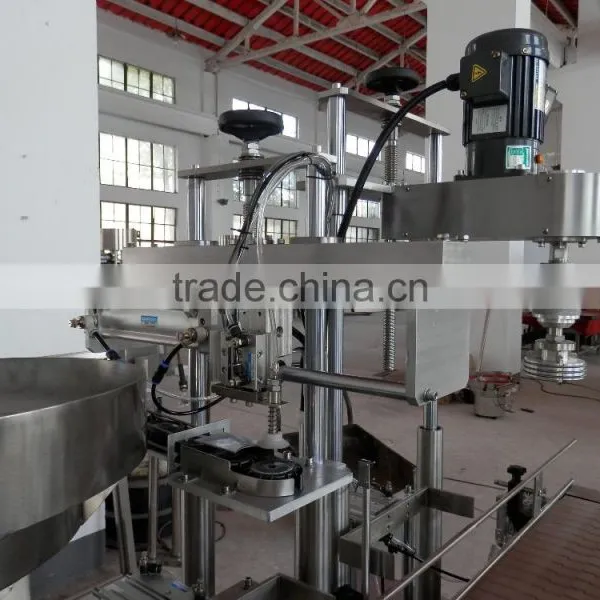

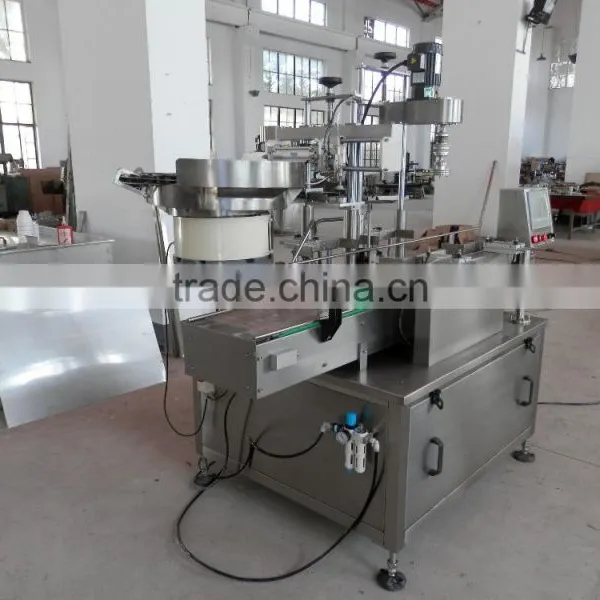

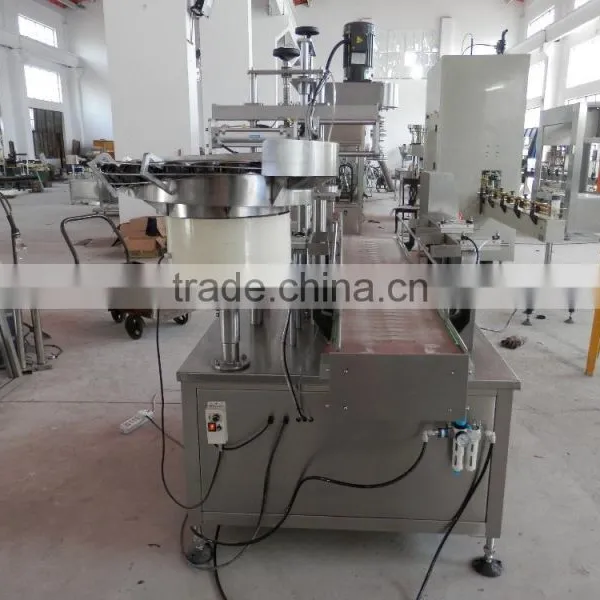

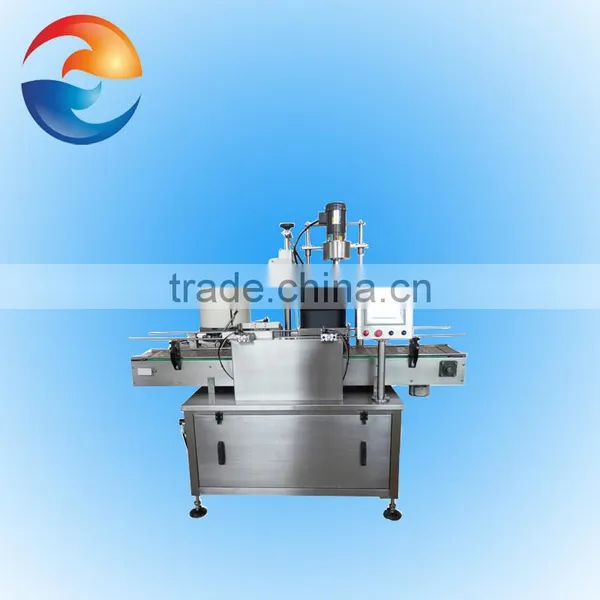

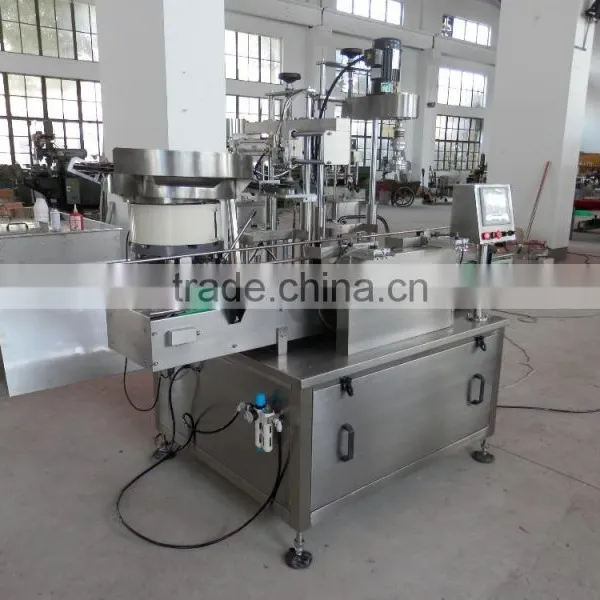

Help CenterFX-5 Full-automatic Inline Capping Machine For Barrel Screw Capping Lock
Related Products
-
FX-8 Full-automatic Grab Lid Capper Machine For Plastic Thread CapUS$ 9,300 - 14,300MOQ: 1 Set -
FXG-C Full-automatic Rotary Srew Cap Seal Machine For Plastic Thread CapUS$ 29,800 - 39,800MOQ: 1 Set
-
FXG-B Full-automatic Rotary Aluminium Cap Capping Machine / CapperUS$ 9,800 - 16,000MOQ: 1 Set
-
Full-automatic Rotary Aluminium Cap Capping Machine / CapperUS$ 9,800 - 16,000MOQ: 1 Set
-
FX-3 Semi-automatic Inline Capping Machine For Plastic Thread CapUS$ 2,000 - 3,000MOQ: 1 Set
Inroduction
FX-5 Full-automatic Inline Capping Machine integrates machinery, electricity, gas into integration, is the new high-tech product. The man-machine interface system, it is convenient and swift to adjust the specification. The machine is made up with cap scrambler, cap suppliers, cap scraping and cap screwing which is suitable for automatic capping for 5-30L large buckets.
Advantages
with PLC control system,
♦ Electrical components - using internationally renowned brands, ensuring that equipment is reliable and of high accuracy.
♦ Mechanical components - Capping motor is from China famous brand, the rest parts of the machine are made of high-quality stainless steel 304.
Function extensions - can be customized for special requirements allocation, for example: cap unscrambler can be attached or removed.
Maintenance situations - the machine meet the GMP requirements, easy to disassemble, clean and maintain..
Function with - this machine comes with lid device management, anti-covered self-excluded
Exchange specifications – Similar barrels can be used on one machine, we can custmize for customers.
♦ Environmental configuration - the framework of environmental protection can be configured so that the operating environment is cleaner. (This function is customized on request)
Parameters
♦ Production capacity: ≤800BPH
♦ Suitable bottle diameter: According to sample barrels
♦ Compressed air pressure: 0.5~0.7Mpa
♦ Total power: 1Kw
♦ Overall dimension: 2000x1200x1800mm
♦ Weight: About 400Kg
♦ Remark: We supply customized service
