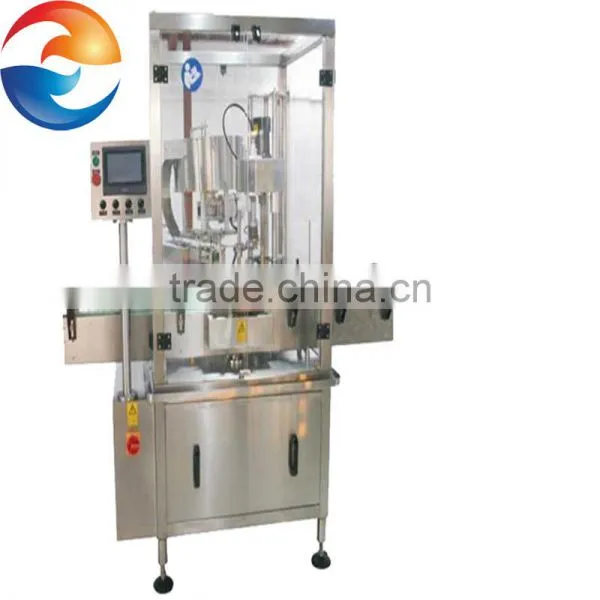

Help CenterFX-7 Full-automatic Disc Location Fetching-cap Type Capping Machine
Related Products
-
FX-1 Full-automatic Inline Capping Machine For Plastic Thread CapUS$ 6,500 - 12,500MOQ: 1 Set -
FX-5 Full-automatic Inline Capping Machine For Barrel Screw Capping LockUS$ 9,600 - 13,600MOQ: 1 Set
-
FX-8 Full-automatic Grab Lid Capper Machine For Plastic Thread CapUS$ 9,300 - 14,300MOQ: 1 Set
-
FXG-C Full-automatic Rotary Srew Cap Seal Machine For Plastic Thread CapUS$ 29,800 - 39,800MOQ: 1 Set
-
FXG-B Full-automatic Rotary Aluminium Cap Capping Machine / CapperUS$ 9,800 - 16,000MOQ: 1 Set
Introduction
Automatic Capping Machine adopts the design of vibrating cap sorter and fetching cap supplier. The capping head takes the cap and then capping which guarantee the qualification rate of capping. It can realize the capping of plastic caps or aluminum caps or press-in type caps in changing different capping device. It is easy to replace and operate. Capping for different containers can be replaced in a short period of time. The capping machine can be used as a single machine or used in the filling line. It applies to the capping for chemicals, medicine, food, cosmetics and cleaning products.
Advantages
♦ Control interface - with PLC control system, user interface is simple, safe and reliable
♦ Electrical components - using internationally renowned brands, ensuring that equipment is reliable and of high accuracy.
♦ Mechanical components - Capping motor is from China famous brand, the rest parts of the machine are made of high-quality stainless steel 304.
♦ Function extensions - With changing bottle plate, the machine could be used for other bottle. Round, flat bottles all can be used.
♦ Maintenance situations - the machine meet the GMP requirements, easy to disassemble, clean and maintain..
♦ Function with - this machine comes with lid device management, anti-covered self-excluded
♦ Environmental configuration - the framework of environmental protection can be configured so that the operating environment is cleaner. (This function is customized on request)
Parameters
♦ Maximum capacity: 3000BPH
♦ Applicable cap diameter: φ15-φ50mm
♦ Suitable bottle diameter: φ30-φ90mm
♦ Suitable bottle height: 80-250mm
♦ Total power: 2Kw
♦ Power supply: 220V/380V, 50Hz or customized for different countries
♦ Air suppy: 0.5-0.7Mpa
♦ Dimension: 2400x1500x2000mm
♦ Weight: 400Kg
