Home > Instruments & Meters > Physical Measuring Meter > Dynamometer > SR1510P Pencil Hardness Tester

SR1510P Pencil Hardness Tester

Name: SR1510P Pencil Hardness Tester
Brand: ShowRange
SKU: 143613158
Availability: InStock

SR1510P Pencil Hardness Tester thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

ShowRange

Model Number:

SR1510P

Contact Supplier Request Quote Chat Now

Shanghai Total Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name ShowRange

Model Number SR1510P

SR1510P Pencil Hardness Tester

Applications:
The instrument applies mechanical measurement. Keep three point touch the coating (two wheel, a pencil core), and a 45 degree angle between pencil and test surface. Push the instrument sliding, pencil draws the corresponding track in the coating. In the change of different pencil marks, the hardness value of the film can be determined.

Features:

Coating hardness is the necessary measurement for the performance of coatings. This instrument applied the pencil scratch method. It is a fast and economical way to determine the film hardness using the drawing lead core or the pencil core. The pencil scratch method for coating hardness testing is a common method in the world since the 1980s. In China, this test method has also been promoted to the coating research and industrial production. The instrument can be used both in laboratory, and on site.

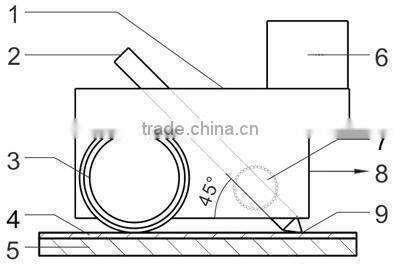

     1 - Horizontal Mark
     2 - Pencil
     3 - Wheel
     4 - Coating
     5 - Base Material
     6 - Weights
     7 - Screw
     8 - Moving Direction
     9 - Pencil Core

Standard Accessories:

1. Pencil Hardness Tester
2. 1000g Weight
3. 750g Weight
4. Pencils (6B-6H)
5. Eraser
6. Knife
7. Horizontal Pad Block
8. Sandpaper
