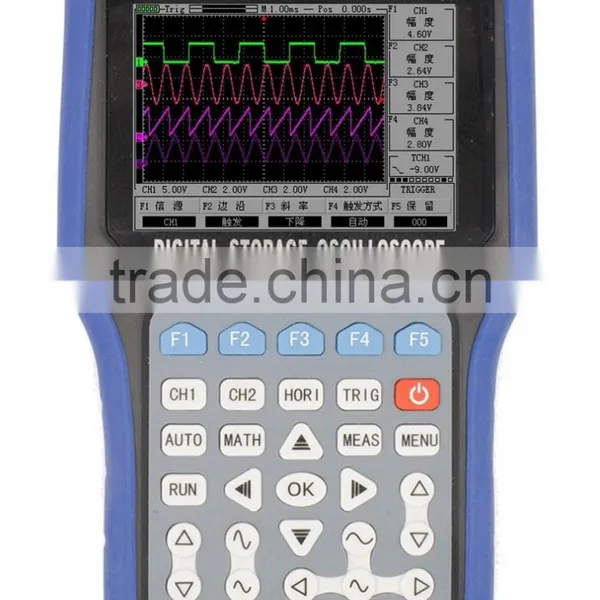

SRD3034 Four Channel Oscilloscope + Recorder

Shanghai Total Industrial Co., Ltd.
SRD3034 Four Channel Oscilloscope + Recorder thumbnail-1
SRD3034 Four Channel Oscilloscope + Recorder photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ShowRange
Model Number:
SRD3034
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ShowRange
Model Number SRD3034

Features:

-New ultra-thin appearance design, small volume, light weight, convenient carrying
- Color TFTLCD display, 400*272 resolution, waveform display more clear, stable
-Ultra low power consumption, single battery can work for 5 hours
-support USB storage device, waveform screenshot saved
-Having the edge trigger function, can automatically detect support (50Hz - 60MHz)
-Support time and voltage cursor
- support, English menu display, select English button
-To display a variety of styles: color, black and white display
-Support automatic shutdown function and power saving mode: time can be set
-Backlight brightness adjustable

SRD3034 Four channel oscilloscope + Recorder

SRD3034

 The real-time sampling   rate

  250MSa/S

 Channel

 4

 Bandwidth

 30MHz

The vertical resolution

 8

 Vertical sensitivity

 10mV-5V(Probe 1X); 100mV-50V(Probe 10X); 1V-500V(Probe 100X), (1,2.5,5 Stepping)

The vertical accuracy

 +/- 3%

 The input impedance

 1MΩ 25pF

 Input coupling

 DC, AC

 Display mode

 X-Y; Y-T

 Input voltage

 40V(x1); 400V(x10); 4000V(x100)

 The time base

 10ns-50ms(1,2.5,5Stepping); 100ms-5s(Scan)

 The storage depth

 16k per channel

Trigger Mode

Automatic, normal and single

Trigger Type

The rising edge, falling edge

Automatic detection

Support(50Hz-60MHz)

Measurement:

 The peak to peak value, duty cycle, frequency, cycle

 Cursor

 Time, voltage

 Screen

 4.3 inch   16 bit true color   TFT 400*272
