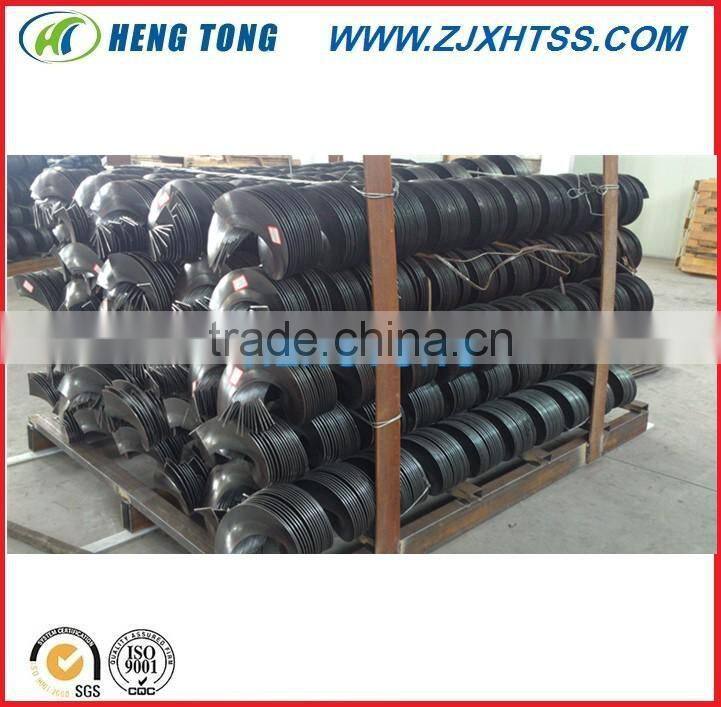

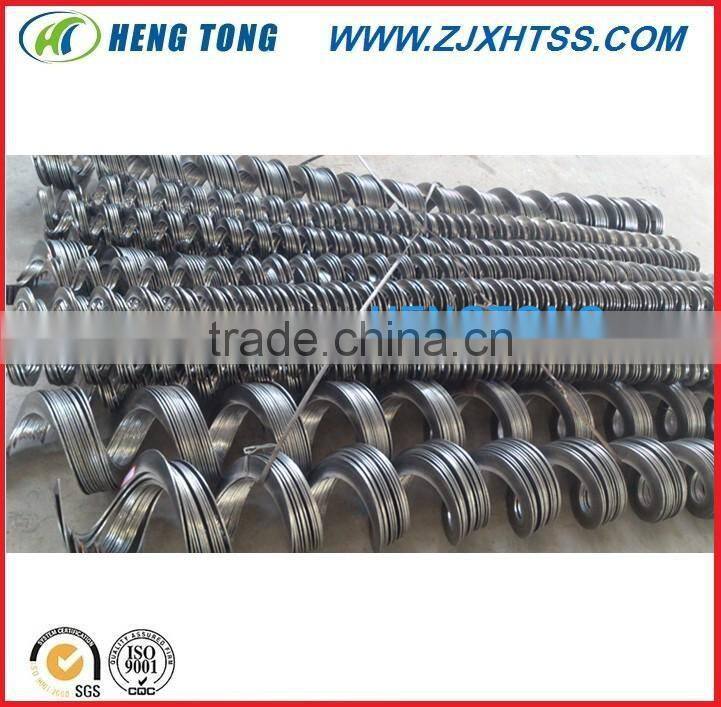

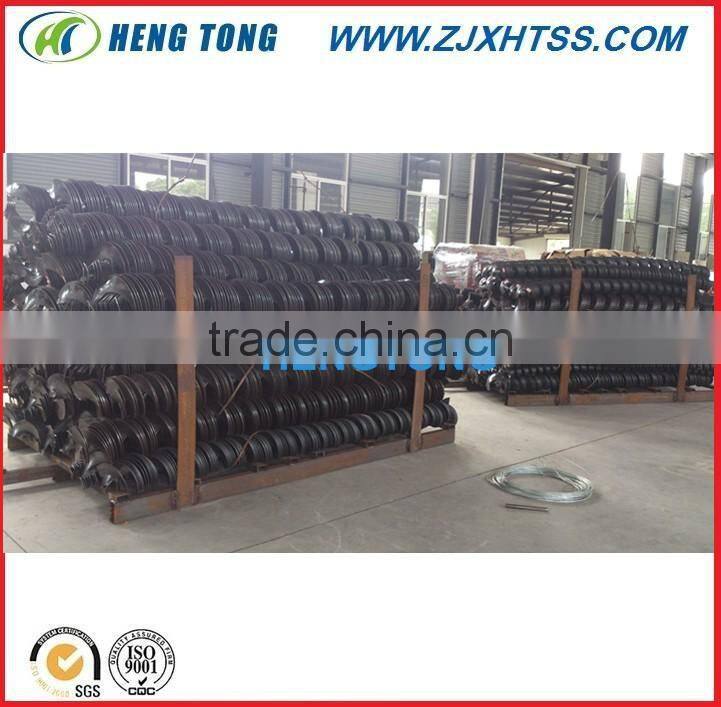

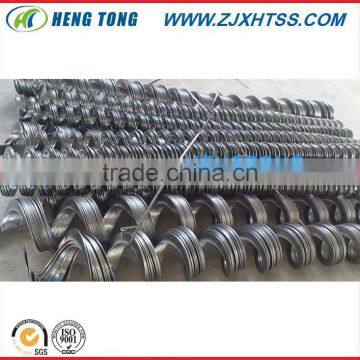

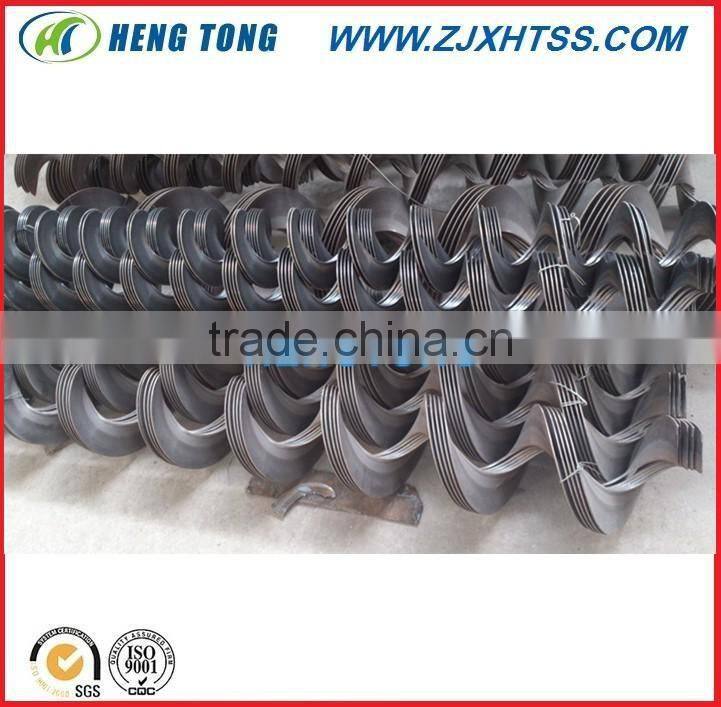

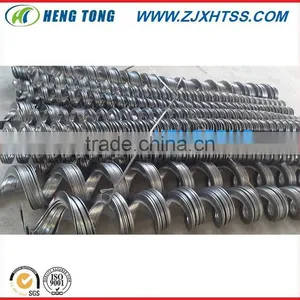

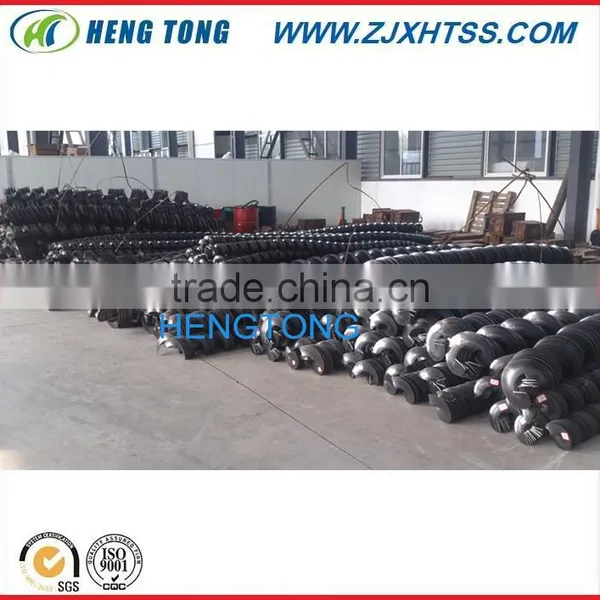

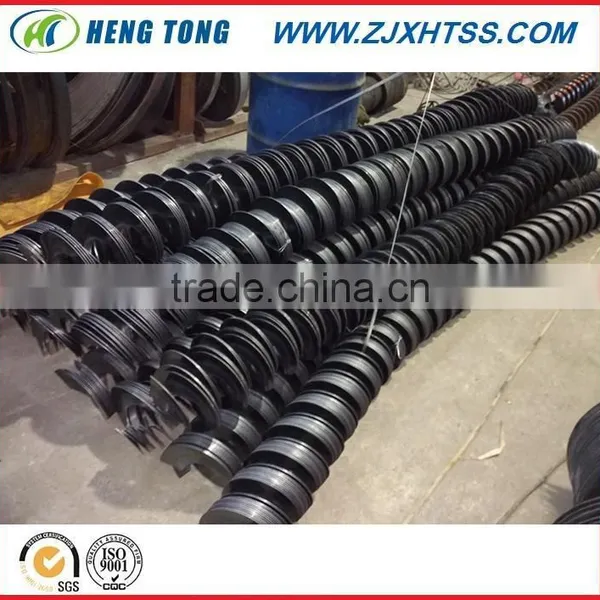

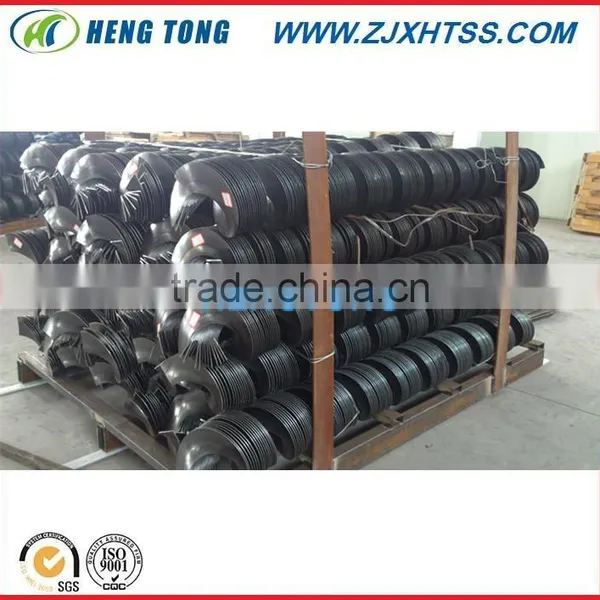

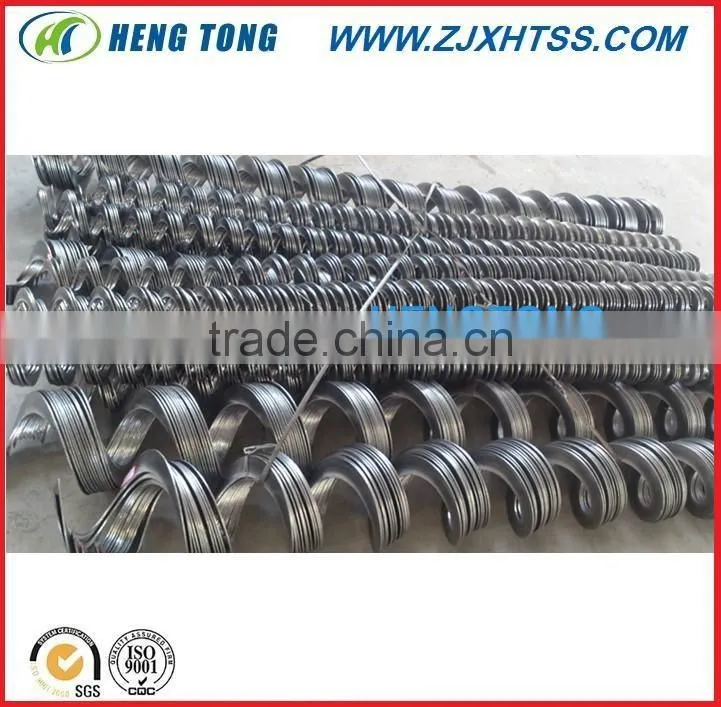

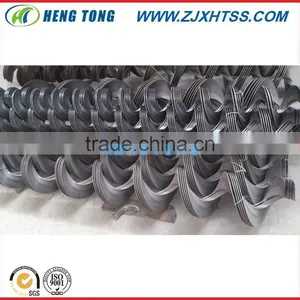

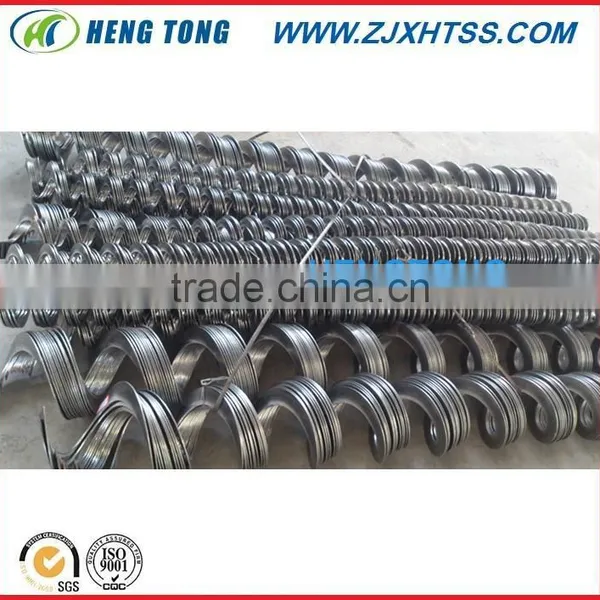

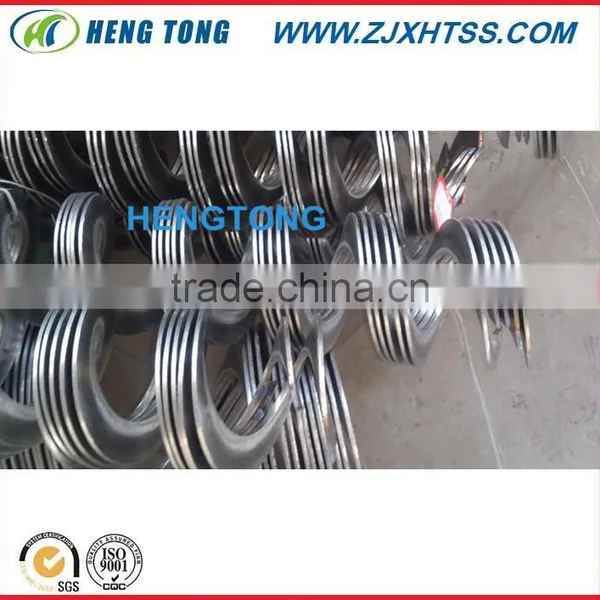

Continuous Cold Rolled Screw Flight / Auger Flighting
Continuous Screw Flight-Zhenjiang New Hengtong
Material: Carbon Steel, Stainless steel
Features:
• Continous length (endless), cut to any length design;
• Smooth finished surface, uniform shape, high precision
• Good tensile strength and wear resistance

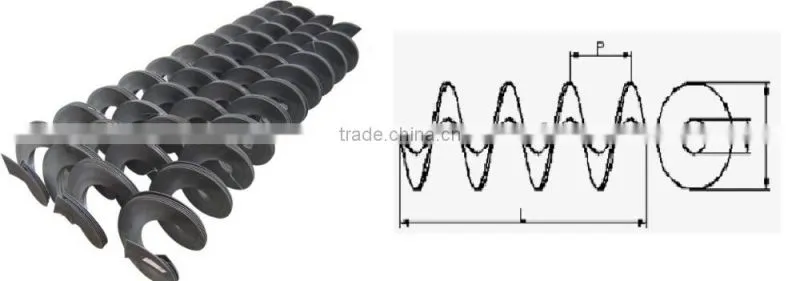

Technical Specifications:

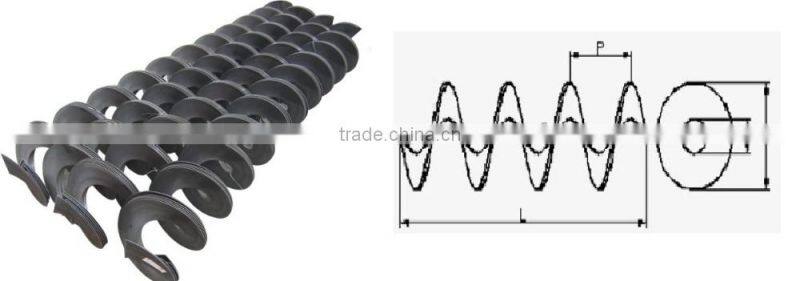

Standard Model | Outer Diameter (mm) | Inner Diameter (mm) | Pitch (mm) | Thickness (mm) | Standard Length (m) |
LY100 | φ100 | φ28—φ30 | 100 | 3.5 | 2 |
LY125 | φ125 | φ30—φ42 | 100—125 | 3.5-5 | 2 |
LY160 | φ160 | φ42 | 120—160 | 3.5-5 | 2 |
LY200 | φ200 | φ48 | 160—200 | 3.5-5 | 2 |
LY250 | φ250 | φ60 | 200—250 | 3.5-6 | 2 |
LY300 | φ300 | φ60 | 250—300 | 3.5-6 | 2 |
LY320 | φ320 | φ76 | 250—320 | 3.5-5 | 2 |
LY400 | φ400 | φ108 | 320—400 | 5-6 | 2 |
LY500 | φ500 | φ133 | 400 | 5-6 | 2 |
LY630 | φ630 |
| 450—500 | 5-6 | 2 |
LY800 | φ800 |
| 500 | 5-6 | 2 |
Remark: Special size screw flights could be made as customer's requested.

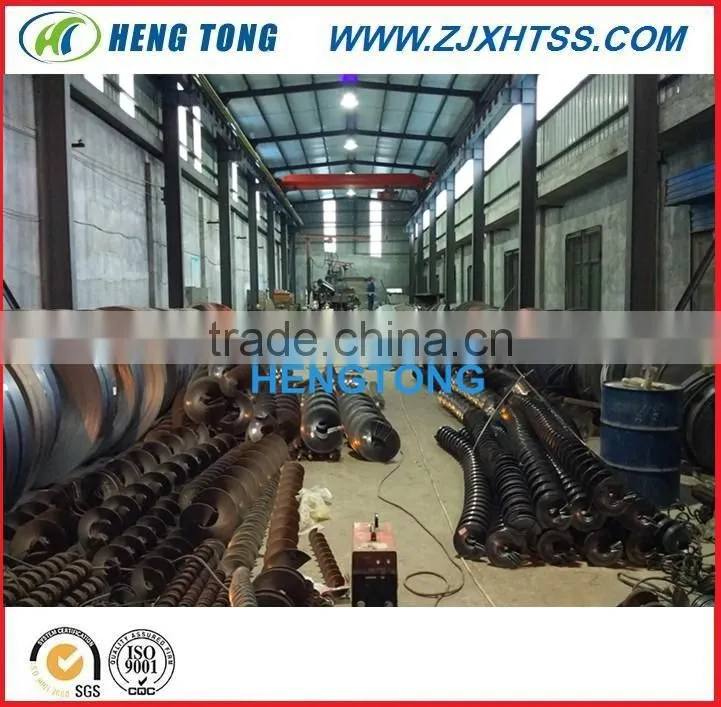

Zhenjiang New Hengtong Conveying Equipment Co., Ltd. specializes in researching, exploiting and manufacturing granular material handling components, grain processing machinery components and engineering plastics. We have passed ISO9001:2000 international quality system certification.
1.How to choose the material ?
HDPE: Tough and flexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than 1g/cm³ .
Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
PU: Extremely abrasion resistance, tough and flexible, and are suitable for handling sharp, cutting and sticky products.
Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications
2. Why choose HENGTONG?
Hengtong company absorbs up-to-date managing conception and pattern, and adopts advanced Enterprise Resource Planning (K3/ERP), Client Relations Management (CRM) and Office Automation (OA) etc. to upgrade company's integrated ability in circulation of material, cash, information and business management that provides a favorable guarantee for meeting customer's needs and improving the satisfaction degree of customers. According to your demand, we will continue to provide quality products. More enthusiastic, considerate, and efficient service is our never-ending pursuit. We pursue Honest Management and cooperation with win-win Business Concepts to work together with you.
