Home > Products > Screw Flight/ Auger Flighting > Continuous Cold Rolled Screw Flight
Continuous Cold Rolled Screw Flight
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HENGTONG |
Product Description
Specifications
1.Good smooth finish2.Easy to installation
3.After cold rolling, the spirals will be hardened and wear-resistance

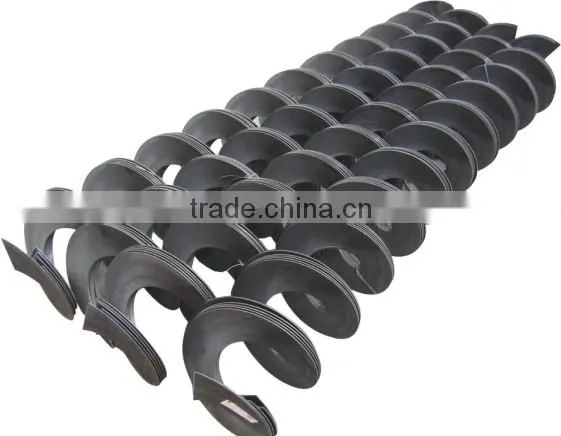

Continuous Cold Rolled Screw Flight
Manufactured by our special technology, our endless cold-rolled spirals have the following features compared to traditional spirals:
1.Good smooth finish, uniform shape and high precision. It's conducive to material conveying,reduce the product damage, and to increase the transporting efficiency.
2.Easy to installation, improve the work efficiency and reduce the production cos.
3.Under the physical and chemical surface treatment, the spirals enhances the anti-rust property and improves the appearance of screw conveyors.
4.After cold rolling, the spirals will be hardened, which will enhance greatly the rigidity and the wear-resistance, say by one time. The HB value is 240.
Carbon Steel Spirals for Screw Conveyors
Model | SLY125 | SLY160 | SLY160 | SLY200 | SLY200 | SLY250 | SLY250 | SLY300 | SLY320 | SLY320 | SLY400 |
Out dia mm | φ125 | φ160 | φ160 | φ200 | φ200 | φ250 | φ250 | φ300 | φ320 | φ320 | φ400 |
Inner dia mm | φ42 | φ42 | φ42 | φ48 | φ48 | φ60 | φ60 | φ60 | φ76 | φ76 | φ100 |
Pitch of the screw mm | 125 | 160 | 120 | 200 | 160 | 250 | 200 | 250 | 320 | 250 | 350 |
Thickness of the blade mm | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5-5 | 3.5-5 | 5 | 5 | 5 | 5 |
Rating length m | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Remarks:according to Customer's Demand
Carbon Steel Spirals for Combine Harvester
Model | SLY94 | SLY120 | SLY125 | SLY150 | SLY160 | SLY200 | SLY420 | SLY500 |
Out dia mm | φ94 | φ120 | φ125 | φ150 | φ160 | φ200 | φ420 | φ500 |
Inner dia mm | φ32 | φ30 | φ45 | φ34 | φ45 | φ45 | φ300 | φ300 |
Pitch of the screw mm | 72 | 110 | 100 | 80 | 130 | 160 | 400 | 460 |
Thickness of the blade mm | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Rating length m | According to Customer's Demand | |||||||
