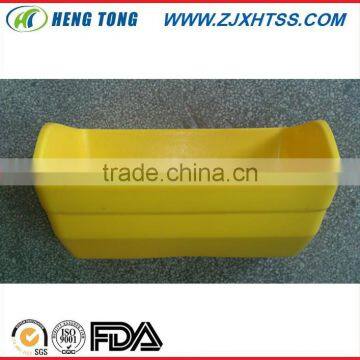

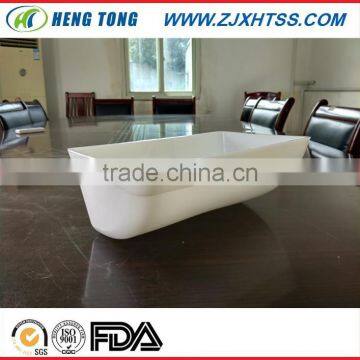

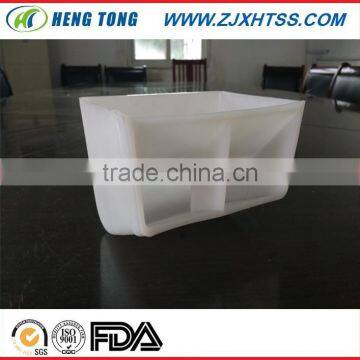

Plastic/Steel Elevator Bucket for grain elevator, Agricultural Elevator Bucket
1.Material: HDPE,Nylon, PU, UHMWPE, Carbon Steel, Stainless Steel
2.Use:Grain Processing, material handling
3.Type:Deep/Low/No Bottom Bucket,Split/Rice Milling/Inductive Bucket/D bucket/ S Bucket/ Steel Bucket
Buckets Type
___________________________________________________________________________________________________

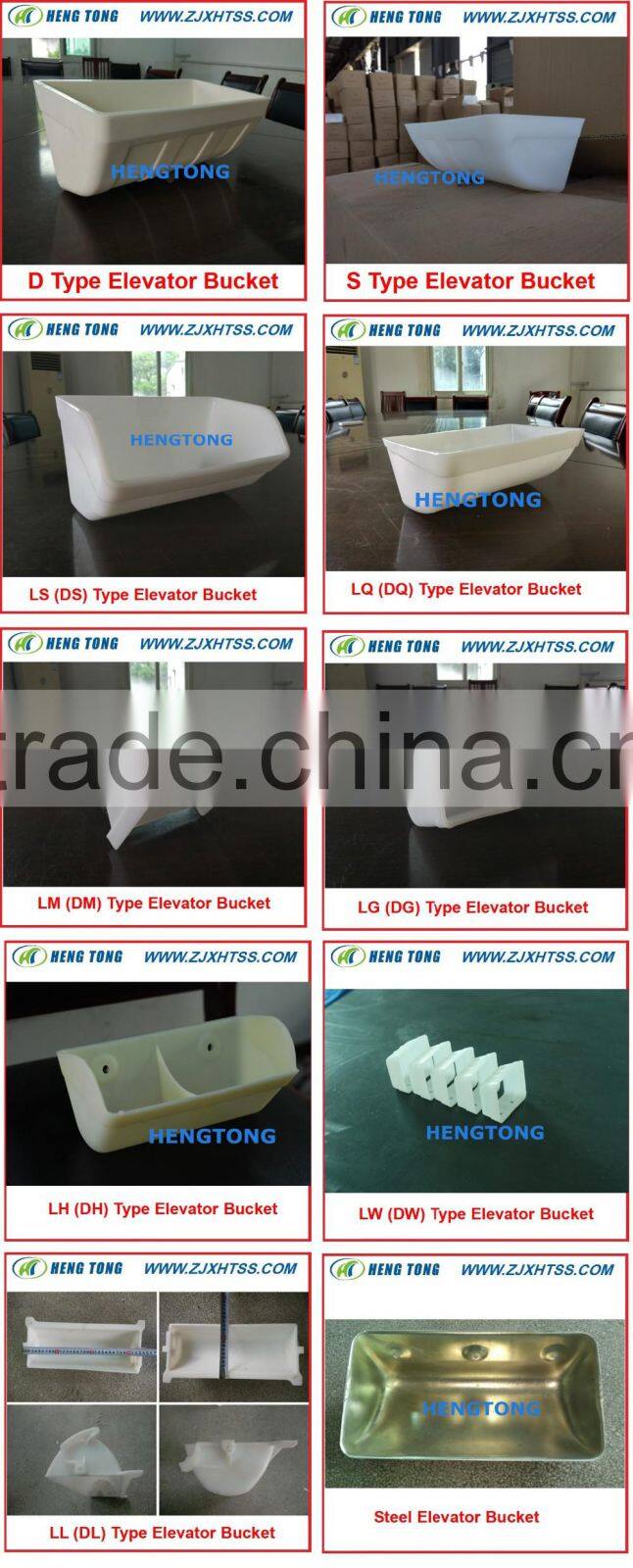

Type:
1.D type Elevator Bucket
2.S type Elevator Bucket
3.LS (DS) type Elevator Bucket
4.LQ (DQ) type Elevator Bucket
5.LM (DM) type Elevator Bucket
6.LG (DG) type Elevator Bucket
7.LH (DH) type Elevator Bucket
8.LW (DW) type Elevator Bucket
9.LL (DL) type Elevator Bucket

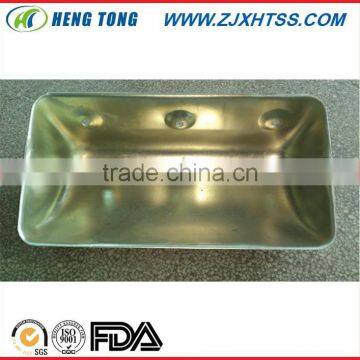

10. Steel Elevator Bucket
Hengtong Elevator Buckets
Features:
1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.
Technical Index:
1.Method of Manufacture : Injection molded.
2.Drilling: Free of charge. Special drilling is offered according to customers demand. (For detailed drilling specifications, pls refer to the related specification chart)
3.Bucket Spacing : Minimum bucket spacing has historically been nominal projection plus+50mm
4.Installation:Norway flat head elevator bolts, flanged bolt, sabre-tooth bolt, and belt bolt.
5.Sanitary Standard: FDAapprovalnon toxic and no causticity itselt, suitable for food industry.
1.How to choose the material ?
HDPE: Tough and flexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than 1g/cm³ .
Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
PU: Extremely abrasion resistance, tough and flexible, and are suitable for handling sharp, cutting and sticky products.
Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications
2. Why choose HENGTONG?
Hengtong company absorbs up-to-date managing conception and pattern, and adopts advanced Enterprise Resource Planning (K3/ERP), Client Relations Management (CRM) and Office Automation (OA) etc. to upgrade company's integrated ability in circulation of material, cash, information and business management that provides a favorable guarantee for meeting customer's needs and improving the satisfaction degree of customers. According to your demand, we will continue to provide quality products. More enthusiastic, considerate, and efficient service is our never-ending pursuit. We pursue Honest Management and cooperation with win-win Business Concepts to work together with you.
Zhenjiang New Hengtong Conveying Equipment Co., Ltd.
zjxhtss.comMobile:0086-13276156775
Tel: 0086-511-84515578
