Boiler Gas Boiler
Specifications:
|
L1PB15-GSHT2 |
L1PB18-GSHT2 |
L1PB20-GSHT2 |
L1PB22-GSHT2 |
L1PB24-GSHT2 |
|
Function |
Home heating and shower water |
|||||
Exhaust way |
Forced with fan |
|||||
Power supply |
220V, 50HZ |
|||||
Input electric power(W) |
105 |
125 |
||||
Net weight(Kgs) |
34 |
35 |
35 |
35 |
36 |
|
Appliance protection rank |
IPX4D |
|||||
Inflation water tank capacity(L) |
6 |
|||||
Heating system Max. water capacity(L) |
116 |
|||||
Heating temperature |
Radiator |
Max. temperature 80 centigrade degree |
||||
Floor heating |
Max. temperature 60 centigrade degree |
|||||
Showering temperature |
Max. temperature 60 centigrade degree |
|||||
Heating thermal efficiency |
Heating |
90.4 |
90.1 |
90.1 |
90.1 |
90.2 |
Hot water |
90.7 |
90.8 |
90.8 |
91.4 |
91.2 |
|
Fixed power input(KW) |
15 |
18 |
20 |
22 |
24 |
|
Fixed power output(KW) |
Natural Gas |
13.5 |
16.2 |
18 |
19.8 |
21.6 |
LPG |
13.5 |
16.2 |
18 |
19.8 |
21.6 |
|
Pressure of heating system |
0.05-0.3MPa |
|||||
Pressure of hot water |
0.03-0.3MPa |
|||||
Dimensions(mm) |
403x325x725 |
|||||
Smoke pipe size |
60x90 |
|||||
Gas pressure(Pa) |
Natural gas:2000, LPG:2800 |
|||||
Pipe diameter |
Gas supply joint: DN20(G 3/4”) |
|||||
Tap water joint: DN15(G 1/2”) | ||||||
Hot water joint: DN15(G 1/2”) | ||||||
Heating water inlet: DN20(G 3/4”) | ||||||
Heating water outlet: DN20(G 3/4”) | ||||||
Product Features:
1) Fashion design, user-friendly operation system can realize human-computer interaction much better;

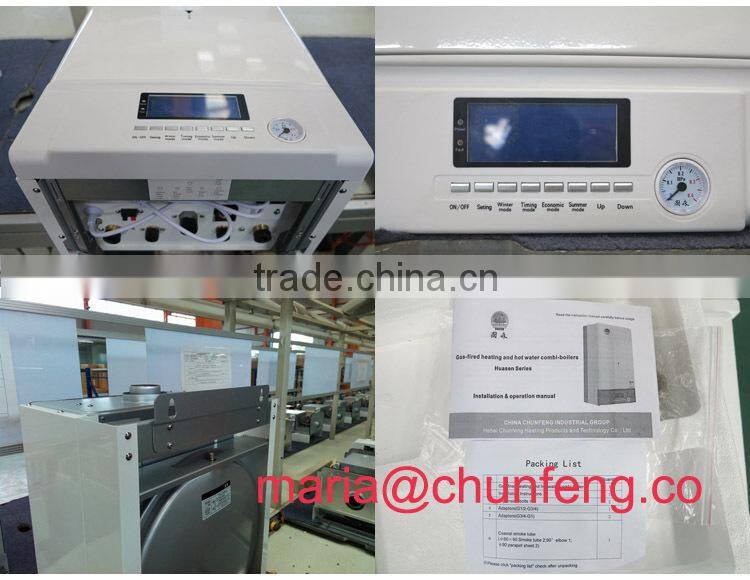

2) LCD displays the water temperature, the operation condition and combustion efficiency;
3) Application of the European combustion and heat transfer technology, improve thermal efficiency, economic energy;
4) Multiple heating mode designed for different ways of heating demand more personalized;
5) Closed negative micro-pressure firing mode, completely cut off with the room, to ensure the indoor air fresh;
6) Using dual heat exchanger structure, heating and hot water system is completely independent;
7) Multiple security protection systems to ensure absolute security.
Product Details:
1) The boilers are 100% inspected before delivery.
2) We can develop and produce the boiler according to your detailed requirements.
3) We can supply the spare parts together with the boilers.
4) We would like to present the boilers with components and parts to lower import tax for customers.
5) We can take pictures when production and inspection after you place order, so that you can control everything easily even if you are at home.
Hebei Chunfeng Heating Products and Technology Co., Ltd. is one of the backbone companies of China ChunFeng Industry Group, which is one of the top 500 companies in China. Since the company was established in 1970, ChunFeng Group has become a leading company in the heating industry with a complete sales network all over China.
Guosen brand gas heating boiler made by Hebei ChunFeng Heating Products and Technology Co., Ltd. has formed own unique style of the technical characteristics with advanced technology of Europe, Japan and Korea and many years heating experience. As a top brand in heating market, Guosen brand boiler has been well received by our customers by its safety, environmental protection, energy-saving and high efficiency.
There are three series of gas water heaters with eight different models such as "double-boiler for heating and bathing", "heating for special" and "High-power" boilers, which can meet different requirements of customers whose living space is over 80 square meters.

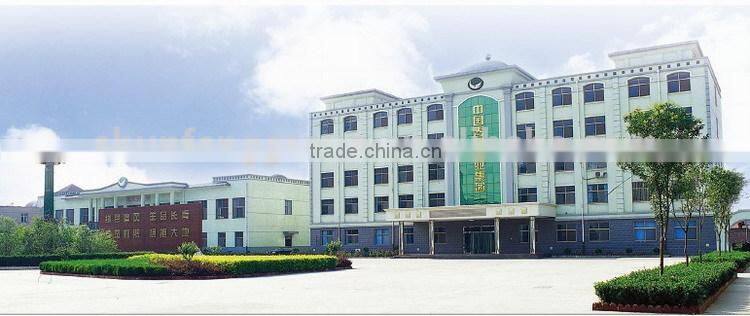

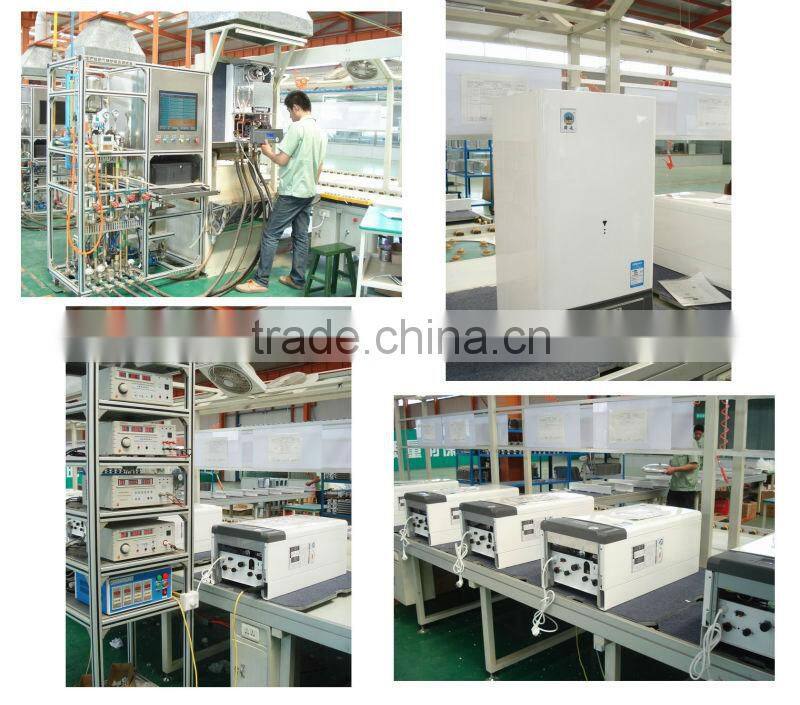

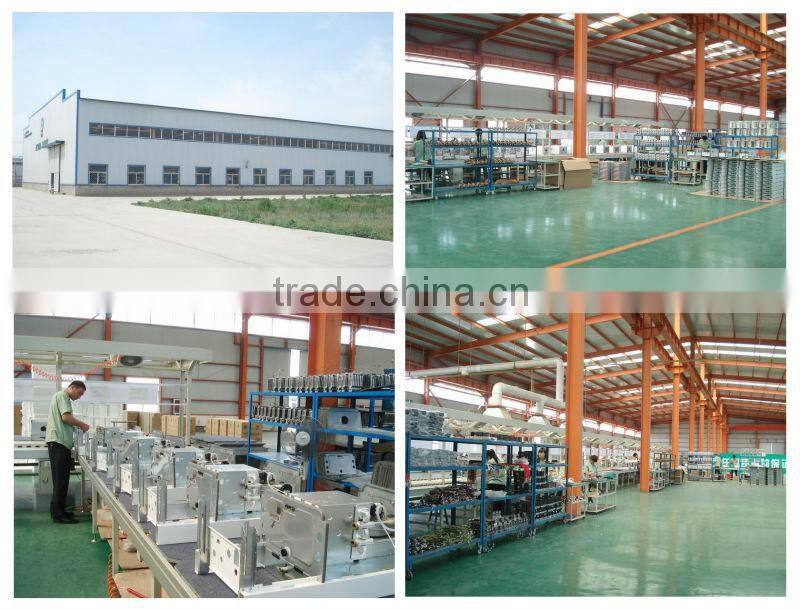

Factory

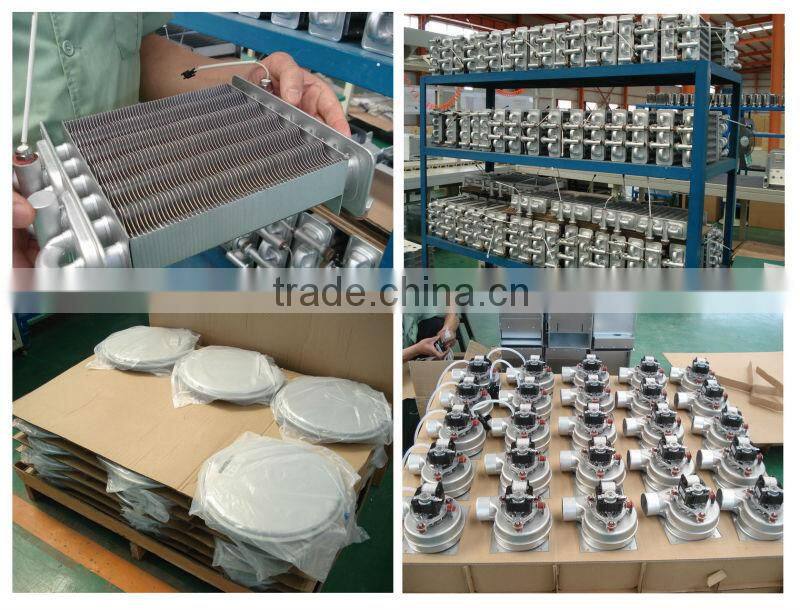

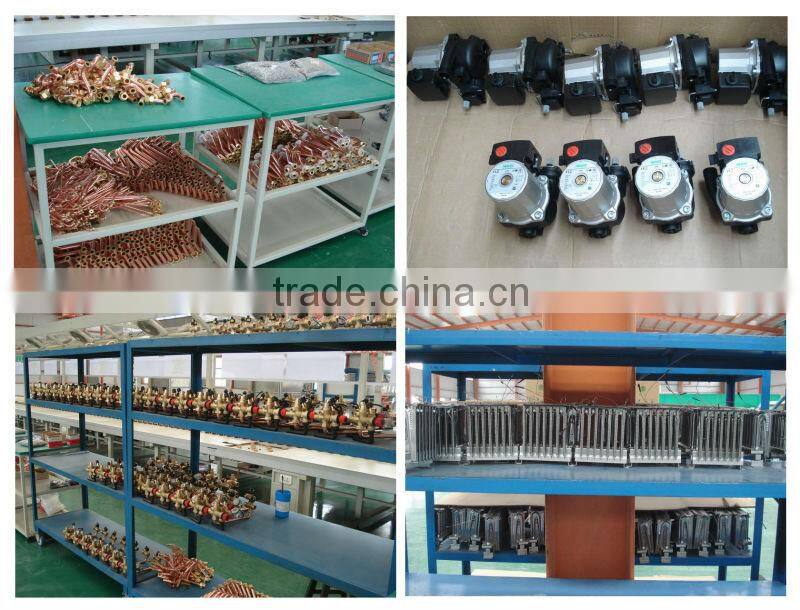

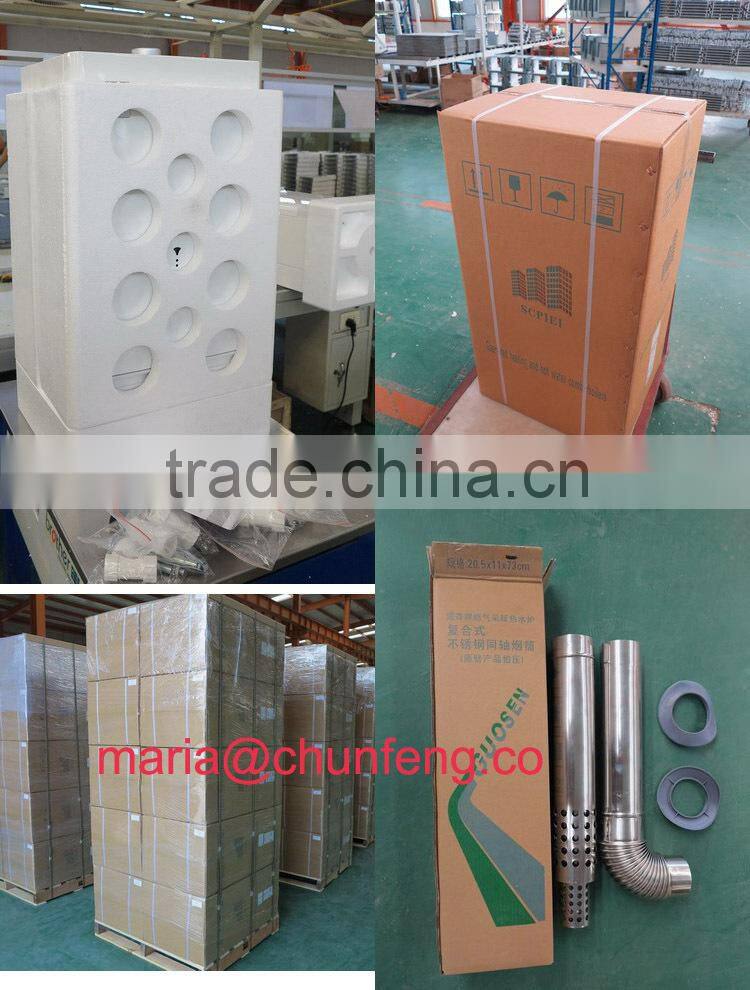

Spare parts

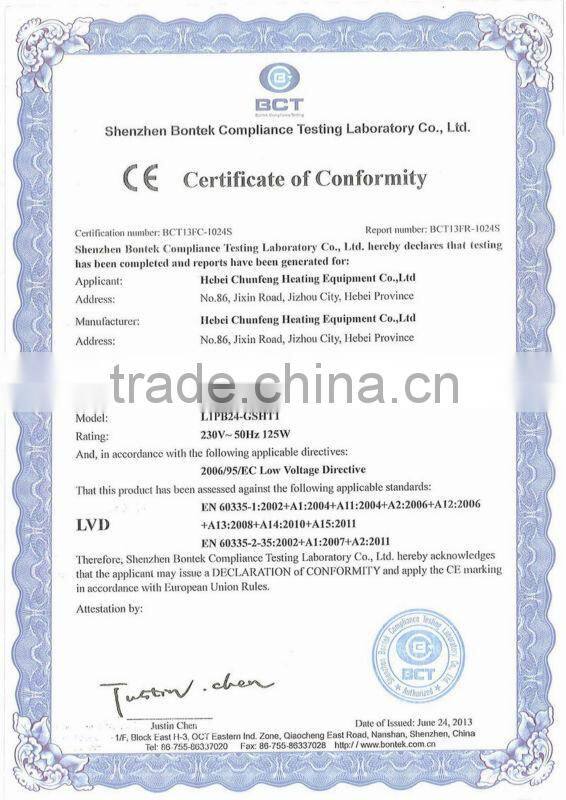

CE Certificate
