Made in China,Changzhou ,High quality,best selling UTP/FTP CAT 6A LAN Cable
- 5000 Carton / Cartons per Month
- SHANGHAI/NINGBO
- D/P D/A Credit Card
- High speed Lan UTP/FTP/UFTP Cable Cat5e Network Cable 1M UTP Cat5e Cable with Connectors Patch Cord
- High speed Lan UTP/FTP/UFTP Cable Cat6 Network Cable UTP Cat6 Cable with Connectors Patch Cord
- Male/Male HDMI Cable 054
- Male to Male with 1.3 Version HDMI Gold plated 055
- 2 RCA cable, car audio cable
- HDMI M/M cable 1.3 059
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | SINOWELL | Model Number: | CAT 6A |
Packaging Details
Bulk packing,blister packing
Product Description

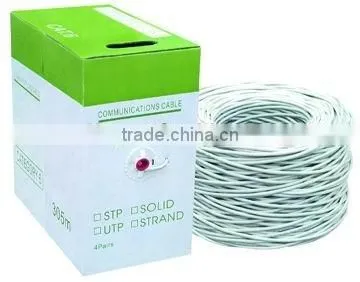

UTP/FTP CAT 6A LAN Cable
SINOWELL CAT 6A CABLES:
10G CAT.6A cabling solution provides transmission performance that exceeda the industry standards for category 6 parameters and supports the operation of 10GBASE-T over 100-meter.10G CAT.6A cabling solutions are qualified for frequencies up to 500MHz
Performance conforms to proposed CAT.6A channel requirement of TIA/EIA-568-B.2-10,Class EA ISO/IEC 11801,CENELEC EN 50173 and IEEE802.3an
Support T568A&B wiring &Easy installation.
Type | Conductor(AWG) | Core Dimension/mm | No.of pairs | Shielding | Nom OD/MM |
UTP | 1/0.57 | 1 | 4 | 7.5 | |
SSTP | 1/0.57 | 1.38 | 4 | Al foil+Braid | 7.5 |
Frequency Mhz | Impedance Ohm | Return loss dB | Attenuation dB/100m | Next worst Pair/dB | |
1 | 100+/-15 | 2 | 66 | 64 | |
10 | 5.9 | 59 | 57 | ||
100 | 19.0 | 44 | 42 | ||
200 | 27.5 | 40 | 38 | ||
250 | 31.0 | 38 | 36 | ||
300 | 34.2 | 37 | 35 | ||
450 | 47.2 | 35 | 33 | ||
500 | 45.3 | 34 | 32 |
Company Profile
Changzhou Sinowell Electronics Co., Ltd. is located in the "City of Cables & Connectors" - Changzhou, which is 220km from Pudong Airport, Shanghai.
We produce all kinds of AV cables, speaker cables, power cables, SCART cables, telephone cables, LAN cables, COAX cables and new HDMI cables.
We also produce raw materials such as copper wires, CCS wires, CCA wires and ALMG wires for finished products.
With 8 years' export experience, our export department can supply not only our own products, but also other electrical items such as connectors, speakers, ISO certified items, remote controls and home theatre systems of good quality.
We do our best to provide high quality products, competitive prices and on-time services. Also we can work as your agent here in China for purchase and export.
It is our great pleasure to develop international markets and march towards a bright future together with you!
