Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > UTP/FTP CAT5E LAN Cable
Negotiable
MOQ: 500 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
VK
Model Number:
CAT 5E
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China,Changzhou ,High Quality,best Selling UTP/FTP CAT 6A LAN CableUS$ 5 - 25.99MOQ: 500 Cartons -
High Speed Lan UTP/FTP/UFTP Cable Cat5e Network Cable 1M UTP Cat5e Cable With Connectors Patch CordUS$ 0.36 - 5.6MOQ: 100 Pieces
-
High Speed Lan UTP/FTP/UFTP Cable Cat6 Network Cable UTP Cat6 Cable With Connectors Patch CordUS$ 0.2 - 5MOQ: 100 Pieces
-
Male/Male HDMI Cable 054NegotiableMOQ: 2000 Pieces
-
Male to Male With 1.3 Version HDMI Gold Plated 055NegotiableMOQ: 3000 Pieces
Place of Origin
Jiangsu, China
Brand Name
VK
Model Number
CAT 5E
Specifications
UTP/FTP CAT5E LAN cableHigh quality

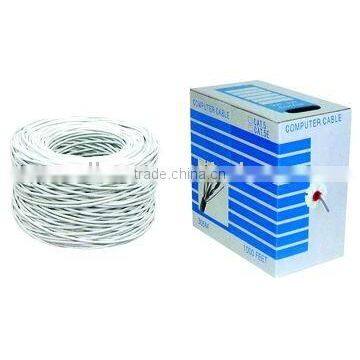

UTP/FTP CAT5E LAN cable
SINOWELL CAT 5E CABLE SPEC:
Structure:PE insulation,Free PVC or PVC Jacket
Standards:ISO/IEC 11801,ANSI/TIA/EIA-568A
Application:Used as workstation out the 100 Base-T4;100Base-TX;100VG-Any LAN;1000 Base-T(Gigabi Ethernet);155Mbps
ATM;622Mbps ATM.
| Type | Conductor(AWG) | Core Dimension/mm | No.of pairs | Shielding | Nom OD/MM |
| UTP | 24AWG | 0.92 | 4 | 5.2 | |
| FTP | 24AWG | 0.96 | 4 | Al foil | 5.7 |
| SFTP | 24AWG | 0.96 | 4 | Al foil+Braid | 6 |
SINOWELL CAT 6 CABLE SPEC:
Structure:PE insulation,Free PVC or PVC Jacket
Standards:ISO/IEC 11801,ANSI/TIA/EIA-568A
Application:Used as workstation out the 100 Base-T4;100Base-TX;100VG-Any LAN;1000 Base-T(Gigabi Ethernet);155Mbps
ATM;622Mbps ATM.
| Type | Conductor(AWG) | Core Dimension/mm | No.of pairs | Shielding | Nom OD/MM |
| UTP | 23/24AWG | 0.95 | 4 | 6.2 | |
| FTP | 23/24AWG | 1 | 4 | Al foil | 6.5 |
| SFTP | 23/24AWG | 1.2 | 4 | Al foil+Braid | 6.8 |
SINOWELL Cat 5e&6 CABLE DESCRIPTION:
| Type compli-ant | Frequency Mhz | Impedance Ohm | Return loss dB | Attenuation dB/100m | Next worst Pair/dB | 36.3Next Power Sum/Dn | ELEFEXT Worst pair/dB | ELEFEXT Power Sum/dB | ||||
| CAT 6 | CAT 5e | 0.772 | 100+/-15 | 19.4 | 1.8 | 67.01 | 64.0 | 66.0 | 63.0 | |||
| 1 | 20.0 | 2 | 65.3 | 62.3 | 63.8 | 60.8 | ||||||
| 4 | 23.0 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | ||||||
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | ||||||
| 10 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | ||||||
| 16 | 25.0 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | ||||||
| 20 | 25.0 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | ||||||
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | ||||||
| 31.5 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | ||||||
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 24.8 | ||||||
| 100 | 20.1 | 22 | 35.3 | 35.4 | 23.8 | 20.8 | ||||||
| 200 | 100+/-22 | 18.0 | 29 | 39.8 | 32.3 | 21.8 | 18.8 | |||||
| 250 | 17.3 | 132.8 | 38.3 | 36.3 | 19.8 | 16.8 | ||||||
