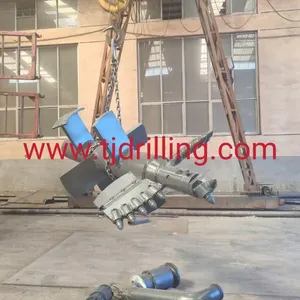

Help Center1000mm Single Column Mixing Auger With Bauer-connector 254mm Used on Bauer-bg20 Rotary Drill Rig for Deep Soil Mixing Pile
Product Spotlights
Related Products
-
Triple-Axis Auger 550mm/Multi Shaft Auger With Mix Paddles for Smw (soil Mix Wall)US$ 1000 - 3000MOQ: 1 Piece -
Sell 1200mm Single Column Mixing Auger With 254mm Cfa Connector Match Bauer Rg16t.bauer Rg18s,bauer Rg21t , Bauer Rg25s Bauer Bg20h ,bauer Bg24h , Bauer Bg28h Scm ToolsUS$ 1000 - 3000MOQ: 1 Piece
-
BAUER Type SMW550MM AUGER Triple-Axis Auger 550mm/Multi Shaft Auger With Mix Paddles for Smw (soil Mix Wall)US$ 1000 - 3000MOQ: 1 Piece
-
Bauer RTG SMW370mm Triple Paddle Soil Mixing Wall Auger Fitted to an #RTG RG22S MixingUS$ 1000 - 3000MOQ: 1 Piece
-
Jintai Smw850mm Triple Paddle Soil Mixing Wall Auger for Soil Mixing Wall PileUS$ 1000 - 3000MOQ: 1 Piece
1000mm single column mixing auger with bauer-cfa coupling 254mm used on bauer-bg15 rotary rig for deep soil mixing pile
1000mm single column mixing auger with bauer-connector 254mm used on bauer-bg20 rotary drill rig for deep soil mixing pile
1000mm single column mixing auger with bauer-connector 254mm used on bauer-bg24 rotary drill rig for deep soil mixing pile
1200mm single column mixing auger with bauer-connector 254mm used on bauer-bg28rotary drill rig for deep soil mixing pile
1500mm single column mixing auger with bauer-connector 254mm used on bauer-rt18s ,rt25s rotary drill rig for deep soil mixing pile
1000mm single column mixing tools with cfa connector 254mm used bauer-bg20 rotary drill rig for deep soil mixing pile
1200mm single single column mixing auger ,1000mm deep soil mixing auger with cfa coupling 254mm match bg15h , bg20h , bg24h , bg28h rg16t rg 21t rg18s rg25s
1500mm single single column mixing auger ,1000mm deep soil mixing auger with cfa coupling 254mm match bg15h , bg20h , bg24h , bg28h rg16t rg 21t rg18s rg25s
1800mm single single column mixing auger ,1000mm deep soil mixing auger with cfa coupling 254mm match bg15h , bg20h , bg24h , bg28h rg16t rg 21t rg18s rg25s
800mm single single column mixing auger ,1000mm deep soil mixing auger with cfa coupling 254mm match bg15h , bg20h , bg24h , bg28h rg16t Single column mixing tools mainly include cfa kelley extension , deep mixing drilling sting and mixing paddles
Tianjin huachang xingye technology co ltd can produce single column mixing tools match different brand , different type and size

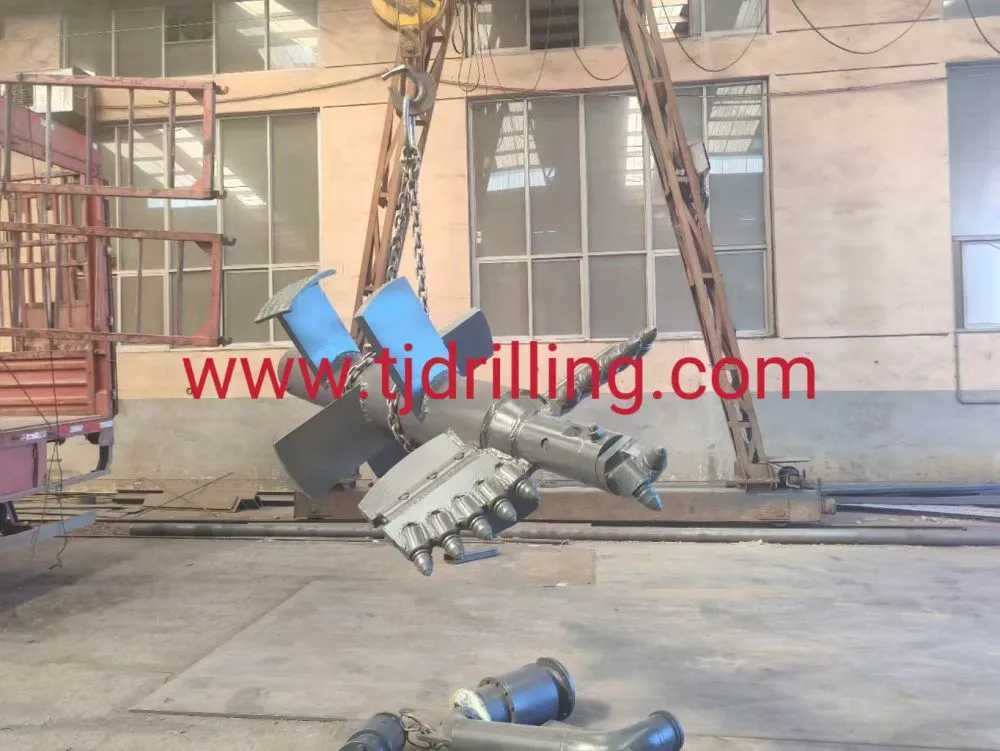

Single Column Mixing (SCM) auger is a specialized tool used in Deep Soil Mixing (DSM) for ground improvement and soil stabilization. Unlike standard drilling augers designed to remove soil, the mixing auger is engineered to blend the existing soil with a binder (typically cement or lime slurry) to create a high-strength "soil-cement" column.
Design and Components
The SCM auger features a distinct architecture designed to maximize mechanical agitation while injecting fluids:
Hollow Stem: The central shaft is hollow to allow the cement slurry or grout to be pumped down to the cutting head and injected into the soil during rotation.
Mixing Blades: Instead of a continuous flight (spiral), the auger has several sets of discontinuous blades or "paddles" set at specific angles. These blades are designed to shear the soil and fold it into the binder.
Cutting Teeth: Located at the bottom of the auger, these teeth break up the natural soil structure to prepare it for mixing.
Counter-Rotating Sections (Optional): Some advanced SCM systems use sections that rotate in opposite directions to prevent "plugging" and ensure a more homogeneous mix.
Key Technical Specifications
When selecting or operating a single column mixing auger, several parameters are critical:
Feature |
Description |
Diameter |
Typically ranges from 600mm to 2500mm, depending on the load-bearing requirements of the project. |
Injection Ports |
Usually located at the bottom of the stem (tip injection) or along the mixing blades to ensure even distribution. |
Flighting Pitch |
The angle of the blades is optimized to move soil up and down within the column rather than transporting it to the surface. |
Torque Requirements |
High torque is necessary to overcome the resistance of stiff clays or dense sands during the mixing process. |
Operational Process
The SCM process generally follows these steps:
Penetration: The auger drills into the ground to the design depth. In some methods, partial grout injection begins during this phase to lubricate the tool.
Injection and Mixing: Once the target depth is reached, the binder is pumped through the hollow stem. The auger is then slowly withdrawn while rotating, thoroughly blending the grout with the soil.
Completion: The result is a solid, cylindrical column of soil-cement that, once cured, provides significantly higher bearing capacity and lower permeability than the original ground.
Common Applications
Foundation Support: Strengthening soft soils to support buildings, embankments, or bridge abutments.
Liquefaction Mitigation: Reducing the risk of soil liquefaction in seismic zones.
Seepage Control: Creating overlapping columns to form a "cutoff wall" for groundwater or containment of contaminants.
Excavation Support: Providing lateral stability for deep trenches or pits.
Tianjin huachang xingye technology co ltd
Email info@tjdrilling.com whatsapp 008618902059907
