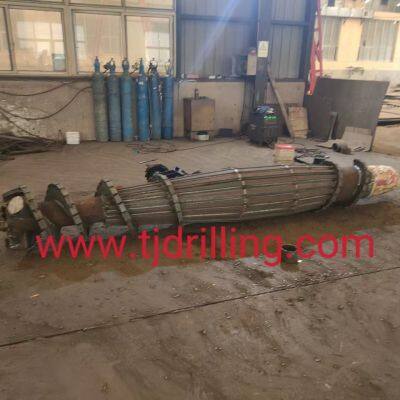

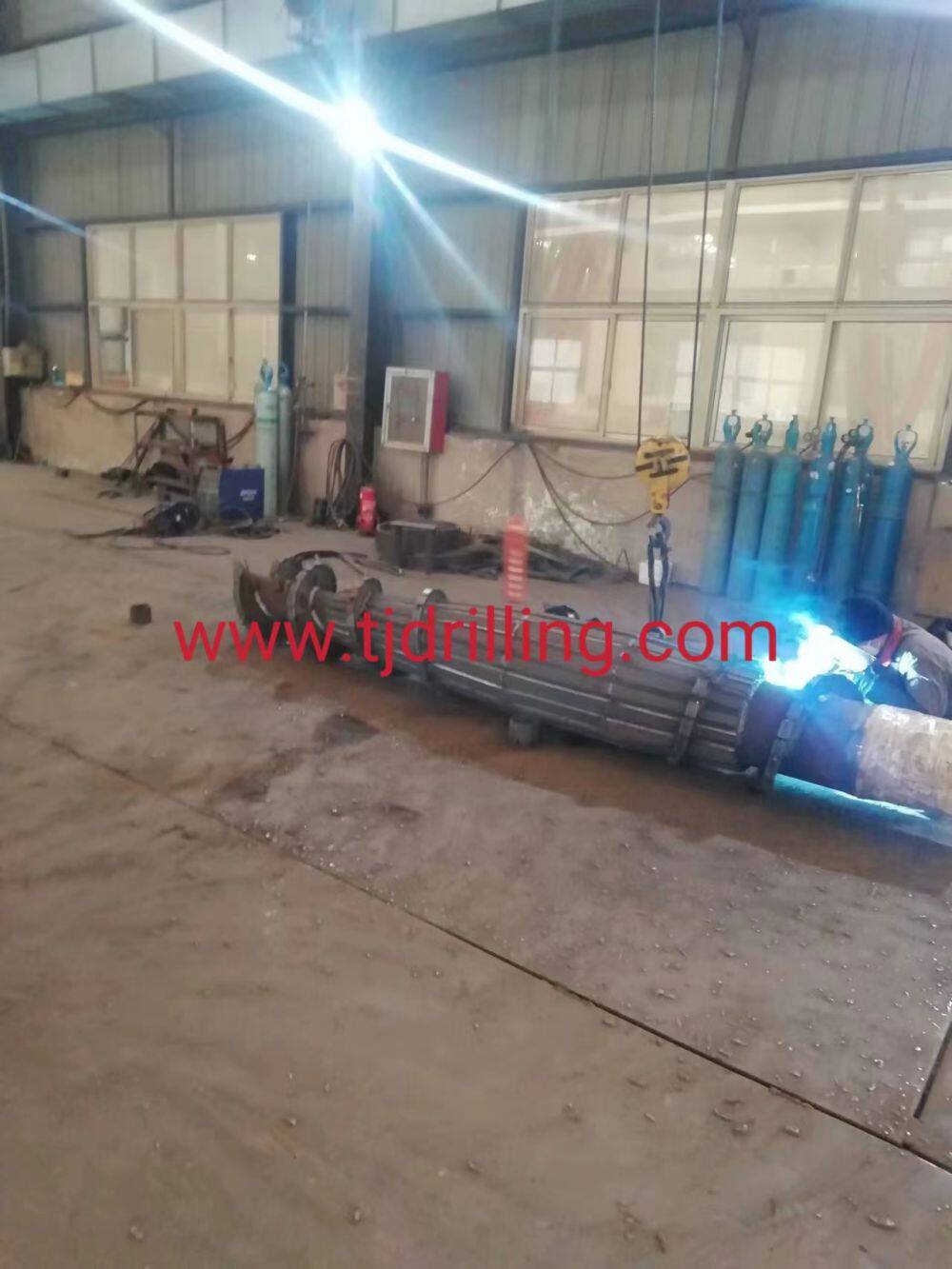

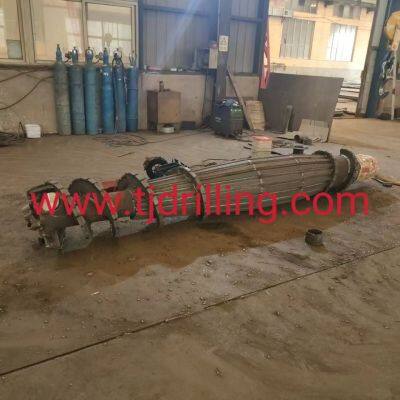

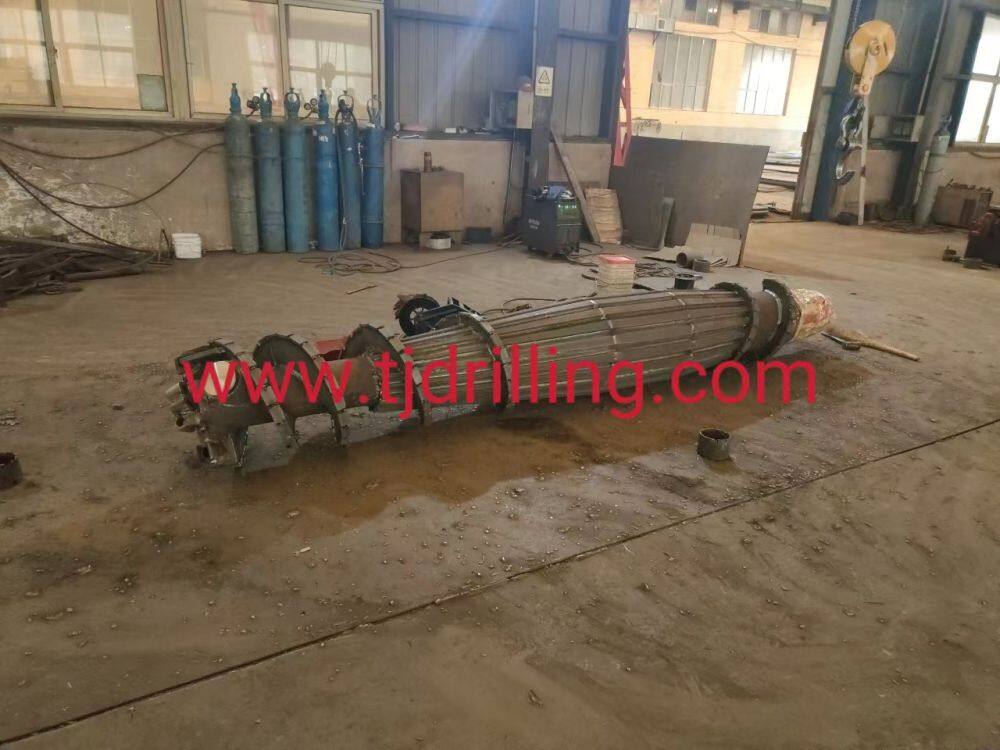

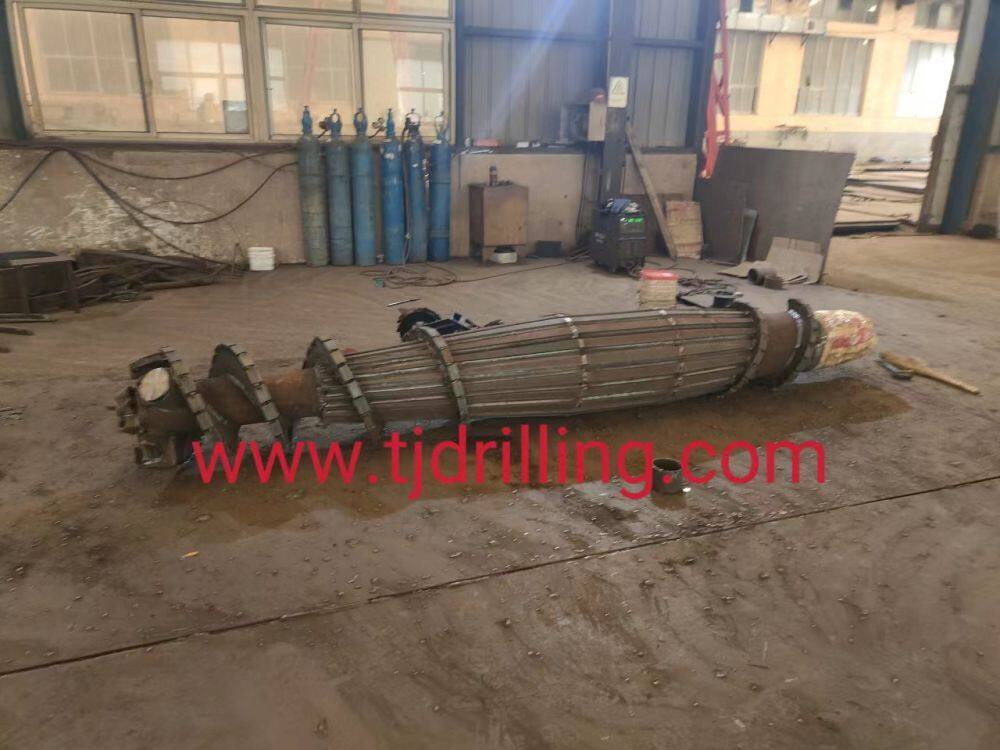

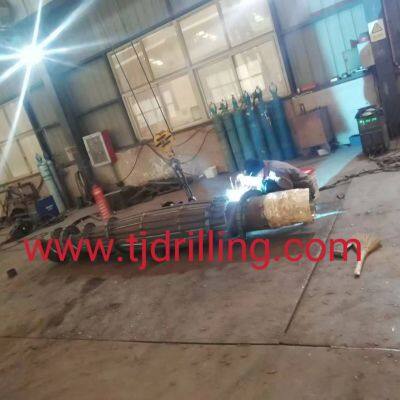

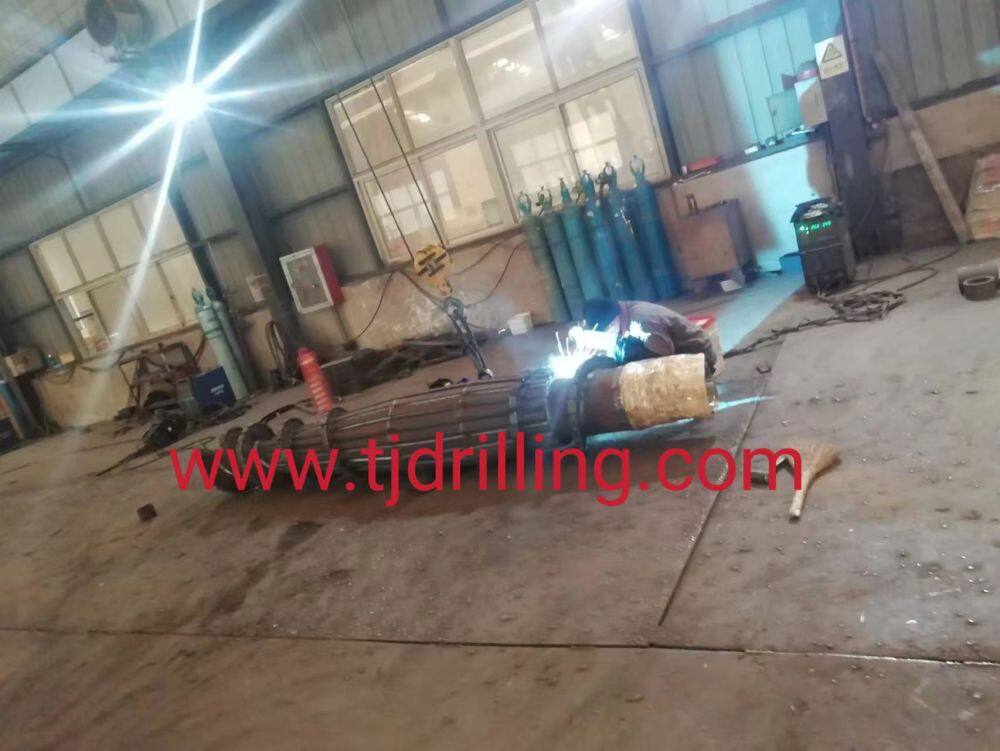

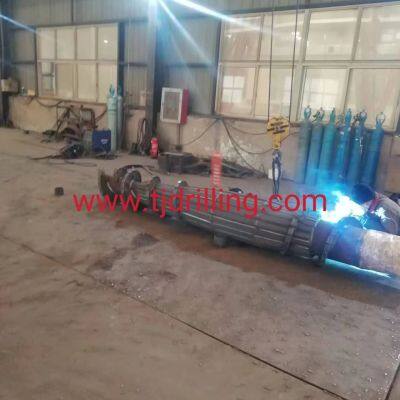

Help CenterSell Fdp Auger 400mm , 510mm,600mm for Full Displacement Pile Match Bauer Casagrande ,liebherr Full Displacement Auger
Related Products
-
Triple-Axis Auger 550mm/Multi Shaft Auger With Mix Paddles for Smw (soil Mix Wall)US$ 1000 - 3000MOQ: 1 Piece -
Sell 1200mm Single Column Mixing Auger With 254mm Cfa Connector Match Bauer Rg16t.bauer Rg18s,bauer Rg21t , Bauer Rg25s Bauer Bg20h ,bauer Bg24h , Bauer Bg28h Scm ToolsUS$ 1000 - 3000MOQ: 1 Piece
-
BAUER Type SMW550MM AUGER Triple-Axis Auger 550mm/Multi Shaft Auger With Mix Paddles for Smw (soil Mix Wall)US$ 1000 - 3000MOQ: 1 Piece
-
Bauer RTG SMW370mm Triple Paddle Soil Mixing Wall Auger Fitted to an #RTG RG22S MixingUS$ 1000 - 3000MOQ: 1 Piece
-
Sunward Smw850mm Triple Paddle Soil Mixing Wall Auger for Soil Mixing Wall PileUS$ 1000 - 3000MOQ: 1 Piece
Sell fdp auger 400mm , 510mm,600mm for full displacement pile match bauer casagrande ,liebherr full displacement auger
Sell FULL DISPLACEMENT AUGERS 400mm for full displacement pile match bauer , casagrande ,liebherr full displacement pile
Sell FULL DISPLACEMENT AUGERS 5100mm for full displacement pile match bauer , casagrande ,liebherr full displacement pile
Sell FULL DISPLACEMENT AUGERS 600mm for full displacement pile match bauer , casagrande ,liebherr full displacement pile
Sell FULL DISPLACEMENT AUGERS 350mm for full displacement pile match bauer , casagrande ,liebherr full displacement pile
Sell fdp auger 400mm for full displacement pile match bauer casagrande ,liebherr full displacement auger
Sell fdp auger 510mm for full displacement pile match bauer casagrande ,liebherr full displacement auger
Full Displacement Augers type 350mm, 400mm
510mm and 600mm guarantee a cost-efficient,
environmental-friendly and safe production of
cast-in-situ concrete piles with a vibration-free
drilling method.
Sell fdp casing joint 400mm used for full displacement auger
Sell fdp casing joint 510mm used for full displacement auger
Sell fdp casing joint 600mm used for full displacement auger
Sell fdp casing pipe 400mm used for full displacement auger
Sell fdp casing pipe 510mm used for full displacement auger
Sell fdp casing pipe 600mm used for full displacement auger
Sell fdp casing pipe 400mm used for full displacement auger
Sell fdp extension pipe 510mm used for full displacement auger
Sell fdp extension pipe 600mm used for full displacement auger
Sell HEX160 HEXAGONAL JOINT match casagrande cfa rig
Sell HEX200 HEXAGONAL JOINT match casagrande cfa rig
Sell hex 254mm hexagonal joint match bauer cfa rig
Sell cfa coupling hd4, hd5 ,xhd5 25hd5 match soilmec cfa rig
Soil Displacement piles are bored cast in situ
concrete piles constructed by advancing a
displacement boring tool into the ground with
a rotary drilling rig using both torque and
crowed force
FDP Lost Bit: It differs from the standard
technique by a detachable (sacrifi cial)
bottom drill bit, a hollow drill stem with a
larger internal diameter and a concrete
hopper that is mounted at the top of the
hollow stem.
Drilling of the displacement tool into the
ground by rotating and pushing of the tool.
The soil is loosened by the starter auger
and then pushed laterally into the
surrounding soil by the displacement body.
On reaching the fi nal depth the
reinforcement cage is inserted into the
hollow drill stem so the bottom drill bit
is lost.
During extraction of the displacement tool,
concrete is simultaneously discharged
by the concrete hopper and placed
unpressurised in the pile trough the hollow
drill stem
Tianjin huachang xingye technology co ltd email info@tjdrilling.com whatsapp 008618902059907
Send Inquiry to This Supplier
