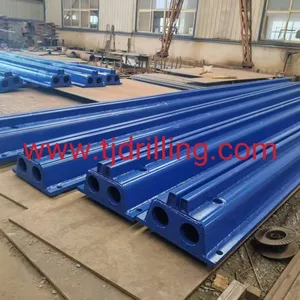

600mm diaphragm wall stop end used in diaphragm wall pile construction
600mm diaphragm wall water stop end elements for diaphragm wall pile construction
600mm diaphragm wall flat stop end elements for diaphragm wall pile construction
Diaphragm wall stop end elements 600mm width used for diaphragm wall pile construction
600mm slurry wall stop end elements used for slurry wall construction
600mm stop end of diaphragm wall used for diaphragm wall pile construction work
600mm diaphragm wall water stopend elements for diaphragm wall pile
800mm diaphragm wall stop end used in diaphragm wall pile construction
800mm diaphragm wall water stop end elements for diaphragm wall pile construction
1000mm diaphragm wall stop end used in diaphragm wall pile construction
1000mm diaphragm wall water stop end elements for diaphragm wall pile construction
1200mm diaphragm wall stop end used in diaphragm wall pile construction
1200mm diaphragm wall water stop end elements for diaphragm wall pile construction
500mm diaphragm wall stop end used in diaphragm wall pile construction
500mm diaphragm wall water stop end elements for diaphragm wall pile construction
During production of cast in situ concrete diaphragm walls, the most important factor, especially to achieve a watertight joint, will be the use of the right stop-end elements.
The stop-end elements contain the concrete on the lateral side meanwhile they create a particular casting profile that offers a high seal against water infiltrations.
Stop End Elements are coupled together through special steel shafts even better special o-rings, which ensure a perfect seal among the areas of the diaphragm.

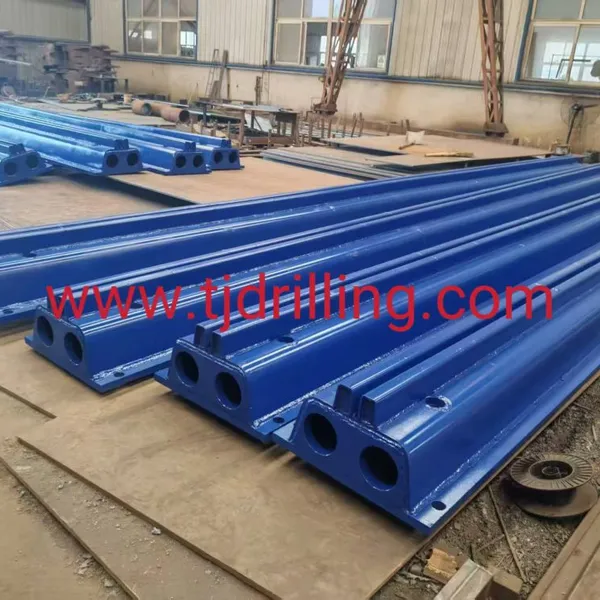

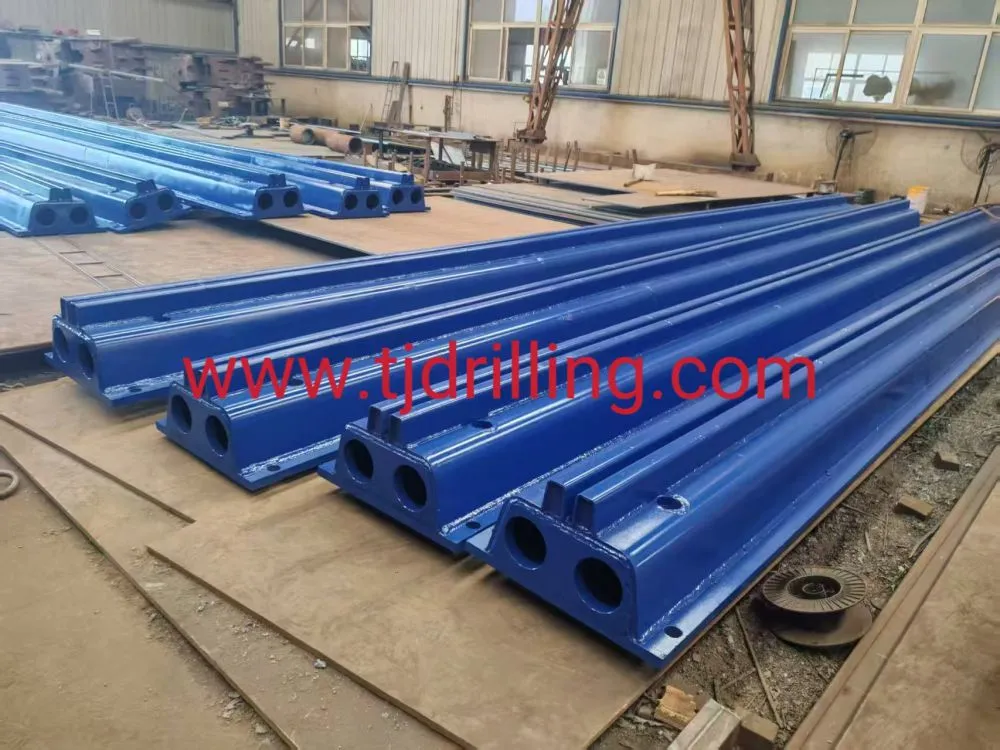

Stop End Element is made of sheet metal welded and its special profile is achieved by a process of press bending and finally an internal reinforcing structure increases its strength and avoids the risk of deformation.
Water stop joint
Guide head
TIANJIN HUACHANG XINGYE TECHMOLOGY CO LTD can supply DIAPHRAGM WALL WATER Stop End Elements in various widths and lengths. They are easily jointed each other through special steel. The diaphragm wall Stop End Elements are: head element that is used for their lifting and extraction, intermediate elements and element shoe (Starter). In addition, to facilitate the use of Stop End Elements, TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD manufactures a chisel cleaner kit (dedicated to the cleaning of the channel guide) and a Platform Suspension Jig (dedicated to the support of Stop End Element during installation).
Width mm |
A |
B |
C |
LENGTH |
500mm |
480MM |
236MM |
220MM |
3M,6M,9M |
600mm |
580MM |
336MM |
220MM |
3M,6M,9M |
800mm |
780MM |
536MM |
220MM |
3M,6M,9M |
1000mm |
980MM |
736MM |
220MM |
3M,6M,9M |
1200mm |
1180MM |
936MM |
220MM |
3M,6M,9M |
Mexico 600mm diaphragm wall stop end elements,canada/Vancouver /Calgary toronto /Ottawa 600mm diaphragm wall stop end elements colombia Medellín,Cartagena,Barranquilla,Tunja 600mm diaphragm wall stop end elements,Vietnam/Hà Phòng/Thành Chí Minh 600mm diaphragm wall stop end elements,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbane 600mm diaphragm wall stop end elements,thailand 600mm diaphragm wall stop end elements,Malaysia /Singapore Indonesia/Jakarta
Pilipines Россия/russia 600mm diaphragm wall stop end elements,belize/Puerto Rico/Guatemala/San salvador/Honduras 600mm diaphragm wall stop end elements,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana 600mm diaphragm wall stop end elements,usa ,america los Angeles/new york/California 600mm diaphragm wall stop end elements,South Africa Kazakhstan 600mm diaphragm wall stop end elements, spain Português germany italy ,greece romania serbia,france 600mm diaphragm wall stop end elements south africa 600mm diaphragm wall stop end elements,south korea 600mm diaphragm wall stop end elements, japan 600mm diaphragm wall stop end elements , taiwan , hong kong 600mm diaphragm wall stop end elements,UAE DUBAI 600mm diaphragm wall stop end elements , Israel 600mm diaphragm wall stop end elements
Tianjin huachang xingye technology manufacture two type diaphragm wall stop end , round stop end pipe , flat stop end elements ,also produce diaphragm wall round stop end pipe extractor from 500mm-3000mm,flat stop end extractorB500-1200MM,diaphragm wall joint tube extractor600mm
