cfa coupling 254mm match bauer-bg24 600mm cfa auger used on bauer-bg24 cfa drill rigs for cfa pile foundation work
cfa connector 254mm match bauer-bg28 800mm cfa auger used on bauer-bg28 cfa drill rigs for cfa pile foundation work
cfa coupling 254mm match bauer- bg25 cfa auger used on bauer-bg25 cfa drill rigs for cfa pile foundation work
cfa connector 254mm match bauer-bg26 800mm cfa auger used on bauer-bg26 cfa drill rigs for cfa pile foundation work
bauer-bg36 cfa coupling 254mm used on 600mm cfa auger match bg36 cfa drill rig for cfa pile foundation work
bauer- bg24 cfa coupling 254mm used on 600mm cfa auger match bg24 cfa drill rig for cfa pile foundation work
cfa coupling 254mm used on 600mm cfa auger match bg28 cfa drill rig for cfa pile foundation work
cfa connector 254mm used on bauer-bg20 600mm fdp auger for full displacement pile
Cfa coupling 254mm usd on bauer-bg28 500mm fdp auger for full displacement pile
In the geotechnical tool ecosystem, the 254 mm coupling (or connector) is the standard, heavy-duty hexagonal or round-keyed joint system utilized for small-to-medium diameter string configurations. It serves as the mechanical connection interface for CFA (Continuous Flight Auger) strings, FDP (Full Displacement Pile) drill pipes, and SCM / SMW (Soil Mixing Wall) tools.
1. Equipment & Diameter Compatibility
The 254 mm connection is engineered to balance torque transmission capability with internal concrete flow requirements.
Auger String Sizes: It is most commonly paired with CFA auger strings ranging from $\varnothing$ 450 mm to 610 mm (and occasionally up to 630 mm). Larger setups (e.g., 770 mm or 880 mm augers) typically step up to the heavier 368 mm Bauer- coupling.
Rig Compatibility: Tools utilizing the 254 mm connector are built to match the torque envelopes of Bauer-BG-series rotary drilling rigs (like the BG 20 H, BG 24 H, or BG 28 H) and RTG multi-utility piling rigs (such as the RG 16 T, RG 19 T, and RG 21 T).
2. Core Technical Anatomy
The 254 mm assembly consists of a male and female pair engineered for quick on-site connection and maximum structural rigidity under massive crowd and torque forces.
Component |
Engineering Details |
Male Connector |
Precision-machined solid or thick-walled neck that slides into the receiving joint. Features internal pathways for concrete/grout delivery. |
Female Socket |
Heavy-walled reinforced sleeve welded to the core tube of the CFA auger or drill pipe. |
Locking Mechanism |
Uses a high-tensile joint pin (locking pin) arrangement to prevent uncoupling or shifting during counter-rotation or extraction. |
Sealing System |
High-durability internal O-rings designed to withstand high concrete pumping pressures and prevent slurry ingress from the borehole. |
3. Application Variants
Depending on your exact tool string, the 254 mm specification applies to a few different components:
CFA Augers: Applied directly to the core tube of the flighting sections (e.g., 3-meter, 6-meter, or 10-meter extension strings) and the drilling heads.
FDP Drill Pipes: Used on the extension stem above the displacement body to transfer high crowd forces and torque deep into the ground.
SMW Triple-Axis Paddles: Found on multi-shaft mixing augers (like the SMW 370 mm or 550 mm sets) to connect the driving stem to the rig's multi-gear box.
Operational Check: Always verify the seal integrity of the O-rings inside the 254 mm female socket prior to lowering the string. A damaged seal can allow pressurized concrete to bleed into the joint seams, jamming the locking mechanism and severely complicating tool teardown at the end of the shift.

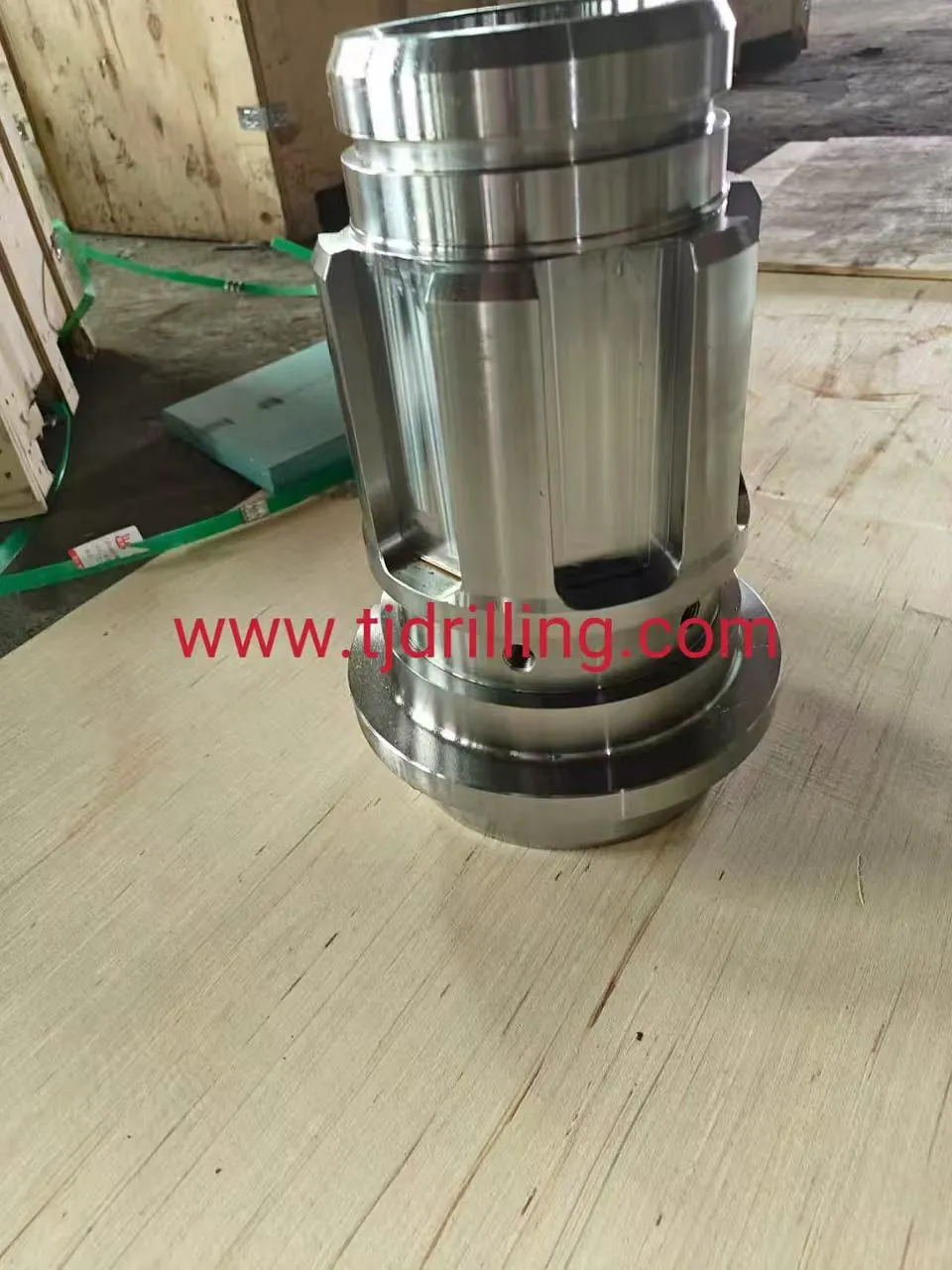

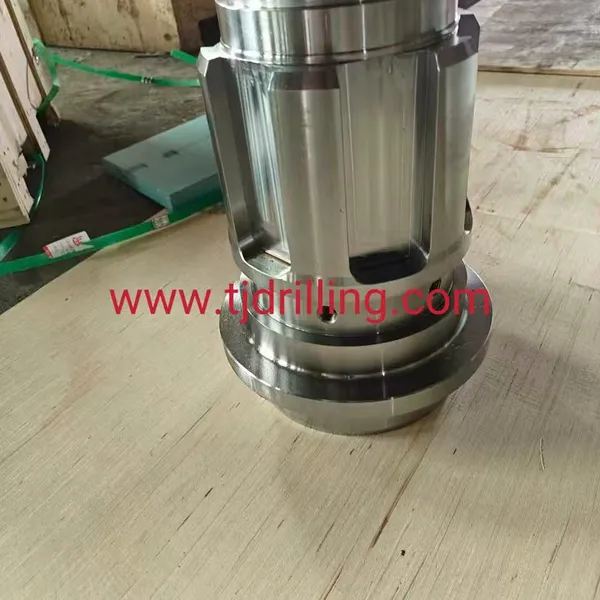

Hexagonal joint Continuous Flight Auger rod Continuous Flight Auger with hexagonal coupling
CFA diameter range from 400 to 1400 mm
CFA pilot auger can be equipped with double start cutter head for soil or rock, supplied with interchangeable picks or teeth with bottom or side concrete exit by steel plug and recovery chain
size
Diameter MM
Picth mm
Flight thckness mm
Length mm
Φ300
280mm
280
16
2-10m
Φ400
380mm
300
16
2-10m
Φ500
480mm
350
16
2-10m
Φ600
580mm
400
20
2-10m
Φ700
680mm
400
20
2-10m
Φ800
780mm
500
20
2-10m
Φ900
880mm
500
25
Φ1000
980mm
600
25
Tianjin huachang xingye technology co ltd
Email info@tjdrilling.com whatsapp 008618902059907
