Help CenterSell 600mm Mechanical Diaphragm Wall Grabs Dia600mm Match Liebherr Crane Used for Construction of Slurry Wall
Related Products
-
600mm Diaphragm Wall Stop End Used in Diaphragm Wall Pile ConstructionUS$ 1000 - 1500MOQ: 1 Piece -
400mm Cucharas Mecanicas de Muro Pantalla 9 ton Para ESPESOR DE MURO DESDE 400mm la Cimentacion Profunda ParaUS$ 30000 - 500000MOQ: 1 Piece
-
1000mm CUCHARAS MURO PANTALLA 1000*2800mm,15ton Para la Cimentacion Profunda Para plotesUS$ 30000 - 50000MOQ: 1 Piece
-
400mm Clamshell Mecânico Paredes Diafragma Com Espessura Entre 400mm contudo as Empresas de FundaçõesUS$ 30000 - 50000MOQ: 1 Piece
-
400mm CUCHARAS MURO PANTALLA 9ton Para la Pilotes Cimentacion ProfundaUS$ 30000 - 50000MOQ: 1 Piece

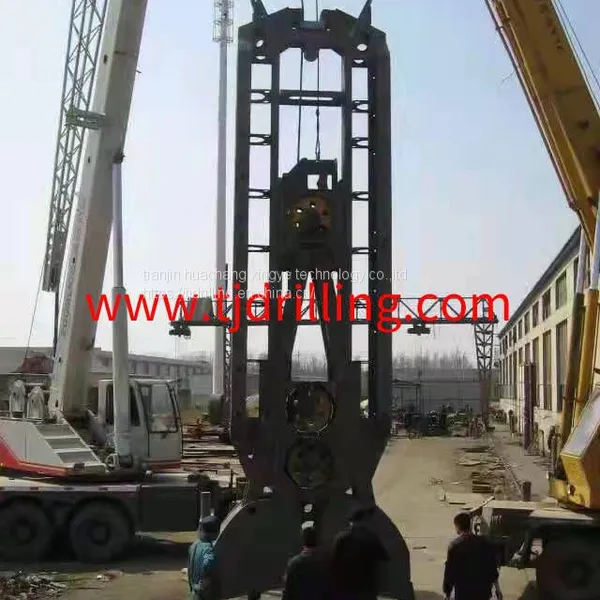

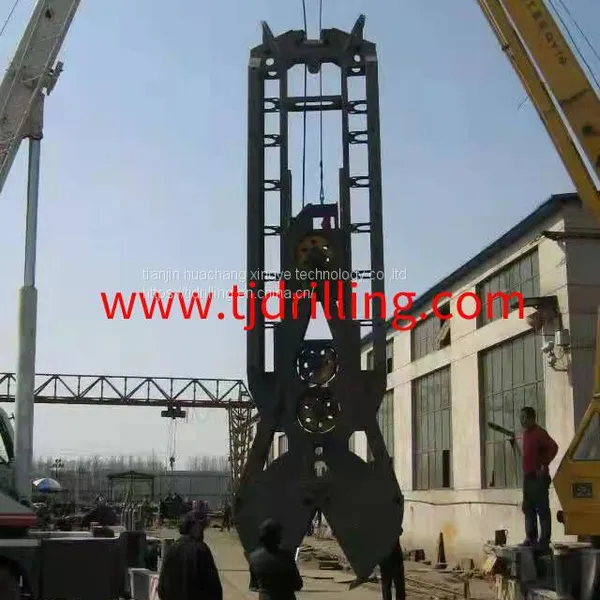

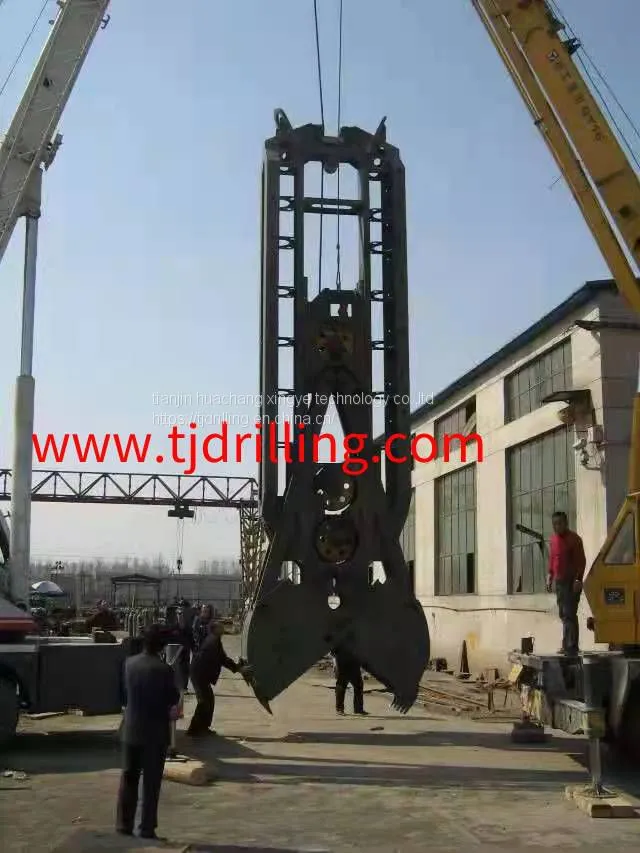

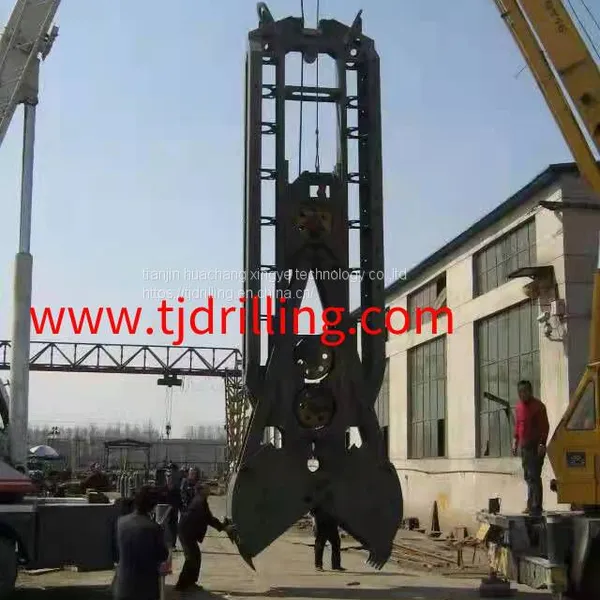

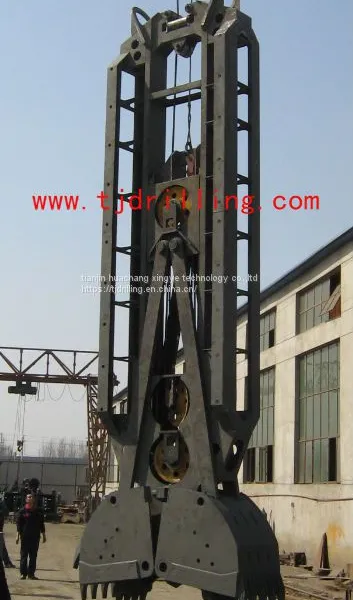

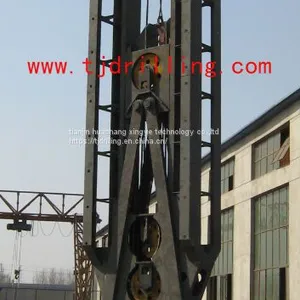

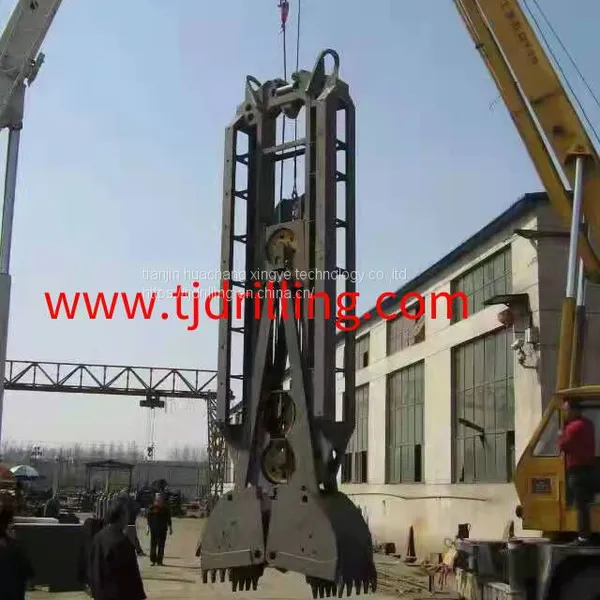

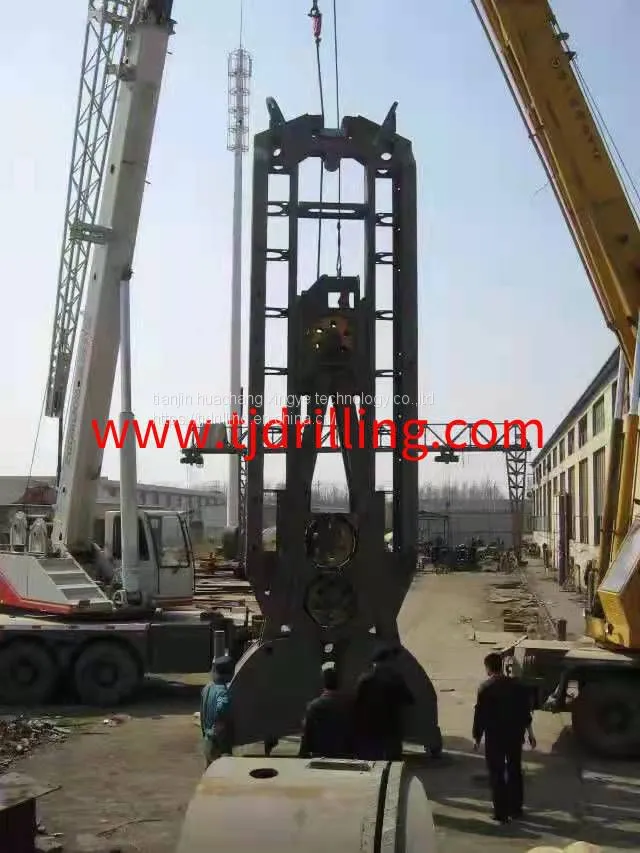

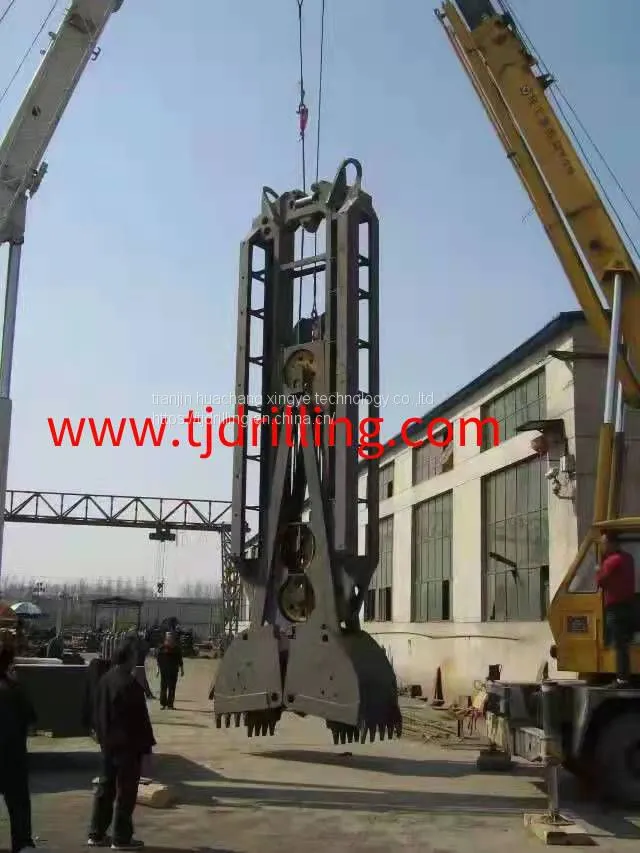

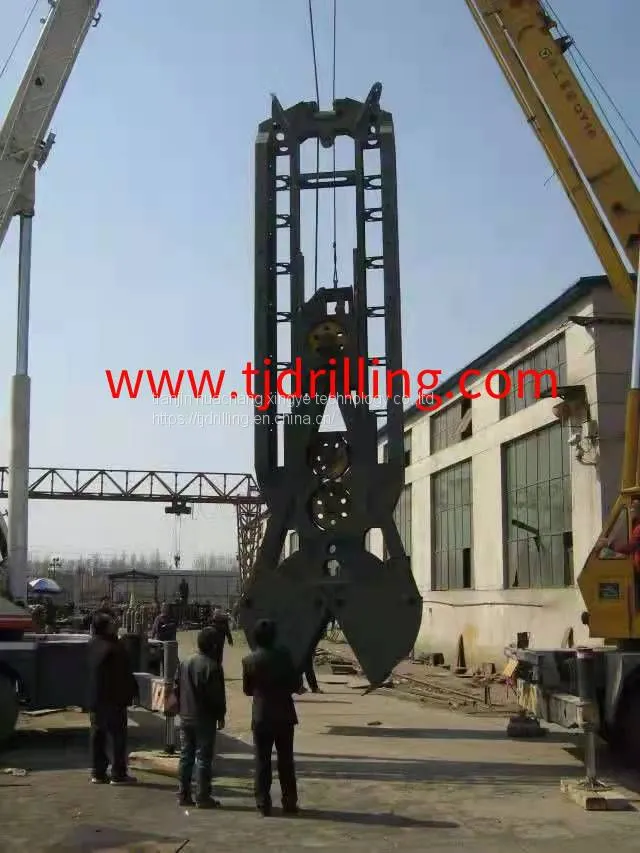

Sell 600mm Mechanical Diaphragm Wall Grabs Dia600mm match liebherr crane Used for construction of slurry wall
Sell 800mm Mechanical Diaphragm Wall Grabs Dia600mm match liebherr crane Used for construction of slurry wall
Sell 400mm Mechanical Diaphragm Wall Grabs Dia600mm match liebherr crane Used for construction of slurry wall
Sell 1000mm Mechanical Diaphragm Wall Grabs Dia600mm match liebherr crane Used for construction of slurry wall
Mechanical Diaphragm Wall Grabs are the best solution to excavate diaphragm walls in all soil conditions up to a soil hardness of 70 mPA as light chisseling work is possible
Tianjin huachang xingye technology co ltd can produce 400-1200mm mechanical diaphragm wall grab weight can design according to client requirement
Mechanical diaphragm wall Grab head 600mm match bauer soilmec liebherr
diaphragm wall grab Grab head 800mm match bauer soilmec liebherr diaphragm wall grab Grab head 1000mm match bauer soilmec liebherr diaphragm wall grab Grab head 1200mm match bauer soilmec liebherr diaphragm wall grab bushing match bauer soilmec liebherr diaphragm wall grab
bushing match bauer soilmec liebherr diaphragm wall grab
Wall width |
mm |
600 |
Pulley number |
pc |
5 |
Closing force |
KN |
1100 |
Closing/opening time |
sec |
8/5 |
Open shell width |
mm |
2800 |
capacity |
L |
1200 |
weight |
kgs |
14500 |
We also have diaphragm wall round stop end pipe extractor size from 400-1200mm for extract the joint tube of diaphragm wall and have diaphragm wall water stop end elments extractor for B500MM ,B600MM , B800MM stop end
Pile round chisel 600mm-3000mm for piling foundation work Chisel with a cross cutter inside for rock with a compressive strength greater than 1500 kg / cm ². The teeth are made of manganese steel. Pile Cross Chisel 600mm-3000mm for piling foundation work pile Chiesel 600mm-3000mm for piling foundation work Chisels with tangential cutting bit for rock with a compressive strength of not more than 1500 Cross cut Chisel | Rectangular chiselkg/cm ². Diaphragm wall chisel cutter Casing size mm Diameter mm Height mm Weight 640 530 3000 1550 700 590 3000 1870 750 640 3000 2020 800 690 3200 2280 880 770 3200 2455 900 770 3200 2600 1000 890 3200 2950 1080 970 3200 3200 1100 970 3200 3550 1200 1070 3500 4880 1300 1190 3500 5000 1500 1370 3500 5320 1800 1640 3500 7650 2000 1840 4000 8900 2500 2220 4000 13250 3000 2700 4000 16500
Tianjin huachang xingye technology co ltd email info@tjdrilling.com whatsapp 008618902059907 cell 008615222875497
