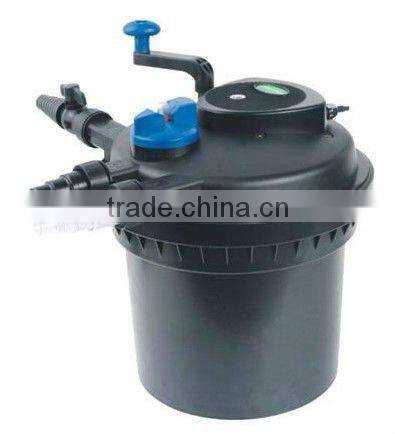

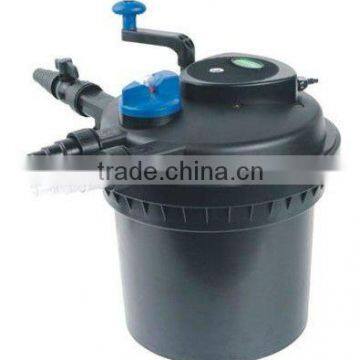

(CPF-5000) Gardening Pond Bio-filter

Specifications

suitable for gardening ponds and commercial fish farms and purification

Features:

1. Effective pressure filters with integrated UVC clarifier.

2. Rinsing with discharge into channel like waterfull or watercourse, can be operated even if the filter is buried in the ground.

3. Polluted water is pumped into a sealed, closed system, duringwhich a working pressure of 3m water head can build up.

4. The patent technology make maintenace convenience.

5. The newest design make the filtrate area one time than before, can improve filtrate effect in highest degree and extend the maintain period.

Model CPF-5000
dimensions in mm(l*w*h) 380*380*410
max flow-through(l/h) 9000
outlet/inlet hose adapter 3/4’-3/2’
strainer surface m2
suitable for ponds with fish 4m³
suitable for decorative ponds 8m³
power fo uv-c 11w
filter volume in litres 8l

Model CPF-10000
dimensions in mm(l*w*h) 380*380*520
max flow-through(l/h) 10000
outlet/inlet hose adapter 3/4’-3/2’
strainer surface 20m2
suitable for ponds with fish 6m³
suitable for decorative ponds 12m³
power fo uv-c 11w
filter volume in litres 12l

Model CPF-15000
dimensions in mm(l*w*h) 380*380*730
max flow-through(l/h) 10000
outlet/inlet hose adapter 3/4’-3/2’
strainer surface 40m2
suitable for ponds with fish 10m³
suitable for decorative ponds 30m³
power fo uv-c 18w
filter volume in litres 20l
