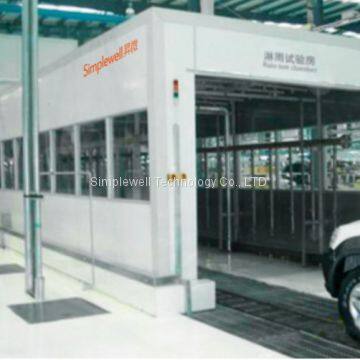

High low temperature environmental chamber (Sunlight + Barrate )

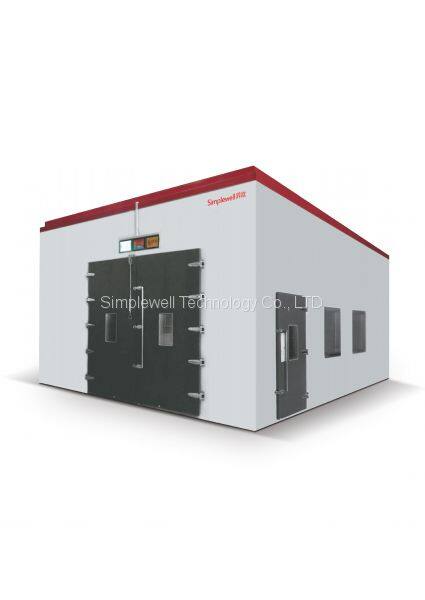

Drive-in vehicle test chamber, temperature chamber for vehicles, temperature and climatic test chamber

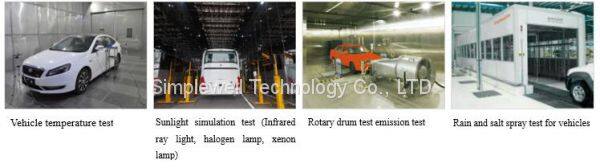

Application of vehicle environmental test chamber
Windscreen defrosting and demisting tests for M1 category vehicles
Windscreen wiper and washer property tests
Cold start tests for M1 category vehicles and engineers
Air conditioning system tests for M1 category vehicles
Property tests for small-size refrigerated trucks
Environmental tests for M1 category vehicles, small-size trucks, special purpose motor vehicles, motorcycles, engineers and components.
Patent
The drive-in vehicle test chamber attained a patent (No. CN103816947B) for its constant temperature and humidity design and air duct structure. Non-uniform heating will directly influence the final results of tests, like sunlight tests and rotary drum test, the testing chamber fixes this problem.
Standards
GB2423.1-89 (IEC68-2-1) Environmental test methods for Military equipment- low temperature test
GB2423.2-89 (IEC68-2-2) Environmental testing-part 2: Test Methods-tests B: Dry heat
GB2423.3-93 (IEC68-2-3) Basic environmental testing procedures for electric and electronic products- test Ca: Damp heat. Steady state
GB2423.4-93 (IEC68-2-30) Basic Environmental testing procedures for electric and electronic products- test Db: Damp heat. Cyclic GJB360.8-87 (MIL-STD-202f) test methods for electronic and electrical component parts-life test (at elevated ambient temperature)
GBJ150.3-86 (MIL-STD-810D) environmental test methods for military equipment -high temperature test
GBJ150.4-86 (MIL-STD-810D) environmental test methods for military equipment- low temperature test
GJB150.9-93 (MIL-STD-810D): Damp heat test (If there is a require for moisture)
GB11555-1994: Motor vehicles-windshield demisters-performance requirements and test method
GB11556-1994: Motor vehicles-windshield defrosters-performance requirements and test method
GB11085-1994: Motor vehicles- car windshield wipers-performance requirements and test method
GB/T 12535-1990: Motor vehicles-starting performance-test method
GB/T 12782-1991: Motor vehicles-heat performance-test method
QC/T 449-2000: Insulation truck-refrigerated truck-performance and test method
IEC 68-2-1 Test A: Cold (GB2423.1-2001 test A: low temperature test method)
IEC 68-2-2 Test B: Dry heat (GB2423.2-2001 test B: low temperature test method)
IEC 68-2-78 test cab: constant moisture and heat test
(GB/T2423.3-1993 test B: constant moisture and heat test)
IEC 68-2-30 test Db: Alternating moisture and heat rest
(GB/T2423.4-1993 test B: Alternating moisture and heat test)
GJB150.3-1986 (MIL-STD 810D): High temperature test
GJB150.4-1986 (MIL-STD 810D): Low temperature test
GJB360.8-87(MIL-STD.202F): Highly accelerated life testing (High temperature)
GJB150.9-93 (MIL-STD-810D): Heat and moisture test
ES92101-00: Passenger vehicle-head lamp-performance requirements and moisture test
GB11555-2009: Motor vehicles-windshield demisting and defrosting systems-performance requirements and test method vehicle cold start test
Technical parameters of vehicle environmental test chamber
Temperature range |
-40℃ to +110℃ |
Temperature fluctuation |
≤±0.5℃ |
Temperature deviation |
≤±2.0℃ |
Temperature uniformity |
≤2.0℃ |
Heat-up time |
+20℃ to +110℃≤150Min |
Cool-down time |
+20℃ to -40℃≤120Min |

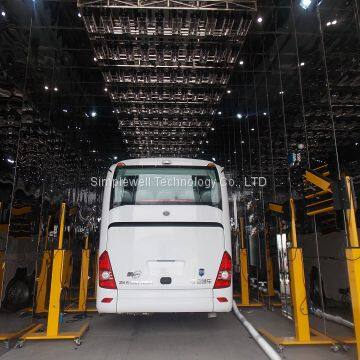

Gallery
Cases
Through more than 20 years of hard work, we have established friendly relationship with customers both at home and abroad. Some of them are well-know companies and organizations, like SGS, SONY, TUV AND FORD, etc.
