CE approved 3.0 M3 Air purifier materials test system, Air purifier and materials test machine

Air purifier and materials test system

VOC testing service, Formaldehyde testing equipment, Formaldehyde Gas test kit

This testing system simulates the indoor environment and is significant tool to test and decide the performance of indoor air purifier. This testing chamber is made from stainless steel plates and the internal surface is covered with low-adsorption film, thus ensuring the majority of hazardous gas is absorbed by chamber.

The entire air purifier test system is easy to operate and possesses good sealing and high reliability, applicable for test purifiers of formaldehyde, particles, VOC, Ozone, oxy-nitride, oxy-sulfide, ammonia gas and more.

Technological innovation

In actual use, the stainless steel is not an ideal material for manufacturing test chamber for it will adsorb some of gas and affect the final test results. Simplewell finds an innovative solution and covers the stainless steel with a low-adsorption film, reducing the absorption capacity of the stainless steel. At the same time, excellent properties of stainless steel are preserved.

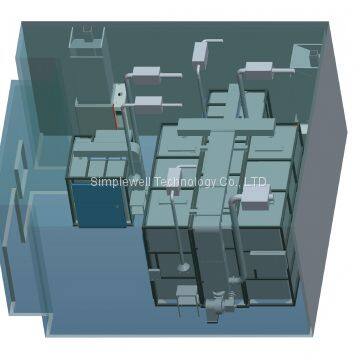

Main parts of material testing system

A.    Climate chamber

The climate chamber provides a thermostatic and clean environment, conditioning the temperature and ensuring the test stability. The air jacket helps to control the temperature, humidity and cleanliness in the climate chamber, indirectly adjusting the environment in testing chamber. Buffer room (Optional): operators/instruments/maintenance.

Temperature control system: Air jacket

Discharging system: Environmental protection

Control system: Control and monitor of air jacket

Door: High toughness and good sealing

B.       Test chamber (1 set of 30M³ chamber: W3500*H2500*3400MM)

C.       Test chamber (2 sets of 3M³ chamber:W1400*H1500*D1400MM)

D.      Test chamber (2 sets of 1M³ chamber: W1000*H1000*D1000MM)

E.     Control system

The control system consists two parts, one part for control the entire test equipment and the other part for computer centralized monitoring. Plus, the monitoring part is optional.

F.     Reactor and tester (Optional)

1.      Cigarettes and particles.

2.      Formaldehyde and methylbenzene.

Distinguished advantage

The surface treatment technology of this testing system won a patent (No.:ZL201210049393.6) in China and also applied for patent in Europe, the US and Japan.

Thanks to the superior properties, this air purifier testing system is widely used in man places.

Technical parameters

Gallery

Cases

Through more than 20 years of hard work, we have established friendly relationship with customers both at home and abroad. Some of them are well-know companies and organizations, like SGS, SONY, TUV AND FORD, etc.

Any doubt or some requirements checking, pls contact with us:
