Two Side Wood Thicknesser
Model:W0109

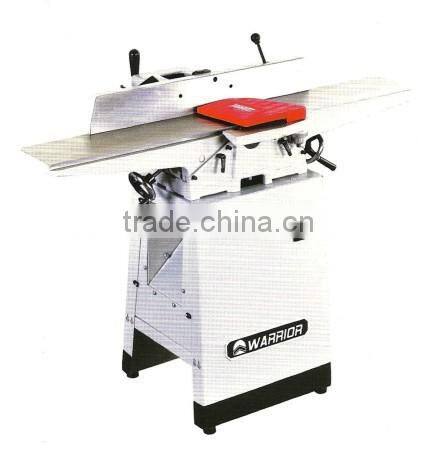

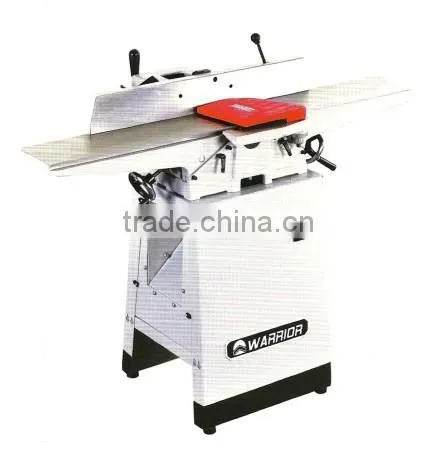

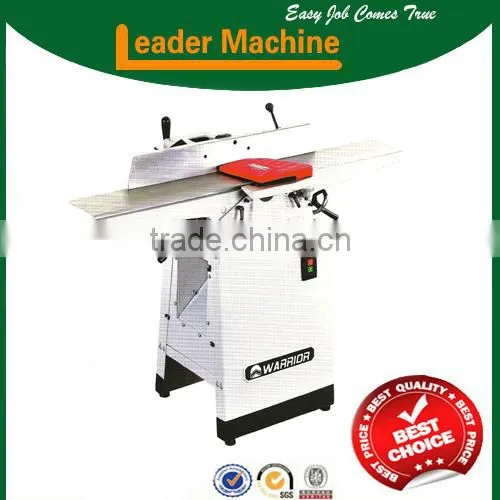

6" Ordinary Jointer
| motor | 1HP(750w) | |
| cutting capacity | width | 153mm |
| depth | 12.7mm max | |
| rabbeting capacity | 12.7mm max | |
| cutterhead | speed | 4400rpm 13200cpm |
| number of knives | 3 | |
| diameter | 61mm | |
| table | length | 1210mm |
| length of infeed table | 700mm | |
| length of outfeed table | 590mm | |
| width | 255mm | |
| height from floor | 820mm | |
| fence | size | 740*98mm |
| tilt in and out | 45° | |
| positive stops | 90°,45° in and out | |
| packing infromation | packing dimensions(L*W*H) | 1245*495*275mm |
| gross weight | 106kg | |
| QT/20 feet container | 150pcs | |
1.Infeed table raised and lowered by Handwheel for precision table adjustment

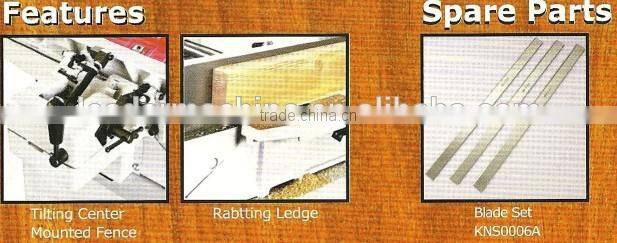

2.Central mounted fence for maximum stock support
3.Infeed table features cast-iron support ledge for rabbeting operations
4.Spring loaded front blade guard and fixed real cutterhead guard for maximum protection
5.Dust chute with 4 dust port for efficient dust/chip collection
6.Close-up Ladder-shaped stand with rubber feet for easy assembly and great stability
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
