Woodworking Thicknesser
Model:W0110

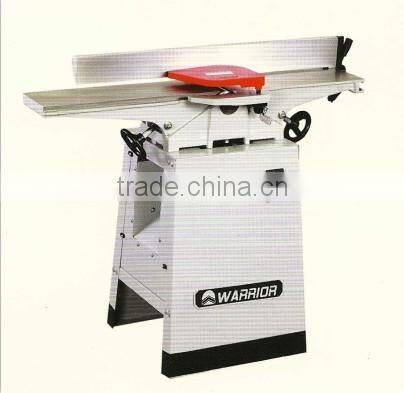

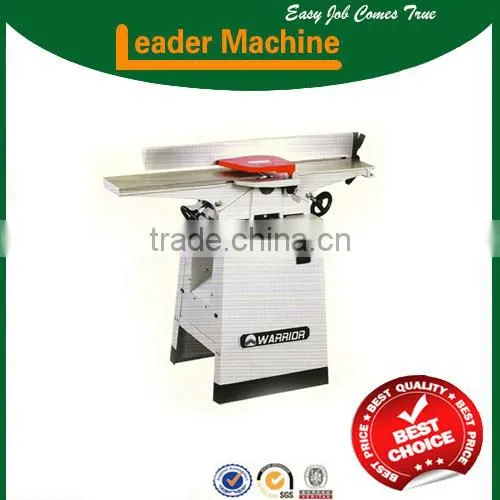

6" Economical Jointer
| motor | 1HP(750W) | |
| cutting capacity | width | 6"(153mm) |
| depth | 1/2"(12.7mm max) | |
| rabbeting capacity | 1/2"(12.7mm max) | |
| cutterhead | speed | 440RPM 13200CPM |
| number of knives | 3 | |
| diameter | 2-2/5"(61mm) | |
| table | length | 1015mm |
| length of infeed table | 595mm | |
| length of outfeed table | 535mm | |
| width | 245mm | |
| height from floor | 810mm | |
| fence | size | 875*98mm |
| tilt in and out | 45° | |
| positive stops | 90° 45° in and out | |
| packing information | packing dimensions(L*M*H) | 1140*495*275mm |
| gross weight | 84kg | |
| QT/20 feet container | 198pcs |

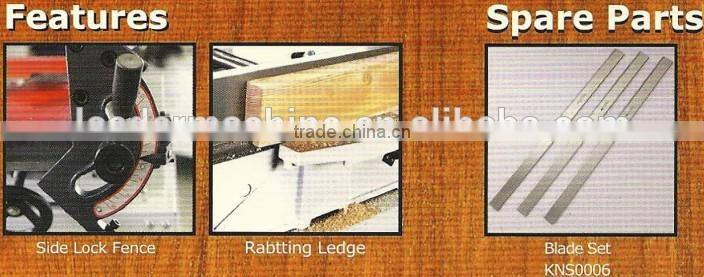

1.Infeed and out feed tables are made of precision ground cast iron.
2.Side fence tilting locker for easy access and quick action.
3.Close-up Ladder-shaped stand with rubber feet for easy assembly and great stability.
4.Central mounted two-way tilting fence with positive stops at 45° and 90°.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
