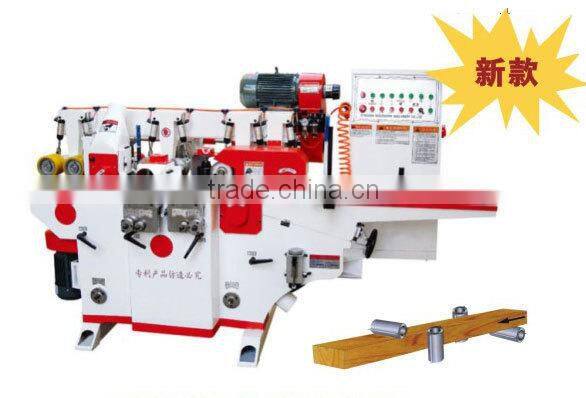

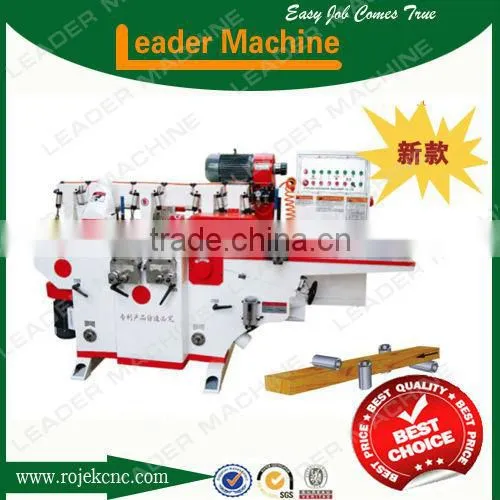

4013GR CE Certification Woodworking Four Sided Planer Moulder
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | 4013GR | Voltage | 220v | |
| Power(W) | 13270w | Weight | 1300kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Woodworking Four Sided Planer / Four Sided Moulder
Model: 4013GR
| Number of knives | 4 |
| Processing width | 20-130mm |
| Processing thickness | 8-100mm |
| Feeding speed | 5-20m/min |
| Feeding power | 1.5kw |
| Knife speed | 6000r/min |
| Bottom knife and left knife motor power | 2.2kw, 3kw |
| Upper knife motor power | 4kw |
| Right knife motor power | 2.2kw |
| Cross beam lifting and lowering power | 0.37kw |
| Total power | 13.27kw |
| Max. cutting circle | 115mm |
| Total weight | 1300kg |
Main characteristics in product:
1. Each main shaft adopts independent motor to drive, features strong cutting force.
2. Spindle adjustment integrates at central or front side, features easy operation.
3. Galvanized work table features superior abrasion resistance.
4. Active roller below improves feeding efficiency.
5. Pneumatic pressing feeding roller section by section adjusts for pressing force; It is in favor of smooth feed-in of different thicknesses of timber.
6. It is equipped with world-class electrical components, features superior stability.
(We can customize the Four-Side Moulder with 6 spindles, the processing width can reach 300mm, and the
processing thickness can reach 200mm. )
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
