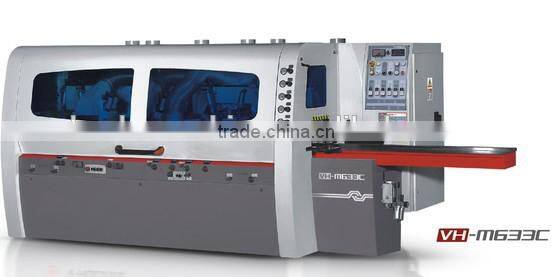

VH-M633C CE Certification Four Side Moulder & Wooden Cabinet Door Making Machine
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4013GR CE Certification Woodworking Four Sided Planer MoulderUS$ 1 - 1MOQ: 1 Unit -
MB5013ER CE Certification Wood Planer Four Side MoulderUS$ 1 - 1MOQ: 1 Unit
-
MB5013HR CE Certification Four Side Moulder For FloorUS$ 1 - 1MOQ: 1 Unit
-
W0201 CE Certification Wood ThicknesserUS$ 1 - 1MOQ: 10 Units
-
W0202 CE Wood Thicknesser PlanerUS$ 1 - 1MOQ: 10 Units
Condition
New
Type
Four Side Moulder
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
VH-M633C
Voltage
220v
Power(W)
90250w
Dimension(L*W*H)
4560*1725*1735mm
Weight
4600kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Four Side Moulder & Wooden Cabinet Door Making Machine
Model: VH-M633C
Product Description

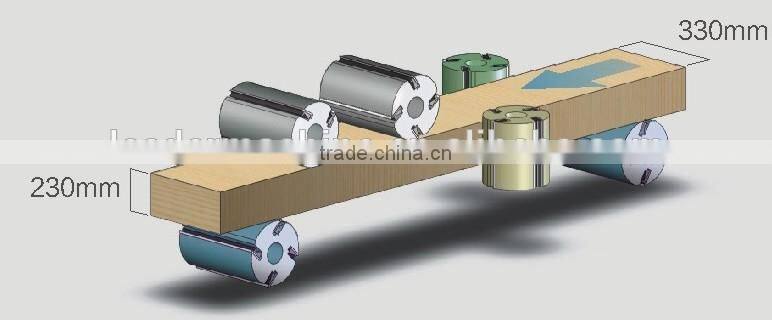

| Machine parameter | working width | 25-330mm |
| working thickness | 8-230mm | |
| working length | 1970mm | |
| feeding speed | 7-28m/min | |
| main shaft diameter | 40mm | |
| main shaft revolution | 6000r/min | |
| pneumatic source pressure | 0.6Mpa | |
| Motor power | 1st lower shaft | 15KW/20HP |
| 1st upper shaft | 15KW/20HP | |
| right vertical shaft | 11KW/15HP | |
| left vertical shaft | 11KW/15HP | |
| 2nd upper shaft | 15KW/20HP | |
| 2nd lower shaft | 15KW/20HP | |
| feeding beam lifting | 0.75KW/1HP | |
| feeding motor | 7.5KW/10HP | |
| top spindle lifting motor | 0.37KW/0.5HP | |
| total power | 90.25KW/121HP | |
| Cutter diameter | 1st lower shaft | 125mm |
| 1st upper shaft | 125-180mm | |
| right vertical shaft | 125-180mm | |
| left vertical shaft | 125-180mm | |
| 2nd upper shaft | 125-180mm | |
| 2nd lower shaft | 125-180mm | |
| Remarks | feeding wheel diameter | 140mm |
| Physical dimension(L*W*H) | 4560*1725*1735mm | |
| dust outlet diameter | 140mm | |
| net weight | 4600kg |
Standard Configuration
1.Step-less feeding system, speed ranges from 7-28m/min.
2.Independent motor drive each main spindle and makes stronger cutting force.

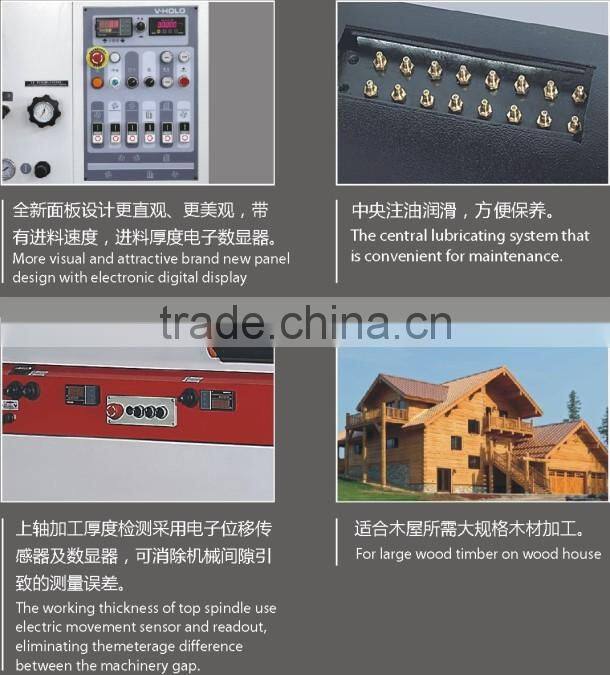

3.One concentate adjustment control panel in front of machine to make operation easy.
4.Hard chromed working table with perfect performance of wear resistance.
5.Bottom driving roller on the working table makes feeding easy.
6.Centralized lubrication system, make for easy operating.
7.Fit on qualified brand electrical element with stability performance.
8.Top spindle equipped with support device to promote hardness performance of main top spindles.
9.With full protection safety hood to avoid saw dust flying and noise, and offer safety protection of operator

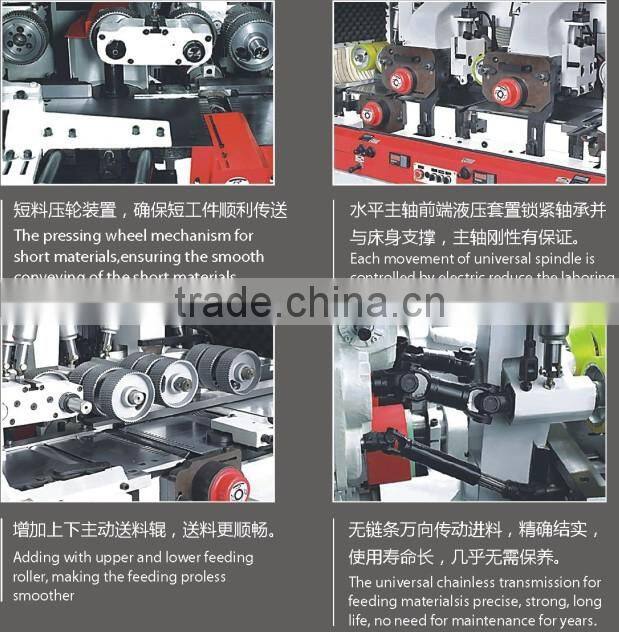

10.Air cylinder controlled hold-down feed rollers, to be adjusted subsections and make for unblocked feeding when processing wood pieces with different thickness.
11.With short feeding device to promote performance of unblocked feeding of short pieces.
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
