VH-M521C CE Certification Four Sides Moulder/Wood Planer
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VH-M621C Woodworking Four Side PlanerUS$ 1 - 1MOQ: 1 Unit -
VH-M621F Heavy Duty Four Side MoulderUS$ 1 - 1MOQ: 1 Unit
-
VH-M623C CE Certification 4 Side Moulder&PlanerUS$ 1 - 1MOQ: 1 Unit
-
VH-M633C CE Certification Four Side Moulder & Wooden Cabinet Door Making MachineUS$ 1 - 1MOQ: 1 Unit
-
4013GR CE Certification Woodworking Four Sided Planer MoulderUS$ 1 - 1MOQ: 1 Unit
Condition
New
Type
Four Side Moulder
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
VH-M521C
Voltage
220v
Power(W)
34250w
Dimension(L*W*H)
3416*1462*1776mm
Weight
2800kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

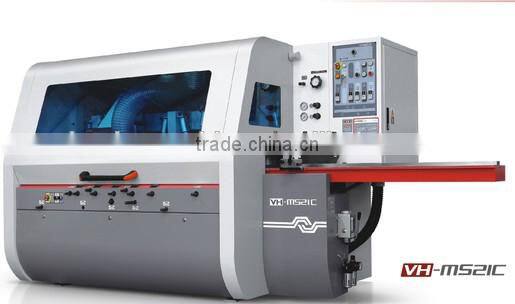

Four Side Moulder/Wood Planer
Model: VH-M521C
Product Description

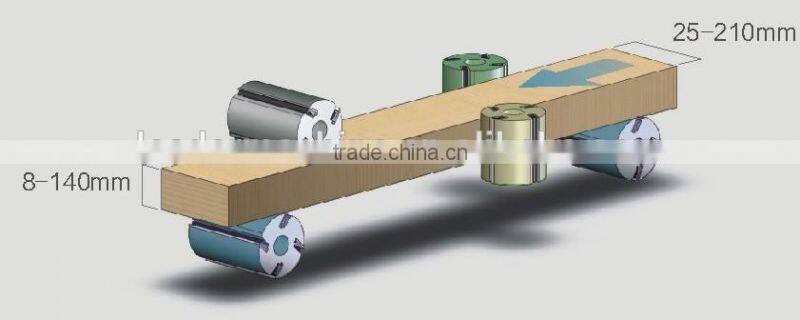

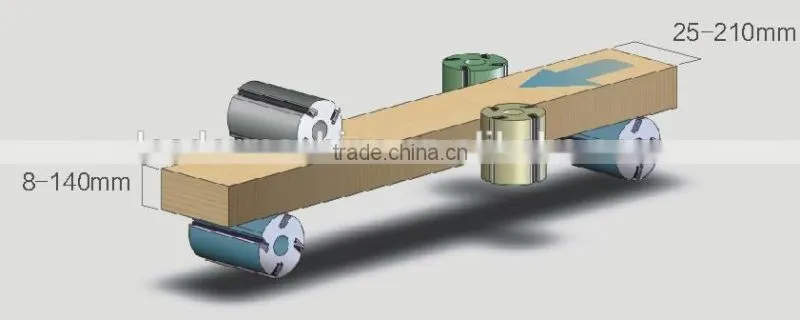

| Machine parameter | working width | 25-210mm |
| working thickness | 8-140mm | |
| working length | 1800mm | |
| feeding speed | 7-28m/min | |
| main shaft diameter | 40mm | |
| main shaft revolution | 6000r/min | |
| pneumatic source pressure | 0.6Mpa | |
| Motor power | 1st lower shaft | 5.5KW/7.5HP |
| 1st upper shaft | 7.5KW/10HP | |
| right vertical shaft | 5.5KW/7.5HP | |
| left vertical shaft | 5.5KW/7.5HP | |
| 2nd lower shaft | 5.5KW/7.5HP | |
| feeding beam lifting | 0.75KW/1HP | |
| feeding motor | 4KW/5.5HP | |
| total power | 34.25KW/46.5HP | |
| Cutter diameter | right vertical shaft | 125-180mm |
| left vertical shaft | 125-180mm | |
| 1st lower shaft | 125mm | |
| 1st upper shaft | 125-180mm | |
| 2nd lower shaft | 125-180mm | |
| Remarks | feeding wheel diameter | 140mm |
| Physical dimension(L*W*H) | 3416*1462*1776mm | |
| dust outlet diameter | 140mm | |
| net weight | 2800kg |
Standard Configuration
1.Step-less feeding system,speed ranges from 7-28m/min.
2.Independent motor drive each main spindle and makes stronger cutting force.

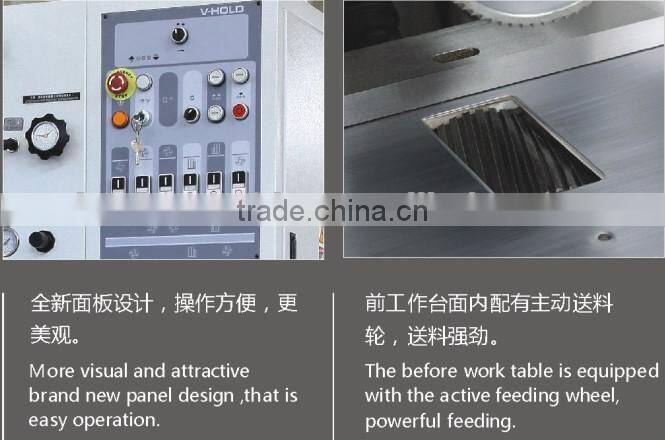

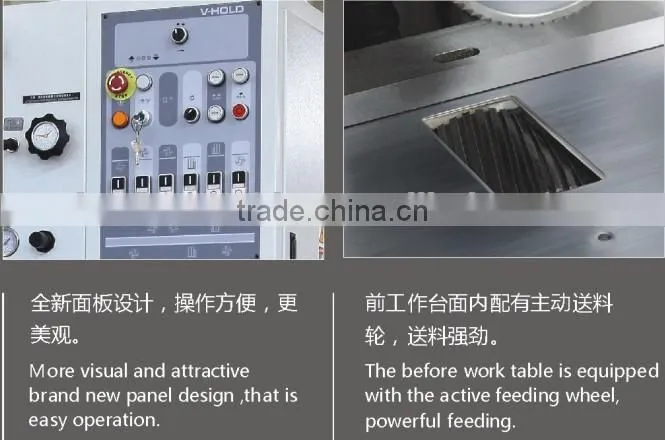

3.One concentrate adjustment control panel in front of machine to make operation easy.
4.Hard chromed working table with perfect performance of wear resitance.
5.Bottom driving roller on the working table makes feeding easy.
6.Fit on qualified brand electrical element with stability performance.
7.With full protection safety hood to avoid saw dust flying and noise, and offer safety protection of operator.
8.Air cylinder controlled hold-down feed rollers,to be adjusted subsections and make for unblocked feeding when processing wood pieces with different thickness.

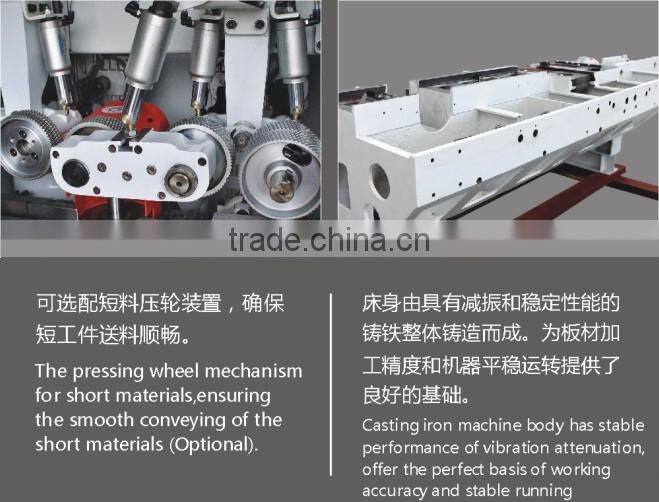

9.With short feeding device to promote performance of unblocked feeding of short pieces.
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
