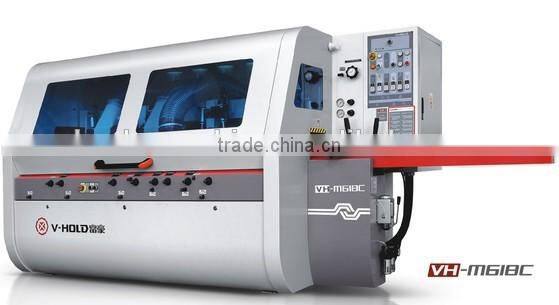

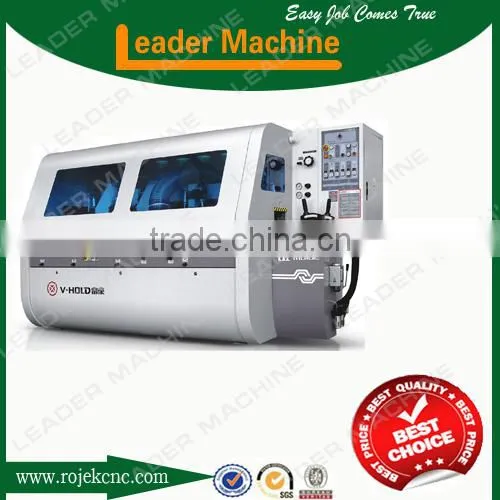

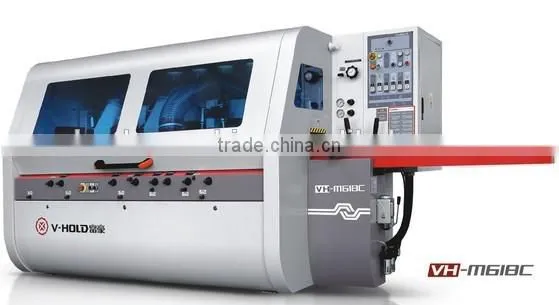

VH-M618C CE Certification Four Side Moulder
US$ 1 - 1
/ Unit
1 Unit(Min. Order)
- QINGDAO
- T/T
You May Like
-
VH-M521C CE Certification Four Sides Moulder/Wood Planer
-
VH-M621C Woodworking Four Side Planer
-
VH-M621F Heavy Duty Four Side Moulder
-
VH-M623C CE Certification 4 Side Moulder&Planer
-
VH-M633C CE Certification Four Side Moulder & Wooden Cabinet Door Making Machine
-
4013GR CE Certification Woodworking Four Sided Planer Moulder
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | VH-M618C | Voltage | 220v | |
| Power(W) | 30550w | Dimension(L*W*H) | 3703*1405*1765mm | |
| Weight | 2700kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
4 Side Moulder
Model: VH-M618C
Product Description
| Machine parameter | working width | 25-180mm |
| working thickness | 8-120mm | |
| working length | 1800mm | |
| feeding speed | 5-24m/min | |
| main shaft diameter | 40mm | |
| main shaft revolution | 6000r/min | |
| pneumatic source pressure | 0.7Mpa | |
| Motor power | 1st lower shaft | 5.5KW/7.5HP |
| right vertical shaft | 4KW/5.5HP | |
| left vertical shaft | 4KW/5.5HP | |
| 1st upper shaft | 5.5KW/7.5HP | |
| 2nd lower shaft | 4KW/5.5HP | |
| 2nd upper shaft | 4KW/5.5HP | |
| feeding beam lifting | 0.55KW/0.75HP | |
| feeding motor | 3KW/4HP | |
| total power | 30.55KW/41.5HP | |
| Cutter diameter | 1st lower shaft | 125mm |
| right vertical shaft | 125-160mm | |
| left vertical shaft | 125-160mm | |
| 1st upper shaft | 125-160mm | |
| 2nd lower shaft | 125-160mm | |
| 2nd upper shaft | 125-160mm | |
| Remarks | feeding wheel diameter | 140mm |
| Physical dimension(L*W*H) | 3680*1400*1700mm | |
| dust outlet diameter | 140mm | |
| net weight | 2700kg |
Standard Configuration
1.This adopts step-less material feeding, material feeding speed ranges from 5m/min to 24m/min.
2.Each principal axis adopts independent drive to electric motor, features stronger cutoff force.

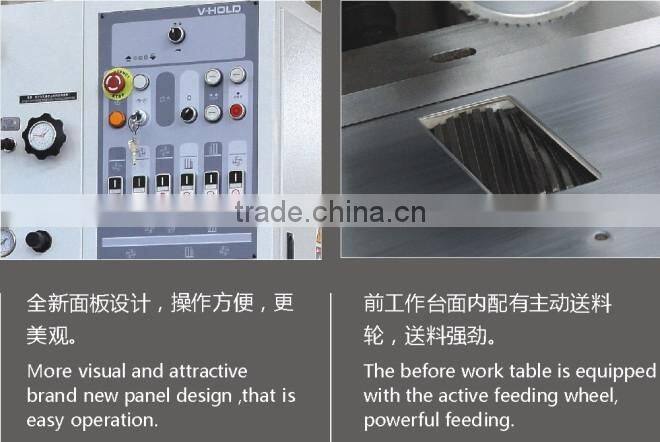

3.Adjusts for principal axis integrates at central or frontal side features easy operation.
4.Galvanized workstation features superior abrasion resistance.

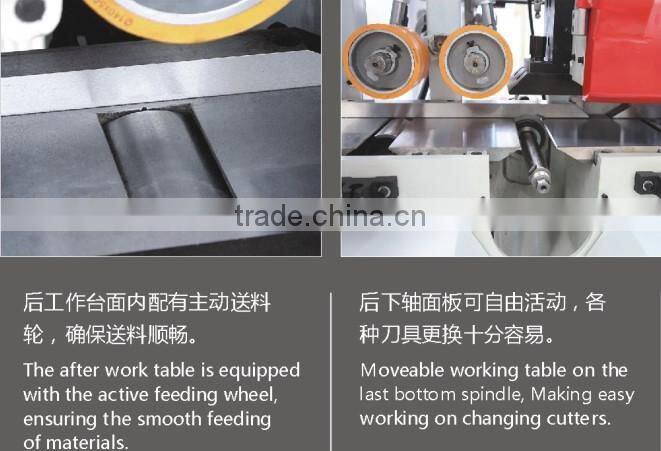

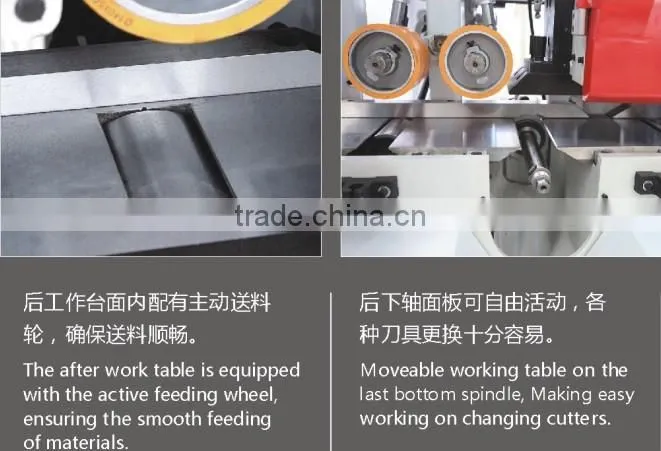

5.Active roller below improves feeding efficiency.
6.Equips with world-class electric element, features superior stability.
7.With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.
8.Pneumatic pressing feeding roller section by section adjusts for pressing force, it favors for smooth feed-in of different thicknesses of timber.
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
