Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Planer > VH-M516C CE Certification Woodworking Four Side Moulder
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VH-M618C CE Certification Four Side MoulderUS$ 1 - 1MOQ: 1 Unit -
VH-M521C CE Certification Four Sides Moulder/Wood PlanerUS$ 1 - 1MOQ: 1 Unit
-
VH-M621C Woodworking Four Side PlanerUS$ 1 - 1MOQ: 1 Unit
-
VH-M621F Heavy Duty Four Side MoulderUS$ 1 - 1MOQ: 1 Unit
-
VH-M623C CE Certification 4 Side Moulder&PlanerUS$ 1 - 1MOQ: 1 Unit
Condition
New
Type
Four Side Moulder
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
VH-M516C
Voltage
220v
Power(W)
20550w
Dimension(L*W*H)
3038*1405*1765mm
Weight
2400kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

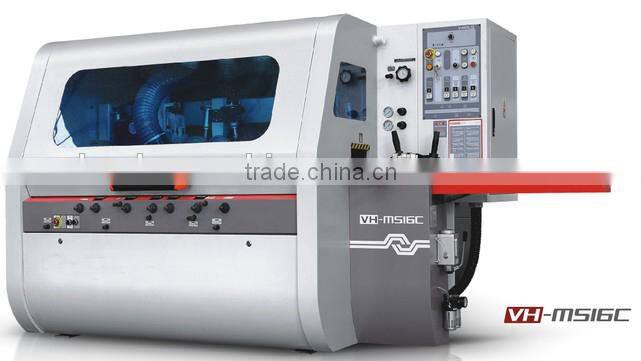

Woodworking Four Side Moulder
Model: VH-M516C
Product Description

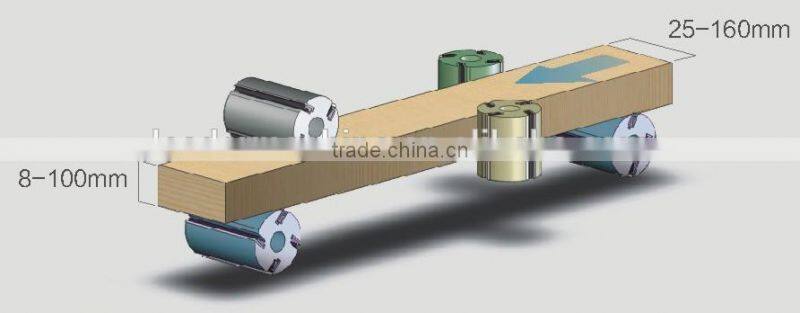

| Machine parameter | working width | 25-160mm |
| working thickness | 8-100mm | |
| working length | 1600mm | |
| feeding speed | 5-24m/min | |
| main shaft diameter | 40mm | |
| main shaft revolution | 6000r/min | |
| pneumatic source pressure | 0.7Mpa | |
| Motor power | 1st lower shaft | 4KW/5.5HP |
| right vertical shaft | 3KW/4HP | |
| left vertical shaft | 3KW/4HP | |
| 1st upper shaft | 4KW/5.5HP | |
| 2nd lower shaft | 3KW/4HP | |
| feeding beam lifting | 0.55KW/0.75HP | |
| feeding motor | 3KW/4HP | |
| total power | 20.55KW/28HP | |
| Cutter diameter | 1st lower shaft | 125mm |
| right vertical shaft | 125-160mm | |
| left vertical shaft | 125-160mm | |
| 1st upper shaft | 125-160mm | |
| 2nd upper shaft | 125-160mm | |
| 2nd lower shaft | 125-160mm | |
| Remarks | feeding wheel diameter | 140mm |
| Physical dimension(L*W*H) | 3000*1330*1700mm | |
| dust outlet diameter | 121mm | |
| net weight | 2400kg |
Standard Configuration
1.This adopts step-less material feeding, material feeding speed ranges from 5m/min to 24m/min.
2.Each principal axis adopts independent drive to electric motor, features stronger cutoff force.
3.Adjusts for principal axis integrates at central or frontal side features easy operation.
4.Galvanized workstation features superior abrasion resistance.

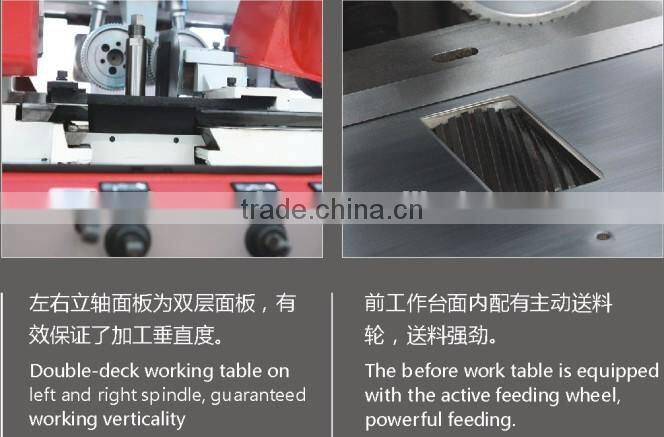

5.Active roller below improves feeding efficiency.
6.Equips with world-class electric element, features superior stability.
7.With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.

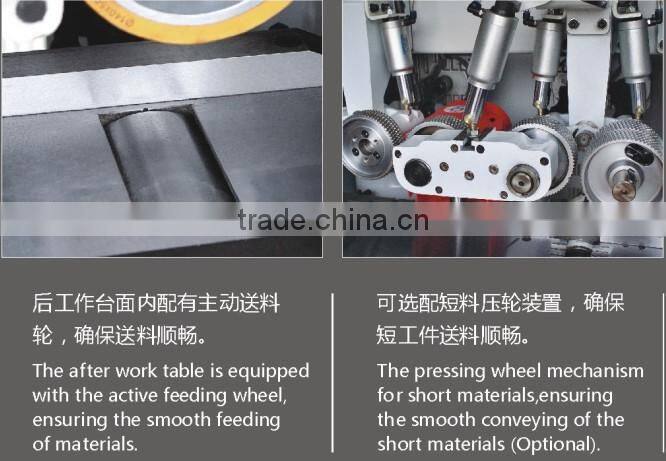

8.Pneumatic pressing feeding roller section by section adjusts for pressing force, it favors for smooth feed-in of different thicknesses of timber.
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
