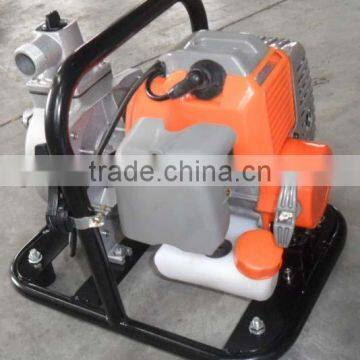

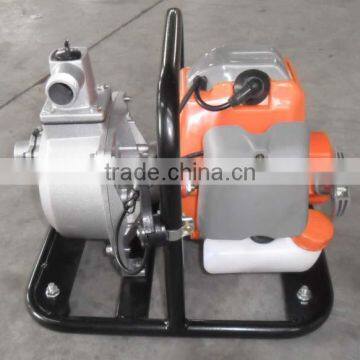

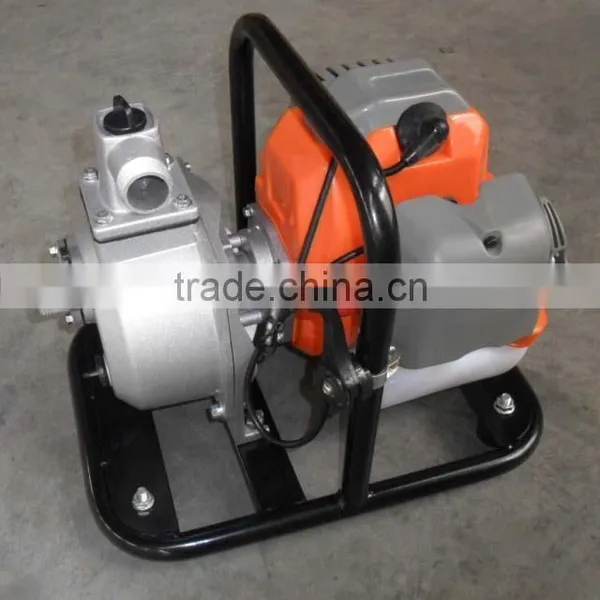

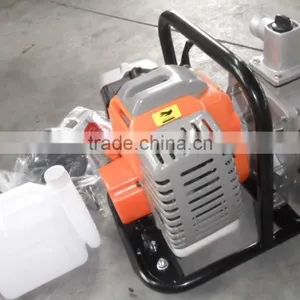

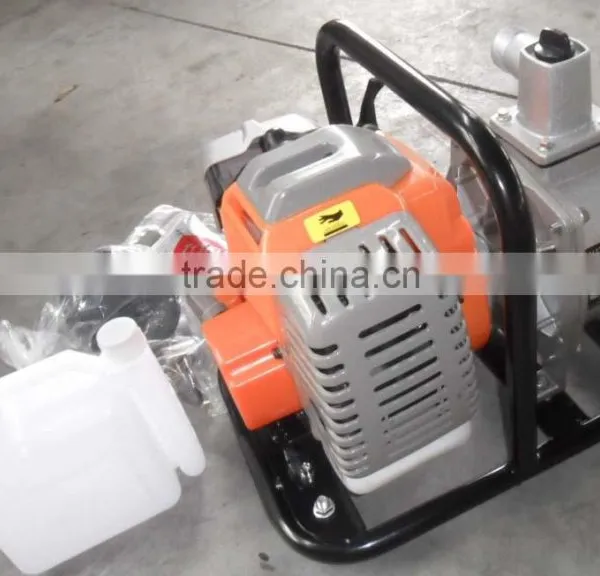

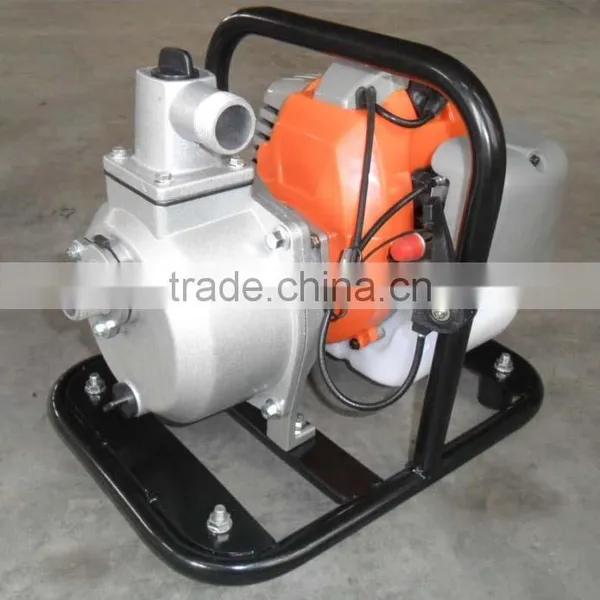

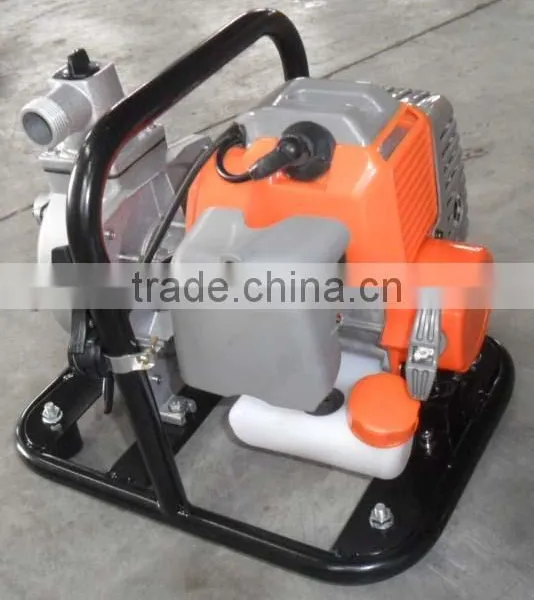

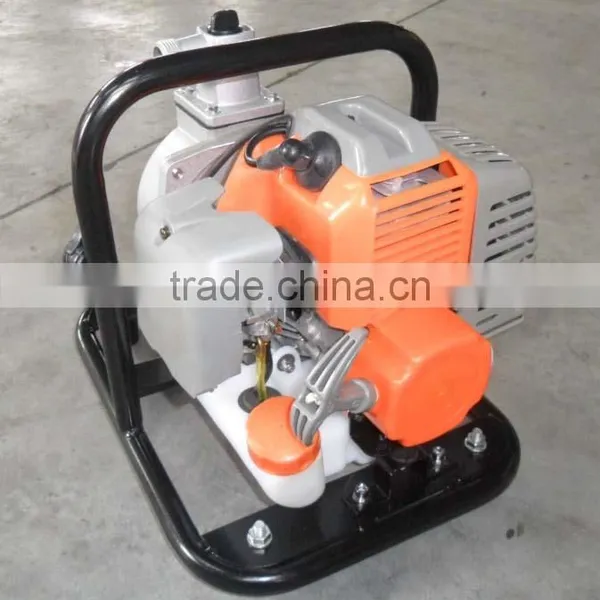

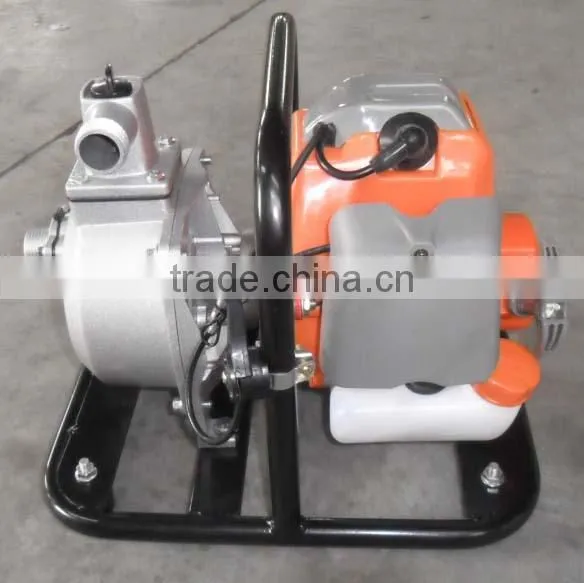

1inch small gasoline garden water pump by 1E40F gasoline mini pump
Featuer:
1. New design gasoline garden water pump
2. Easy to start, durable engine, high quality
3. Finally a Quality Pumping Solution is Available
4. Pump body made of light-weight but strong aluminum alloy
5. Cast iron volute and impeller
6. High-quality ceramic mechanical sealling
7. Max. pump lift of 22m, Max. suction of 7m

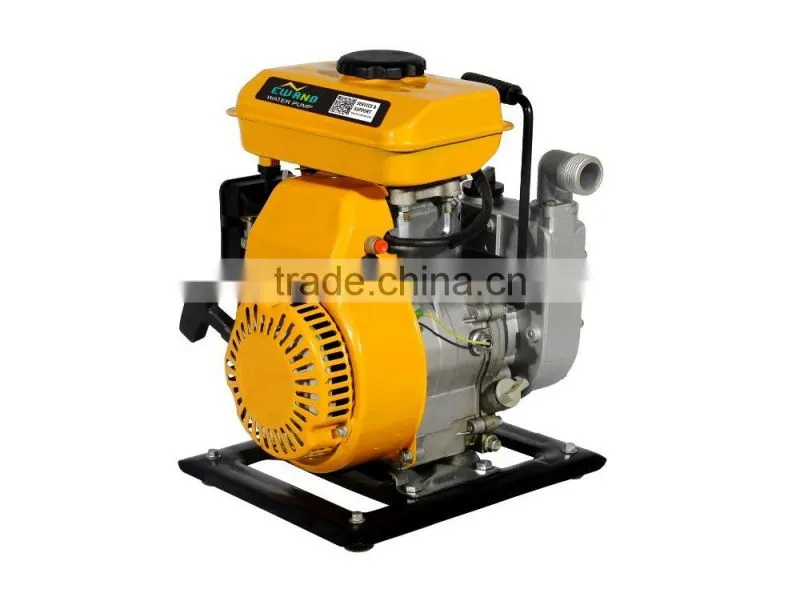

1inch small gasoline garden water pump by 1E40F gasoline mini pump
| Type | WP10A | WP10B | WP10C | WP10D | WP15A |
| Outlet Size(mm) | 25(1 inch) | 25(1 inch) | 25(1 inch) | 25 (1’) | 40 (1.5’) |
| Inlet size(mm) | 25(1 inch) | 25(1 inch) | 25(1 inch) | 25 (1’) | 40 (1.5’) |
| Speed (rpm) | 6500 | 6500 | 6500 | 3600 | 3600 |
| Displacement Q.max(m3/h) | 8 | 8 | 8 | 8 | 12 |
| Lift H.max(m) | 22 | 22 | 22 | 20 | 25 |
| Suction(m) | 7 | 7 | 7 | 4 | 4 |
| Engine Model | 1E40F-5 | 1E40F-5 | 139F | 152F | 154FA/P |
| Engine Type | Air-cooled,single cylinder,2 stroke | Air-cooled,single cylinder,4 stroke | |||
| Bore x Stroke(mm) | 40x34 | 40x34 | 39x30 | 52 x 46 | 54 x 46 |
| Displacement(cm3) | 43 | 43 | 35.8 | 98 | 105 |
| Compression Ratio | 7.7:1 | 7.7:1 | 8.0:1 | 5.5:1 | 6.0:1 |
| Max Power Output(HP/rmp) | 1.5/6500 | 1.5/6500 | 1.3/6500 | 2.5/3600 | 3/3600 |
| Max Torque(Nm/rpm) | 1.8/5000 | 1.8/5000 | * | 3.2/2600 | 3.8/2600 |
| Start Model | Recoil and hand -operated | ||||
| Air Cleaner | semi-dry | ||||
| Fuel Tank Capacity (L) | 1.2 | 1.2 | 0.7 | 1.3 | 1.3 |
| Fuel Consumption(g/Kw.h) | ≤610 | ≤610 | * | ≤450 | ≤450 |
| Oil Capacity(L) | / | / | 0.1 | 0.3 | 0.4 |
| Packing Dimensions (mm) | 390*300*340 | 390*300*340 | 390*300*340 | 360*300*385 | 360*300*385 |
| G.W/N.W(Kg) | 9/8 | 9/8 | 9/8 | 11/10 | 12/11 |

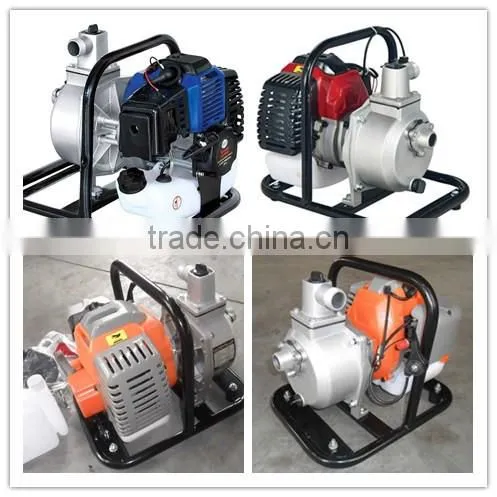

More types 1inch water pump
Taizhou Newland Machinery Co., Ltd is a professional supplier of gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer etc. Over 10 years OEM/ODM exporting experience to more than 50 couintries and area. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to be one of your best choice.
Show Room
Spare Parts testing
Quality control from the material and spare parts
Production
Every precedure must fit the standard
Every machine must be passed three strictly testing program
Ready Products tesing
Spot checking double guarantee qualified products for shipping
Warehouse
Carfully loading
Efficiency container space utilizing
Exact quantity
1.Q: What is the Trade terms? What’s the nearest port?
A: EXW, FOB, CFR, CIF.(Taizhou)
2.Q: What is your MOQ of this item?
A: 50 sets
3.Q: Are you manufactory or Trading Company?
A: We are trading company based on our own factory
in Zhejiang province, China
4.Q: Is it all right to make customer's own brand name
A: Sure, with your authorization of brand.
We have over 10 years OEM/ODM experience.
5.Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.
D/P for regular good reputation customers.
6.Q: How long is your warranty?
A: One year or 500hours (accord to whichever reach first) from Ex-Factory date.
7.Q: What is the delivery time?
A: 15~20 days after receiving your deposit or original L/C.
8.Q: What is your company production capacity?
A: 20000-30000 Sets per month against your orders
9.Q: Which engine type about your products?
A: 1-Cylinder;4-stroke,air-cooled gasoline engine
